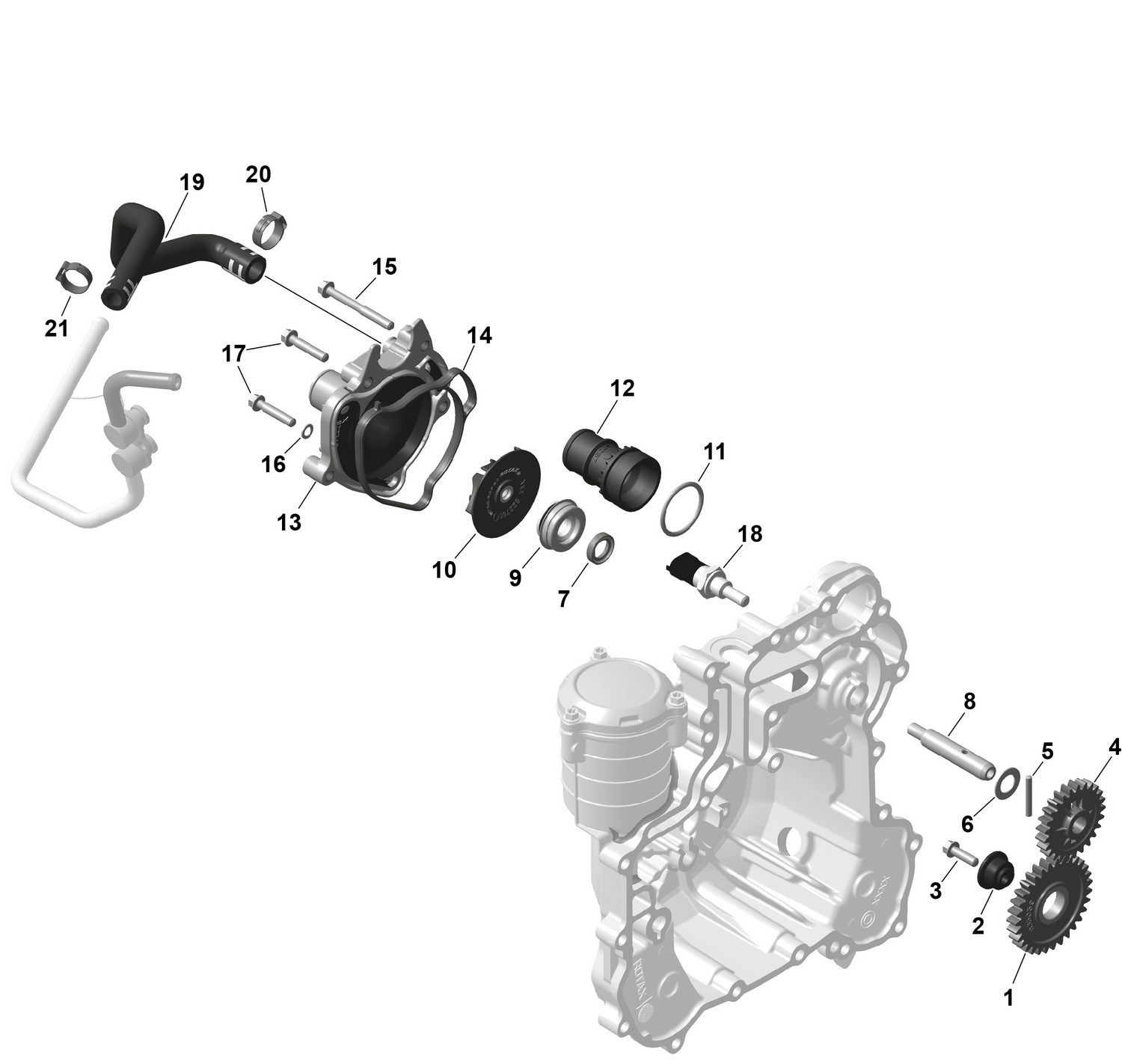

01- ROTAX - Engine Cooling
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420835067 | Idle Gear, 31 Teeth This part replaces 420835059. |
| 2 | 420947394 | Spacer |
| 3 | 420440207 | Torx Flange Screw M6 X 20 |
| 4 | 420835230 | Water Pump Gear |
| 5 | 420232431 | Needle Pin |
| 6 | 420827261 | Thrust Washer |
| 8 | 420820150 | Waterpump Shaft |
| 10 | 420822750 | Water Impeller |
| 11 | 420950896 | Water Pump Housing O-Ring This part replaces 420950893. |
| 12 | 420922157 | Thermostat Cover |
| 13 | 420822741 | Water Pump Housing |
| 15 | 420440702 | Torx Flange Screw M6 X 55 |
| 17 | 420440647 | Torx Flange Screw M6 X 30 |
| 18 | 278002895 | Temperature Sensor This part replaces 420222426. |
| 19 | 420822846 | Water Tube |
| 20 | 420853313 | Clamp |
