Parts Catalog

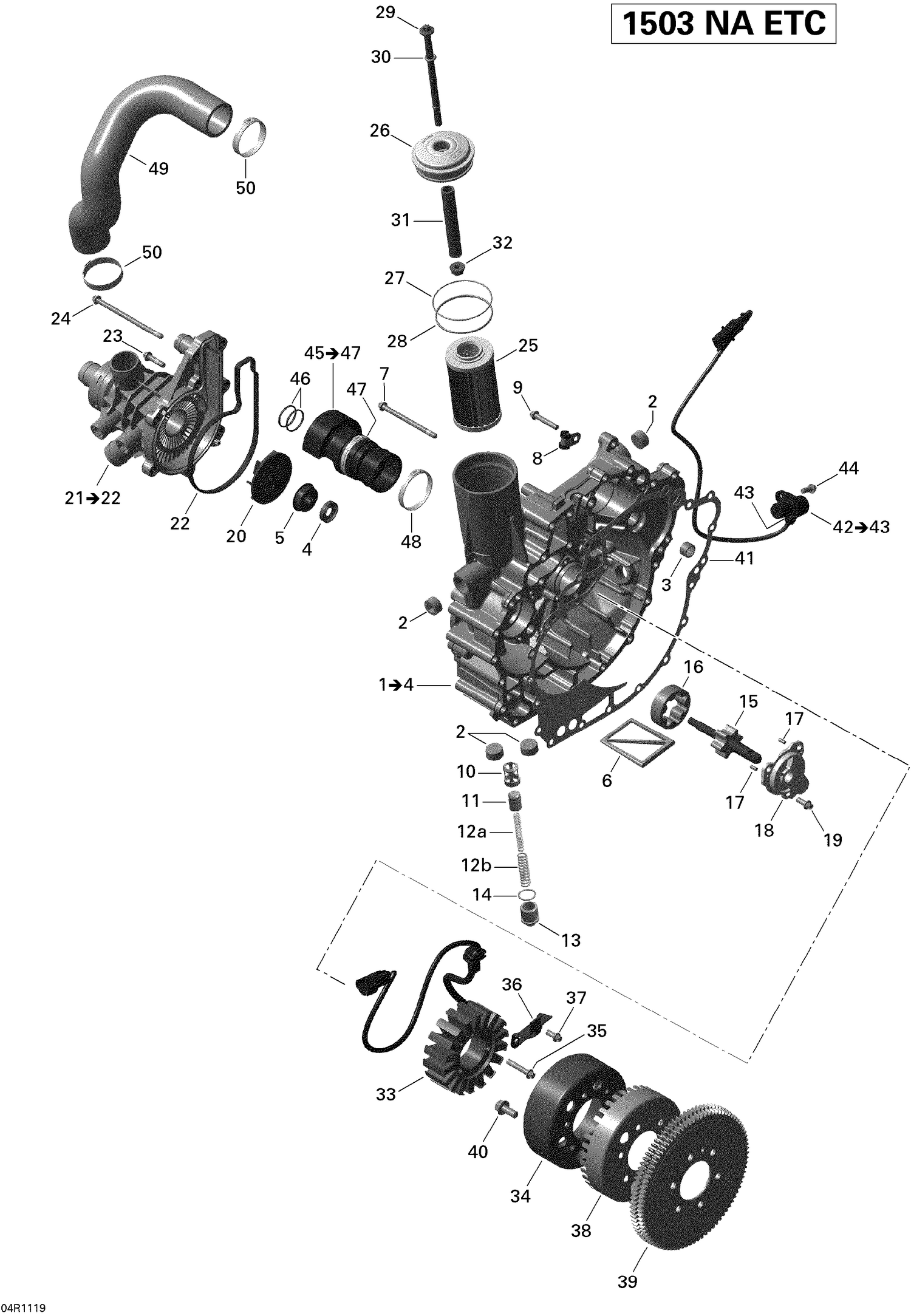

03- PTO Cover And Magneto

Parts (46)

Ref	Part Number	Description
2	420641317	Plug Screw M20 X 1.5
3	420232482	Needle Bushing This part replaces 420232480.
4	420650315	Oil Seal This part replaces 420650310.
5	420650371	Rotary Seal This part replaces 420650370.
6	420956950	Oil Sieve
7	420641228	Torx Flange Screw M6 X 85
8	420853414	Clamp
9	420641258	Torx Flange Screw M6 X 35
10	420256606	Valve Seat Sleeve
11	420256638	Piston Valve This part replaces 420256630.
12a	420939401	Compression Spring This part replaces 420939400.
12b	420939211	Compression Spring This part replaces 420939210.
13	420641052	Plug Screw M20 X 1.5
14	420230890	O-Ring
15	420837472	Pump Shaft Ass'y
16	420956675	Oil Pump Rotor 16 mm
17	420929070	Needle Pin
18	420811591	Oil Pump Cover This part replaces 420811590.
19	420641048	Torx Flange Screw M6 X 16
20	420922801	Impeller
22	420950840	Water Pump Housing Gasket
23	420641238	Torx Flange Screw M6 X 25
24	420641338	Torx Flange Screw M6 X 105
25	420956741	Oil Filter
26	420612081	Oil Filter Cover This part replaces 420612080.
27	420230923	O-Ring This part replaces 420230920.
28	420850500	O-Ring
29	420641104	Hex Screw M8 X 140.5 This part replaces 420641103.
30	420950860	O-Ring
31	420857229	Spacer
32	420842610	Hex. Nut M8
33	420889726	Stator Plate This part replaces 420889721.
34	420296900	Magneto Flywheel
35	420641258	Torx Flange Screw M6 X 35
36	420926300	Retaining Plate
37	420641048	Torx Flange Screw M6 X 16
38	420966851	Trigger Wheel This part replaces 420664082.
39	420835163	Starter Gear, 86 Teeth This part replaces 420835160.
40	295501162	Hex Screw This part replaces 420641016.
41	420931130	Timing Drive Cover Gasket (1603 NA)
43	420431580	O-Ring
44	420641048	Torx Flange Screw M6 X 16
46	420631612	O-Ring This part replaces 420631610.
47	420853023	Gear Clamp 46.8-50.0MM
48	420851653	Gear Clamp
49	420922828	Formed Hose This part replaces 420922825.
