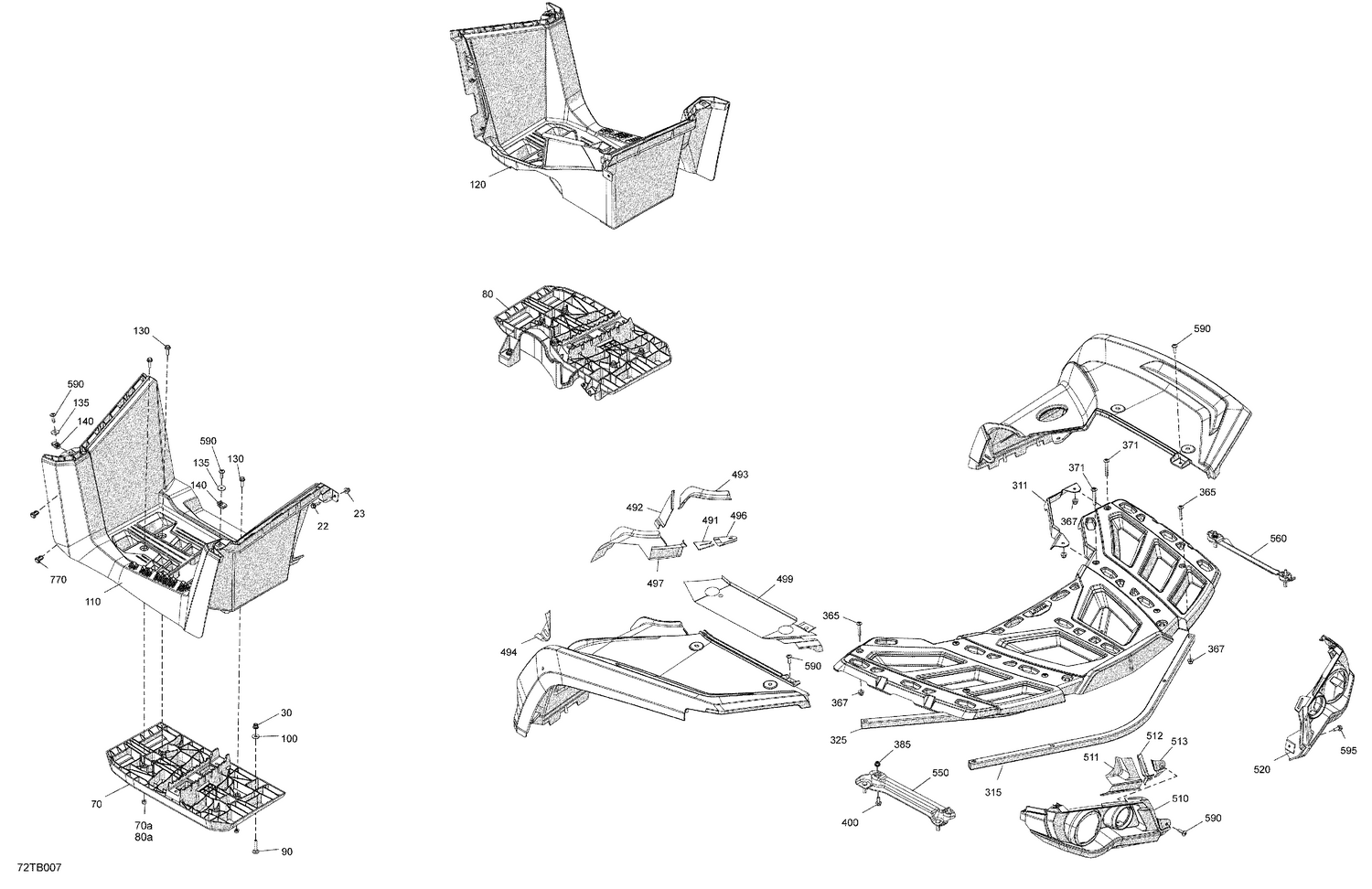

07- Body - Rear Section
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 22 | 207662054 | Hex. Flange Screw M6 X 20 |
| 23 | 233261434 | Flange Elastic Nut M6 |
| 30 | 233261434 | Flange Elastic Nut M6 |
| 70a | 232862412 | Square Nut M6 |
| 80a | 232862412 | Square Nut M6 |
| 90 | 207763554 | Carriage Bolt M6 X 35 |
| 100 | 234062410 | Flat Washer 6 mm |
| 110 | 705007040 | LH Step |
| 120 | 705007039 | RH Step |
| 130 | 207662054 | Hex. Flange Screw M6 X 20 |
| 135 | 224061201 | Flat Washer |
| 140 | 250100198 | Panel Nut M6 X 1.0 |
| 311 | 705013222 | ESD Bracket |
| 315 | 705016640 | Sectional Bent Tube |
| 325 | 705016641 | Sectional Bent Tube |
| 365 | 250000646 | Black, Torx Screw M6 X 35 |
| 367 | 233261434 | Flange Elastic Nut M6 |
| 371 | 235564054 | Screw-torx Button Head M6 X 40 |
| 385 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 400 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 491 | 707002456 | Heat Shield |
| 492 | 707002457 | Heat Shield |
| 493 | 707002458 | Heat Shield |
| 494 | 707002459 | Heat Shield |
| 496 | 707002461 | Heat Shield |
| 497 | 707002462 | Heat Shield |
| 499 | 707002464 | Heat Shield |
| 510 | 705006651 | LH Rear Facia |
| 511 | 707002103 | Heat Shield |
| 512 | 707002107 | Heat Shield |
| 513 | 707002594 | Heat Shield |
| 520 | 705006652 | RH Rear Facia |
| 550 | 705007277 | LH Support |
| 560 | 705007278 | RH Support |
| 590 | 250000722 | Torx Screw M6 X 20 |
| 595 | 207661654 | Hex. Flange Screw M6 X 16 |
