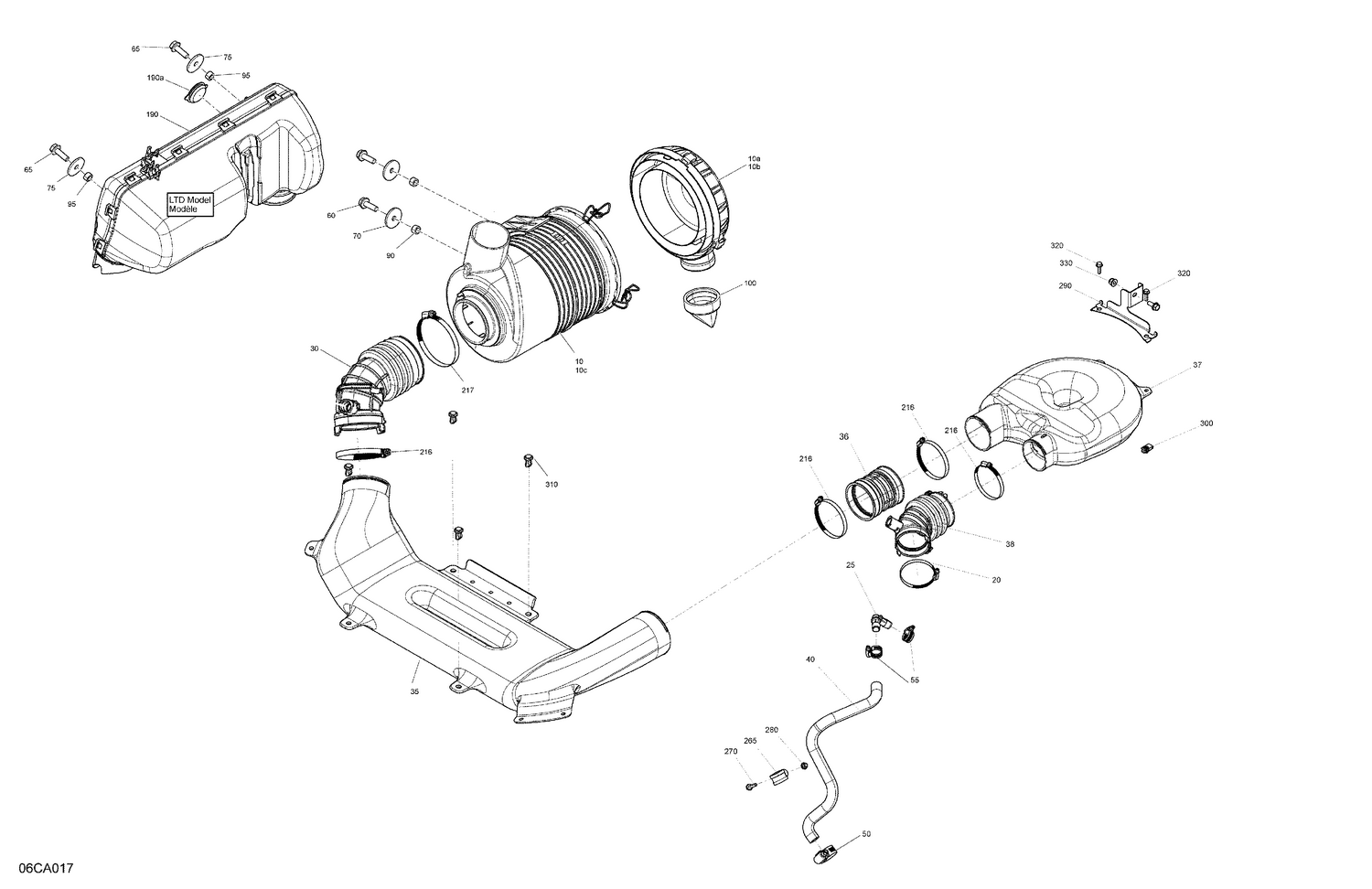

02- Engine - Air Intake
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 715900514 | O-Ring |
| 20 | 293650091 | Norma Clamp |
| 25 | 293710155 | Elbow Fitting 90 |
| 30 | 707800879 | Front Intake Duct |
| 35 | 707800836 | Central Intake Duct |
| 36 | 707800880 | Rear Intake Duct |
| 37 | 707800877 | Air Inlet Box |
| 38 | 707800837 | Rear Main Intake Duct |
| 40 | 707800890 | Crankcase Hose Formed |
| 50 | 293650173 | Tridon Gear Clamp |
| 55 | 293650173 | Tridon Gear Clamp |
| 60 | 207682534 | Hex. Flange Screw M8 X 25 |
| 65 | 207682534 | Hex. Flange Screw M8 X 25 |
| 70 | 250200158 | Flat Washer M8 |
| 75 | 250200158 | Flat Washer M8 |
| 90 | 277000980 | Bushing |
| 95 | 277000980 | Bushing |
| 100 | 715003114 | Duct Bill Valve |
| 190a | 293000125 | Plug |
| 216 | 293650096 | Norma Clamp |
| 217 | 293650096 | Norma Clamp |
| 265 | 709200036 | Hose Anchor |
| 270 | 207662544 | Hex. Flange Screw M6 X 25 |
| 280 | 233061414 | Hex. Flange Nut M6 |
| 290 | 707800940 | Support |
| 300 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 310 | 293150230 | Tuflok Plastic Rivet |
| 320 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 330 | 233281414 | Hex. Flange Elastic Nut M8 |
