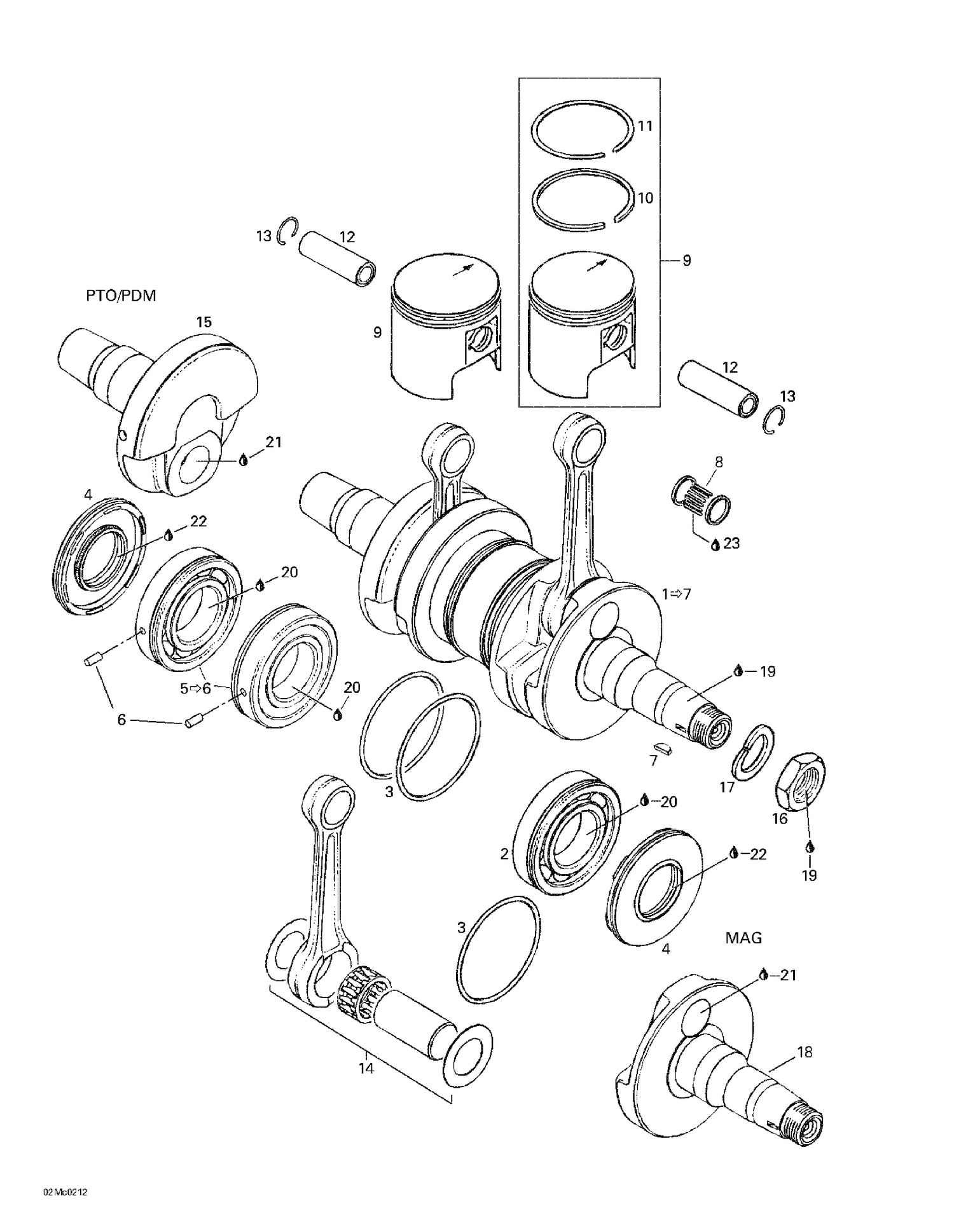

| Ref | Part Number | Description |
|---|
| 2 |
420832584 |
Bearing_Ball This part replaces 420832570. |
| 3 |
293300022 |
O-Ring, 64 mm X 2 mm |
| 4 |
420831952 |
Oil Seal This part replaces 290831952. |
| 6 |
420929972 |
Dowel Pin |
| 7 |
420246055 |
Woodruff Key |
| 8 |
420832325 |
NEEDLE BEARING - Call your local BRP dealership |
| 10 |
420915960 |
RING R 67.5 - Call your local BRP dealership |
| 11 |
420915845 |
RING L 67.5 - Call your local BRP dealership |
| 12 |
420916136 |
PISTON PIN - Call your local BRP dealership |
| 13 |
420945735 |
Piston Circlip |
| 14 |
420996334 |
Rod repair kit |
| 15 |
420818204 |
PTO Side Crankshaft |
| 16 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 17 |
420945759 |
Lock Washer, 22 mm |
| 18 |
420819010 |
MAG SIDE HALF-CRANK - Call your local BRP dealership |
| 19 |
293800060 |
Loctite 243, 10 ml |
| 20 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 21 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 22 |
413707000 |
Dow Corning 111, 150 g |
| 420915846 |
RING |
L 67.75 - Call your local BRP dealership 420915846 |
| 420915846 |
Segment |
L 67.75 - Appelez votre concessionnaire BRP local 420915846 |
| 420915847 |
RING |
L 68.0 - Call your local BRP dealership 420915847 |
| 420915847 |
Segment |
L 68.0 - Appelez votre concessionnaire BRP local 420915847 |
| 420915961 |
RING |
R 67.75 - Call your local BRP dealership 420915961 |
| 420915961 |
Segment |
R 67.75 - Appelez votre concessionnaire BRP local 420915961 |
| 420915962 |
RING |
R 68 - Call your local BRP dealership 420915962 |
| 420915962 |
Segment |
R 68 - Appelez votre concessionnaire BRP local 420915962 |
