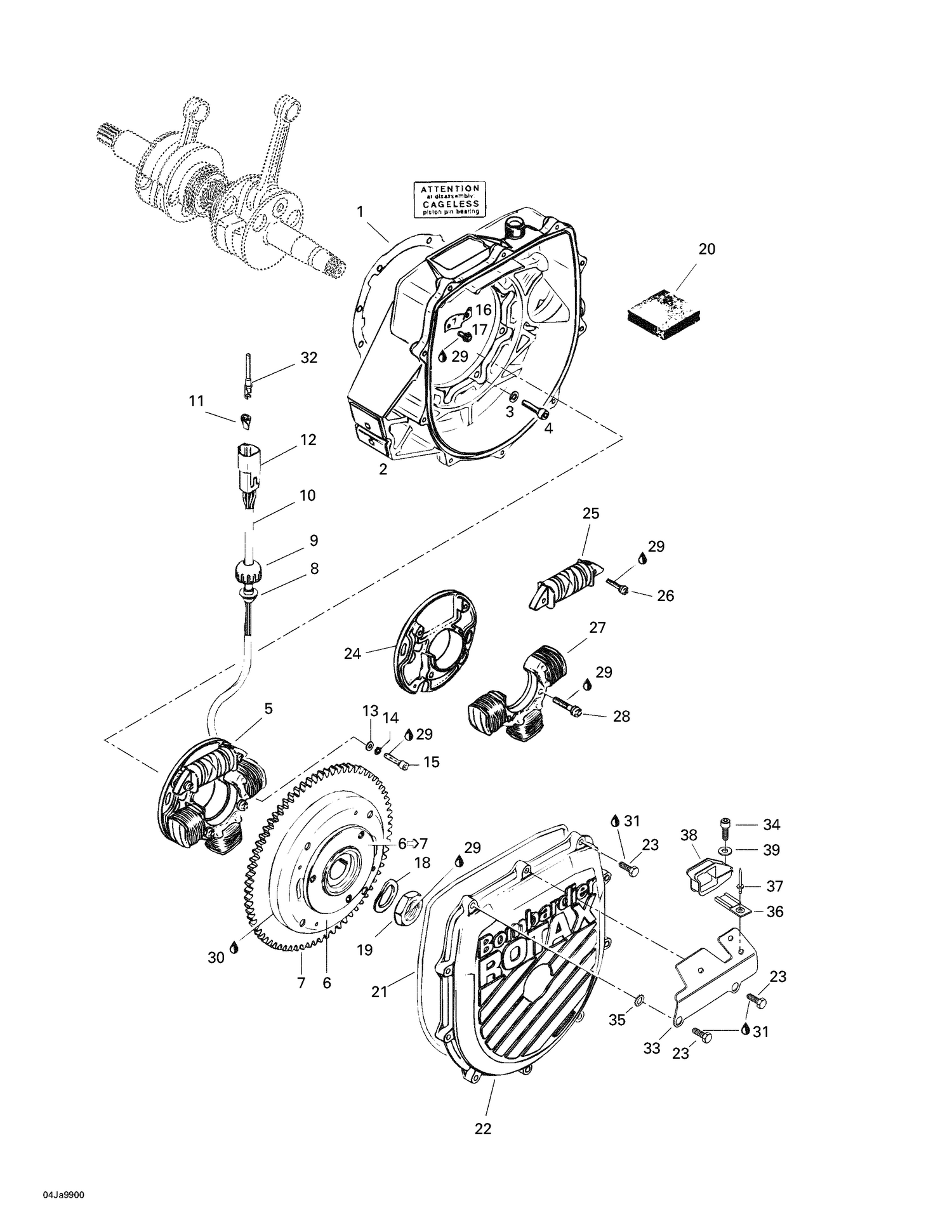

03- Magneto
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 290850605 | GASKET - Call your local BRP dealership |
| 2 | 290810099 | Ignition Housing (Silver) |
| 3 | 420945751 | WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 4 | 205062544 | Socket Head Screw M6 X 25 |
| 5 | 420886725 | ARMATURE PLATE ASS'Y - Call your local BRP dealership This part replaces 290886725. |
| 6 | 290995118 | Flywheel |
| 7 | 290834060 | Starter Gear 77 Teeth |
| 8 | 293720034 | Grommet |
| 9 | 278000100 | Electric Wire Cap |
| 10 | 290260931 | Tubing Isolation (75 mm) |
| 11 | 278000636 | Female Wedge, 4 Circuits |
| 12 | 278000635 | Female Housing, 4 Circuits |
| 13 | 420827800 | WASHER - Call your local BRP dealership |
| 14 | 420945750 | Lock Washer |
| 15 | 420840515 | SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership |
| 16 | 290853080 | Retainer Plate |
| 17 | 207150844 | HEX. SCREW M5 X 8 - Call your local BRP dealership |
| 18 | 420945759 | Lock Washer, 22 mm |
| 19 | 420842239 | Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 20 | 290860680 | Protection Mat |
| 21 | 290831555 | O-Ring |
| 22 | 290810147 | Ignition Cover |
| 23 | 290841543 | Taptite Screw |
| 24 | 290866725 | Armature Plate |
| 25 | 410915200 | GENERATING COIL - Call your local BRP dealership |
| 26 | 420940810 | SCREW M5 X 22 WITH WASHER - Call your local BRP dealership |
| 27 | 410916200 | Lighting Coil |
| 28 | 410913900 | SCREW M6 X 25 WITH WASHER - Call your local BRP dealership |
| 29 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
| 30 | 219703000 | Sealant Loctite 648 This part replaces 413711400. |
| 31 | 293800023 | LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 32 | 278000631 | Male Terminal |
| 33 | 204250026 | Regulator Support |
| 34 | 205061660 | Socket Screw M6 X 16 |
| 35 | 234461608 | External Serrated Lock Washer 6 mm |
| 36 | 270000141 | Clip |
| 37 | 204000081 | Pop Rivet 3/16" |
| 38 | 270000158 | Adaptor |
| 39 | 234061600 | Stainless Flat Washer M6 |
