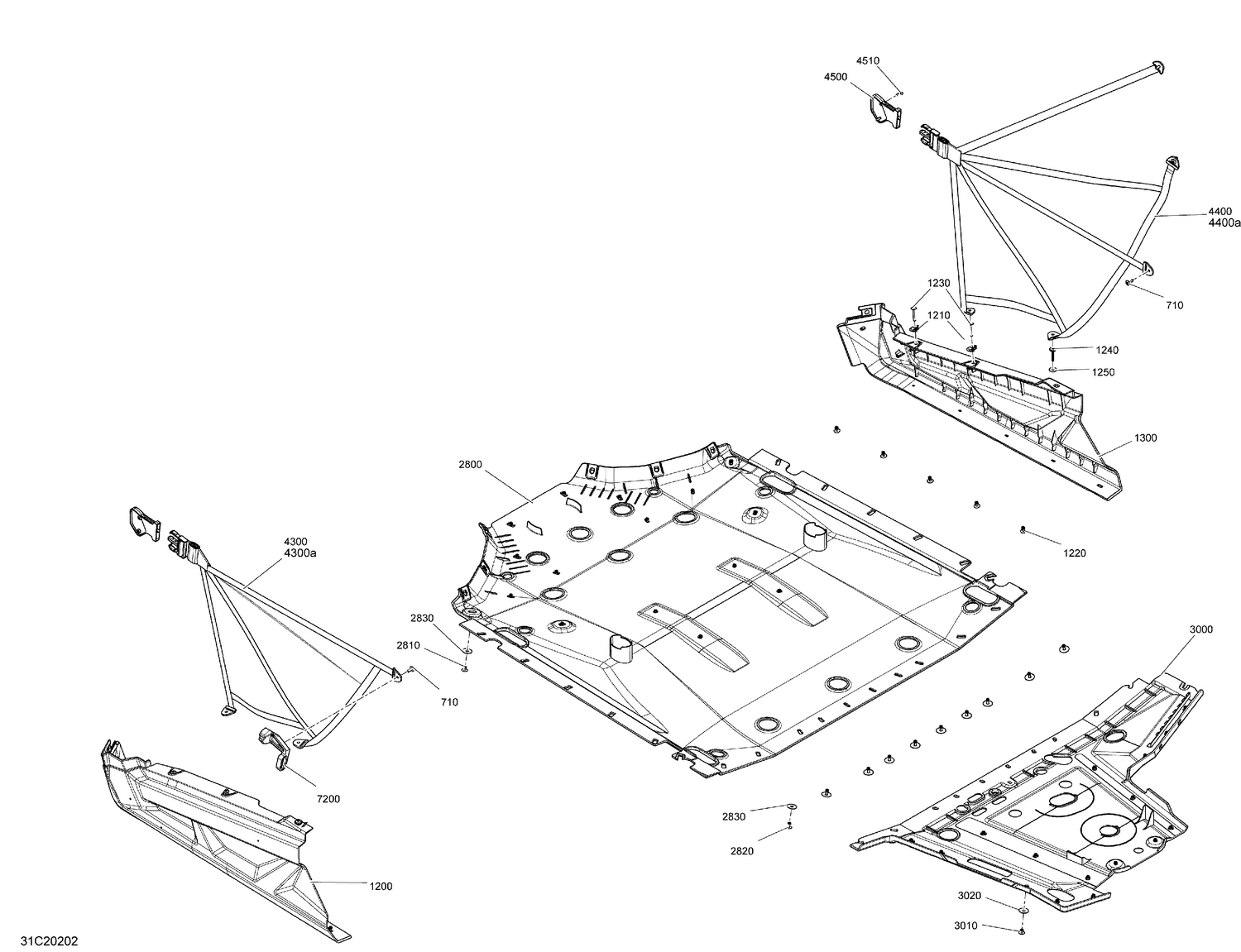

09- Body - Middle Section - Red
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1200 | 705011331 | LH Rocker Panel |
| 1210 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1220 | 293150101 | Pop Rivet 3/16” This part replaces 293150101. |
| 1230 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 1240 | 250000840 | Torx Truss Screw Head PT.K50 X 40 |
| 1250 | 250200162 | Flat Washer M6.6 X 22 |
| 1300 | 705016939 | RH Front Rocker Panel This part replaces 705011332. |
| 2800 | 705014696 | Front Skid Plate |
| 2810 | 293150087 | Pop Rivet 3/16” This part replaces 293150087. |
| 2820 | 293150087 | Pop Rivet 3/16” This part replaces 293150087. |
| 2830 | 250200191 | Washer |
| 3000 | 705014697 | Rear Skid Plate |
| 3010 | 293150087 | Pop Rivet 3/16” This part replaces 293150087. |
| 3020 | 250200191 | Washer |
| 4300a | 707900049 | Upper Link |
| 4400a | 707900049 | Upper Link |
| 4500 | 707900592 | Safety Net Link |
| 4510 | 250000720 | Torx Screw K50 X 16 |
