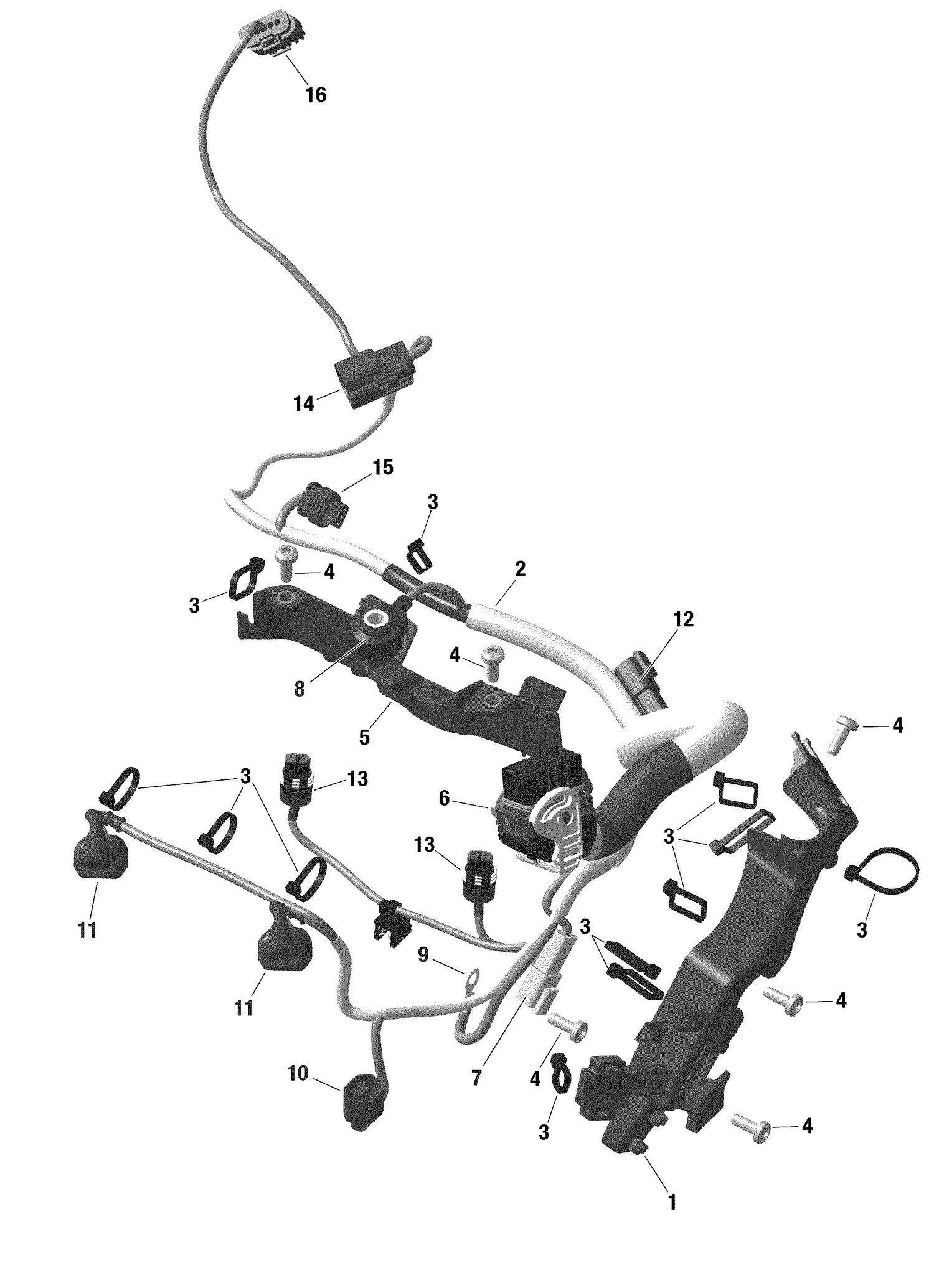

10- Electric - Engine Harness - 598 RS
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420260161 | Harness Support |
| 2 | 420864451 | Wiring Harness |
| 3 | 420651817 | Locking Tie 175 X 4 MM |
| 4 | 420640324 | Torx Screw M6 X 16 |
| 5 | 420260166 | Harness Support |
| 7 | 409206900 | Male Housing, 2 Circuits |
| 8 | 278001005 | Male Housing, 2 Circuits |
| 9 | 515175504 | Ring Terminal |
| 10 | 415130195 | Connector |
| 11 | 515176129 | Female Housing |
| 12 | 409206900 | Male Housing, 2 Circuits |
| 13 | 409209500 | Female Housing, 2 Circuits |
| 13 | 515177192 | Female Housing, 2 Circuits |
| 13 | 710005857 | Connector USB wih Cable |
