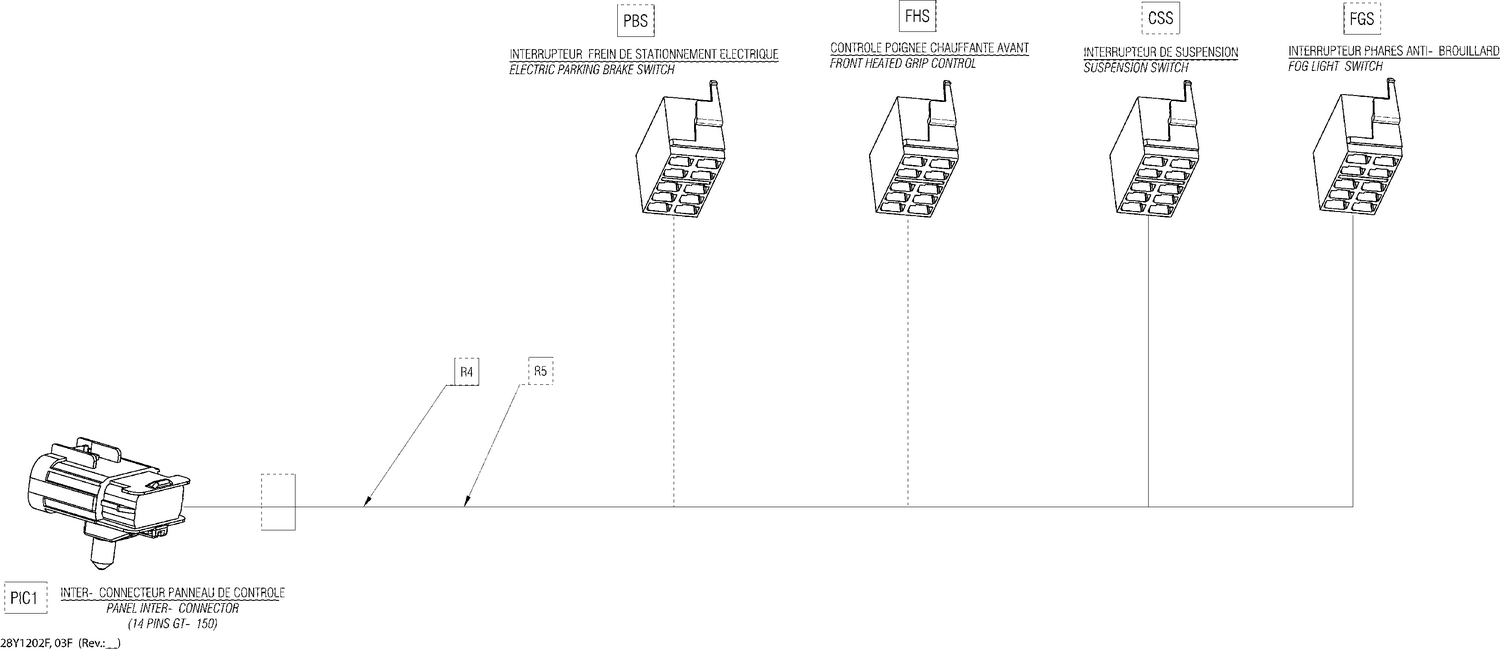

10- Electrical Harness , Switch
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| CSS | 710001931 | Terminal |
| CSS | 710002083 | HOUSING - Call your local BRP dealership |
| FGS | 710000221 | Female Terminal |
| FGS | 710001931 | Terminal |
| FGS | 710002001 | Housing Connector |
| FHS | 710001931 | Terminal |
| FHS | 710002003 | Housing Connector |
| PBS | 710001931 | Terminal |
| PBS | 710002002 | Housing Connector |
| PIC1 | 710001224 | Terminal |
| PIC1 | 710001225 | Cap |
| PIC1 | 710001332 | Seal Wire |
| PIC1 | 710001863 | TERMINAL - Call your local BRP dealership |
| PIC1 | 710001944 | Housing |
| PIC1 | 710002006 | Holder |
| R4 | 710001587 | Resistor |
