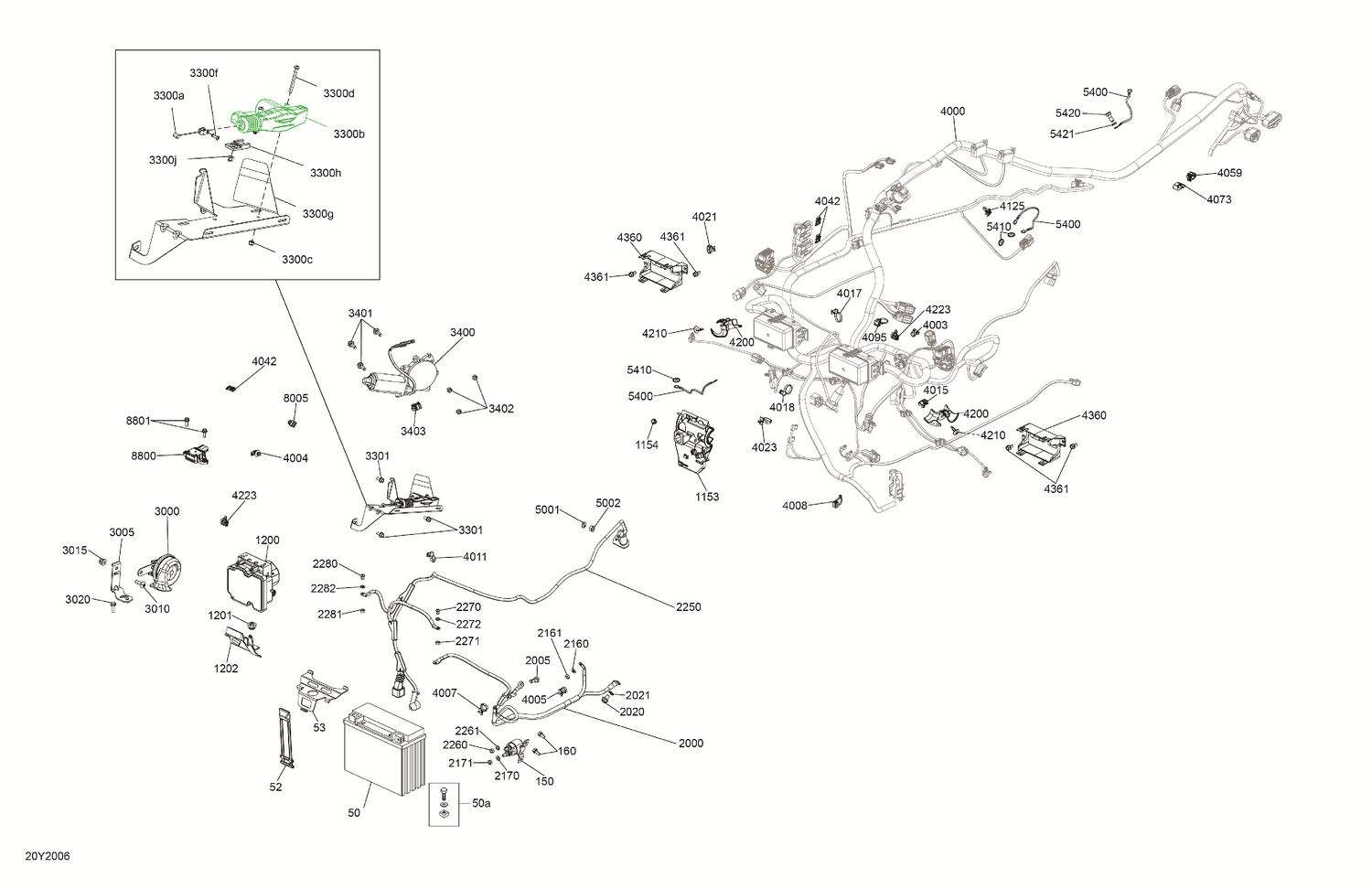

10- Electrical System - Frame
Parts (72)
| Ref | Part Number | Description |
|---|---|---|
| 50a | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 52 | 520000528 | Latch |
| 53 | 710002893 | Battery Holder |
| 150 | 710007777 | Starter Relay This part replaces 710001364. |
| 160 | 210261250 | Hex. Flange Screw M6 X 12 |
| 1153 | 710004308 | Wire Support |
| 1154 | 210261050 | Hex. Forming Screw M6 X 10 |
| 1200 | 219800502 | VCM Wet Prog & Grommet Module Kit This part replaces 219800488. |
| 1201 | 710003279 | Shock Damper |
| 1202 | 710003996 | VCM Harness Protector |
| 2000 | 710006399 | Starter Cable Ass'y |
| 2005 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 2020 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 2021 | 234481608 | Serrated Lock Washer 8 mm |
| 2160 | 234061600 | Stainless Flat Washer M6 |
| 2161 | 232561434 | Elastic Stop Nut M6 |
| 2170 | 234161601 | Lock Washer Helical M6 |
| 2171 | 232061600 | Hex. Nut M6 |
| 2250 | 710005026 | Pos Cable |
| 2260 | 232061600 | Hex. Nut M6 |
| 2261 | 234161601 | Lock Washer Helical M6 |
| 2270 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 2271 | 232061600 | Hex. Nut M6 |
| 2272 | 234161601 | Lock Washer Helical M6 |
| 2280 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 2281 | 232061600 | Hex. Nut M6 |
| 2282 | 234161601 | Lock Washer Helical M6 |
| 3000 | 710004940 | Horn |
| 3005 | 710005769 | Horn Support |
| 3010 | 250000874 | Torx Truss M8 X 25 |
| 3015 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3020 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 3300a | 710002889 | Reverse Cable |
| 3300b | 710011269 | Actuator |
| 3300c | 232541414 | Elastic Stop Nut M4 |
| 3300d | 205444056 | Socket Head Screw M4 X 40 |
| 3300f | 390403000 | Pop Rivet 5/32 |
| 3300g | 710010657 | Actuator Support |
| 3300h | 270000141 | Clip |
| 3300j | 293150293 | Pop Rivet 3/16 X ,425 |
| 3301 | 210261250 | Hex. Flange Screw M6 X 12 |
| 3400 | 710007256 | Actuator Motor |
| 3401 | 207662054 | Hex. Flange Screw M6 X 20 |
| 3402 | 232561434 | Elastic Stop Nut M6 |
| 3403 | 710002896 | Tie-Rap Clip |
| 4003 | 710003168 | Dart Tie Rap 200MM |
| 4004 | 710003840 | Clipping Tie-Rap |
| 4005 | 293750009 | Tie-Rap 173 mm |
| 4007 | 293750009 | Tie-Rap 173 mm |
| 4008 | 293750063 | Clip Tie-Rap |
| 4011 | 293750009 | Tie-Rap 173 mm |
| 4015 | 710005037 | Clip Tie-Rap |
| 4017 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 4018 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 4021 | 293750009 | Tie-Rap 173 mm |
| 4023 | 293750009 | Tie-Rap 173 mm |
| 4042 | 710001222 | Lock |
| 4095 | 293750063 | Clip Tie-Rap |
| 4125 | 293750063 | Clip Tie-Rap |
| 4200 | 710004931 | Harness Holder |
| 4210 | 414745900 | Tuflock Phillips Plastic Screw |
| 4223 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| 4360 | 710004472 | Fuse Holder Support |
| 4361 | 210261250 | Hex. Flange Screw M6 X 12 |
| 5001 | 234181601 | Lock Washer 8 mm, Stainless |
| 5002 | 232081414 | Hex. Nut M8 |
| 5400 | 710004849 | Tank Cable |
| 5410 | 250200041 | Lock Washer Serrated M6 |
| 5420 | 207382060 | Hex. Screw M8 X 20, Scotch Grip |
| 5421 | 250200111 | Washer |
| 8005 | 710002896 | Tie-Rap Clip |
| 8800 | 710005658 | Yaw Rate Sensor |
