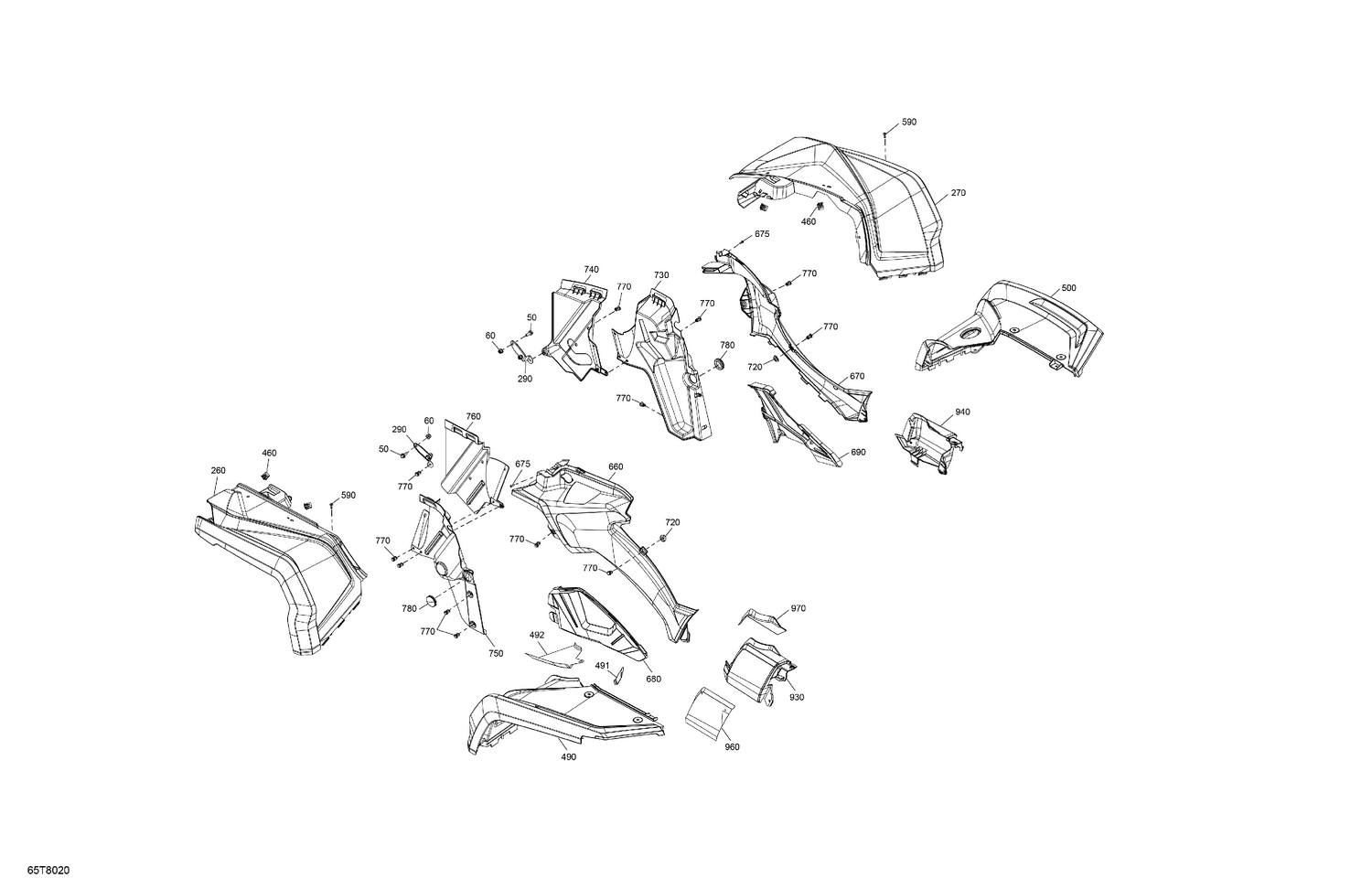

07- Body - Fender Kit
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 50 | 207682044 | Hex. Flange Screw M8 X 20 |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 260 | 715004038 | Black, LH Front Fender Kit |
| 270 | 715004024 | Black, RH Front Fender Kit |
| 290 | 705004565 | Lower Fender Support |
| 460 | 517302785 | Edge Clip |
| 490 | 715004047 | Black, LH Rear Fender Kit |
| 491 | 707002104 | Heat Shield |
| 492 | 707002105 | Heat Shield |
| 500 | 715004026 | Black, RH Rear Fender Kit |
| 590 | 250000722 | Torx Screw M6 X 20 |
| 660 | 705012116 | Black, LH Lateral Panel |
| 670 | 705012117 | Black, RH Lateral Panel |
| 675 | 250000723 | Phillips Screw K40 X 16 |
| 680 | 715007294 | Deflector Body Panel Kit |
| 690 | 705003444 | Engine Cover |
| 720 | 705003264 | Grommet |
| 730 | 705011462 | RH Rear Inner Fender |
| 740 | 705011463 | RH Front Inner Fender |
| 750 | 705013111 | LH Rear Inner Fender |
| 760 | 705017001 | LH Front Wheel Arch Protector This part replaces 705011465. |
| 770 | 293150230 | Tuflok Plastic Rivet |
| 780 | 293250242 | Rubber Cover |
| 930 | 715001897 | LH Extension Panel |
| 940 | 705004348 | RH Extension Panel |
| 960 | 705006870 | Heat Shield |
