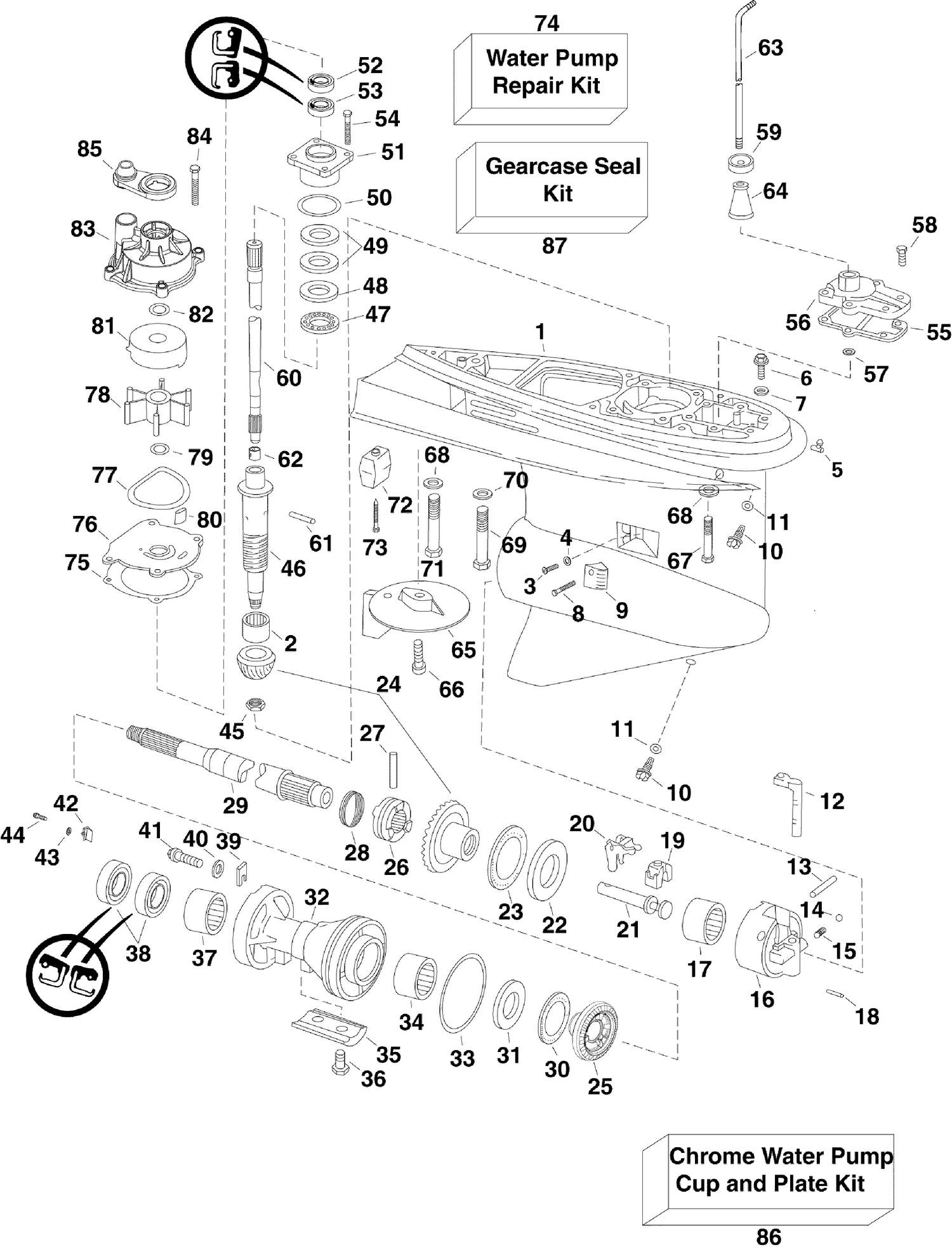

GEARCASE
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 60 | 5007137 | DRIVESHAFT Assembly, Upper |
| 63 | 0352957 | SHIFT ROD |
| 65 | 0338742 | COMPENSATEUR DE DÉRIVE |
| 66 | 0313715 | SCREW, Cap, hex hd, 7/16-14 x 1 |
| 67 | 0331999 | SCREW, Gearcase housing |
| 69 | 0331998 | SCREW, Gearcase to housing |
| 71 | 0330263 | SCREW, Mounting, 3/8 in. X 3.50 in. |
| 74 | 5007556 | WATER PUMP REPAIR KIT |
| 77 | 0331353 | Seal, Impeller Housing Plate. |
| 82 | 0331188 | O-Ring |
| 86 | 0435526 | CHROME CUP & PLATE KIT |
