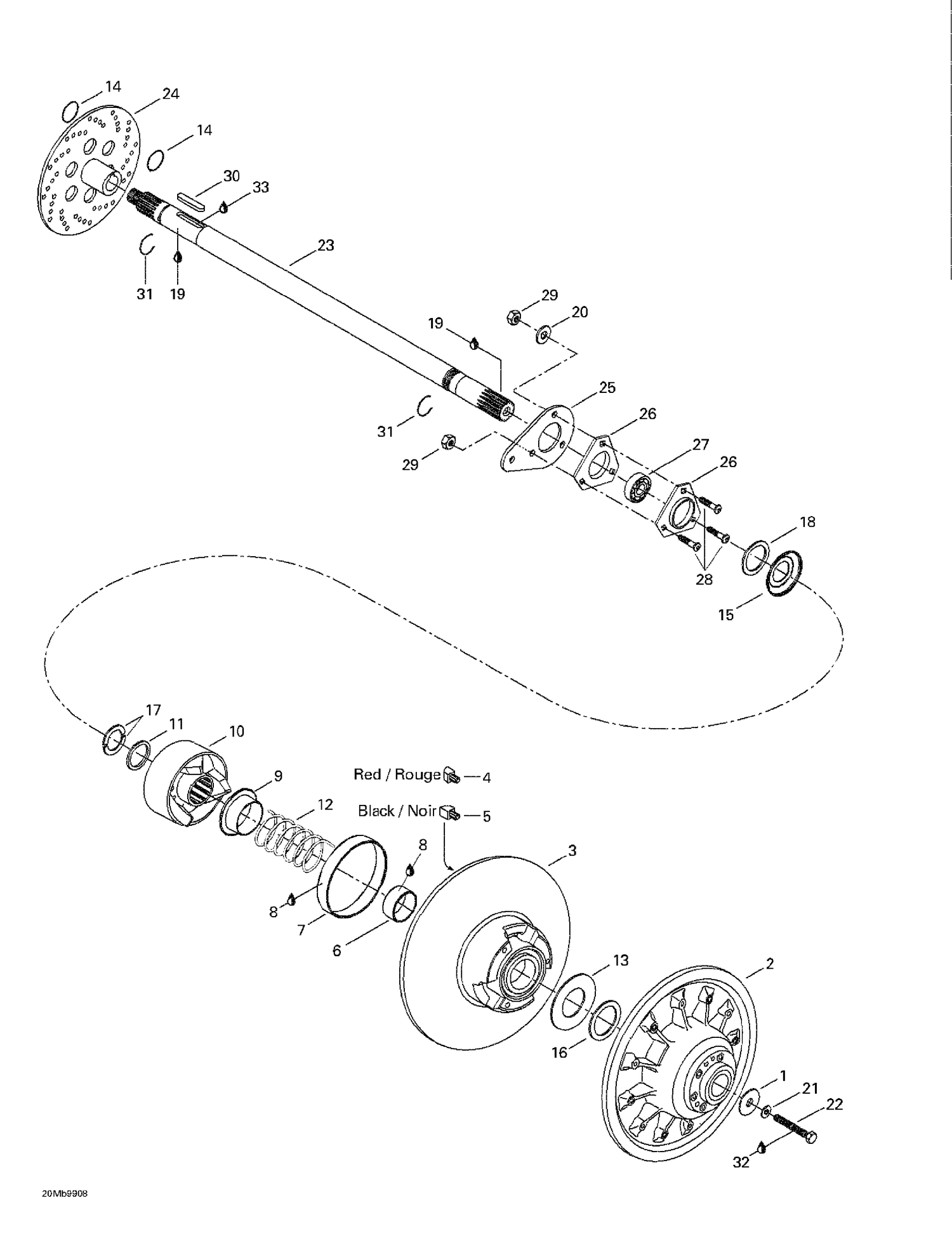

| Ref | Part Number | Description |
|---|
| 1 |
517302322 |
Strength Washer This part replaces 517293300. |
| 2 |
417126355 |
Fixed Flange Ass'y |
| 4 |
417126373 |
REAR CAM SLIDER SHOE, RED - Call your local BRP dealership |
| 5 |
417126374 |
Front Cam Slider Shoe, Black |
| 6 |
417126901 |
BUSHING - Call your local BRP dealership This part replaces 415092600. |
| 7 |
415092700 |
Bushing |
| 8 |
413703100 |
Loctite 609, 10 ml |
| 9 |
415006000 |
GUARD - Call your local BRP dealership |
| 10 |
417124700 |
Cam Ass'y |
| 11 |
417124300 |
WASHER - Call your local BRP dealership |
| 12 |
415092800 |
YELLOW SPRING - Call your local BRP dealership |
| 13 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 15 |
417300055 |
Protector |
| 16 |
504112300 |
SHIM - Call your local BRP dealership |
| 17 |
371911000 |
HALF KEY - Call your local BRP dealership |
| 18 |
417300265 |
Spacer This part replaces 417300054. |
| 19 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 20 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 21 |
503183100 |
Washer |
| 22 |
207088044 |
Hex. Screw M8 X 80 This part replaces 222088065. |
| 25 |
501022300 |
Spacer |
| 26 |
501025000 |
FLANGE - Call your local BRP dealership |
| 27 |
405408900 |
Bearing-Ball |
| 28 |
205482546 |
SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership |
| 29 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 30 |
507021300 |
KEY - Call your local BRP dealership |
| 31 |
371910000 |
Circlip |
| 32 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
