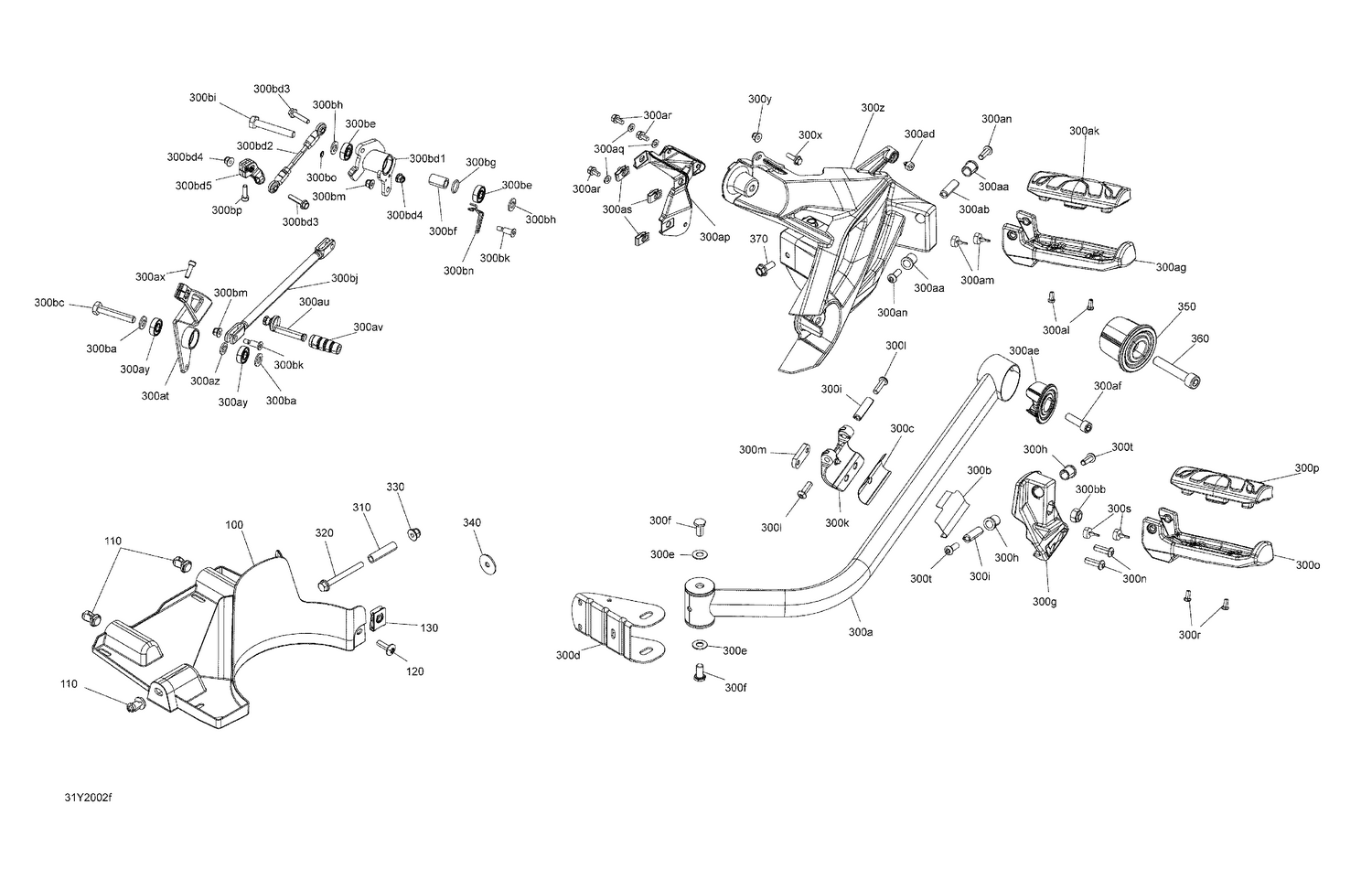

09- Body And Accessories LH Footrest
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 705007785 | LH Front Skid Plate |
| 110 | 293150230 | Tuflok Plastic Rivet |
| 120 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 130 | 250100208 | Panel Nut M6 X 1.0 |
| 300aa | 705008166 | Spacer Bushing |
| 300ab | 705013628 | Pivot Pin |
| 300ad | 293830005 | Rubber Bumper |
| 300ae | 705010203 | Pivot Cap |
| 300af | 244003560 | SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership |
| 300ag | 705008663 | Carbon Black, LH Footpeg |
| 300ak | 705011281 | Footpeg Rubber Pad |
| 300al | 250000099 | Allen Plastite Screw #12 |
| 300am | 708000759 | Rubber Stopper |
| 300an | 250000830 | Socket Head Screw M8 X 25 |
| 300ap | 705008961 | LH Fairing Support |
| 300aq | 234061670 | Black, Flat Washer 6 mm |
| 300ar | 210261250 | Hex. Flange Screw M6 X 12 |
| 300as | 250100198 | Panel Nut M6 X 1.0 |
| 300b | 705014176 | LH Outer Protective Film |
| 300bd1 | 707001573 | Shifter Lever Rocker |
| 300bd2 | 504152819 | Linkage Rod |
| 300bd3 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 300bd4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 300bd5 | 707000926 | Shifter Arm |
| 300c | 705014174 | LH inner Protective Film |
| 300d | 705008950 | Tube Support |
| 300e | 506152582 | Washer |
| 300f | 250000719 | Hex. Cap Screw Full Thread M10 X 20 |
| 300g | 705007798 | LH Slider Outside |
| 300h | 705008166 | Spacer Bushing |
| 300i | 705013628 | Pivot Pin |
| 300k | 705013117 | Black, LH Slider Clamp |
| 300l | 250000830 | Socket Head Screw M8 X 25 |
| 300m | 705008553 | Back Plate |
| 300n | 250000830 | Socket Head Screw M8 X 25 |
| 300o | 705008663 | Carbon Black, LH Footpeg |
| 300p | 705011281 | Footpeg Rubber Pad |
| 300r | 250000099 | Allen Plastite Screw #12 |
| 300s | 708000759 | Rubber Stopper |
| 300t | 250000830 | Socket Head Screw M8 X 25 |
| 300x | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 300y | 233261466 | Hex. Flange Elastic Nut M6 |
| 300z | 705009401 | Carbon Black, LH Rear Footrest Support |
| 310 | 705018575 | Spacer This part replaces 705008219. |
| 320 | 250000778 | Hex. Flange Screw M6 X 60 |
| 330 | 233261466 | Hex. Flange Elastic Nut M6 |
| 340 | 250200029 | Washer M6 |
| 350 | 705010202 | Pivot Cap |
| 360 | 205505560 | Socket Head Screw |
