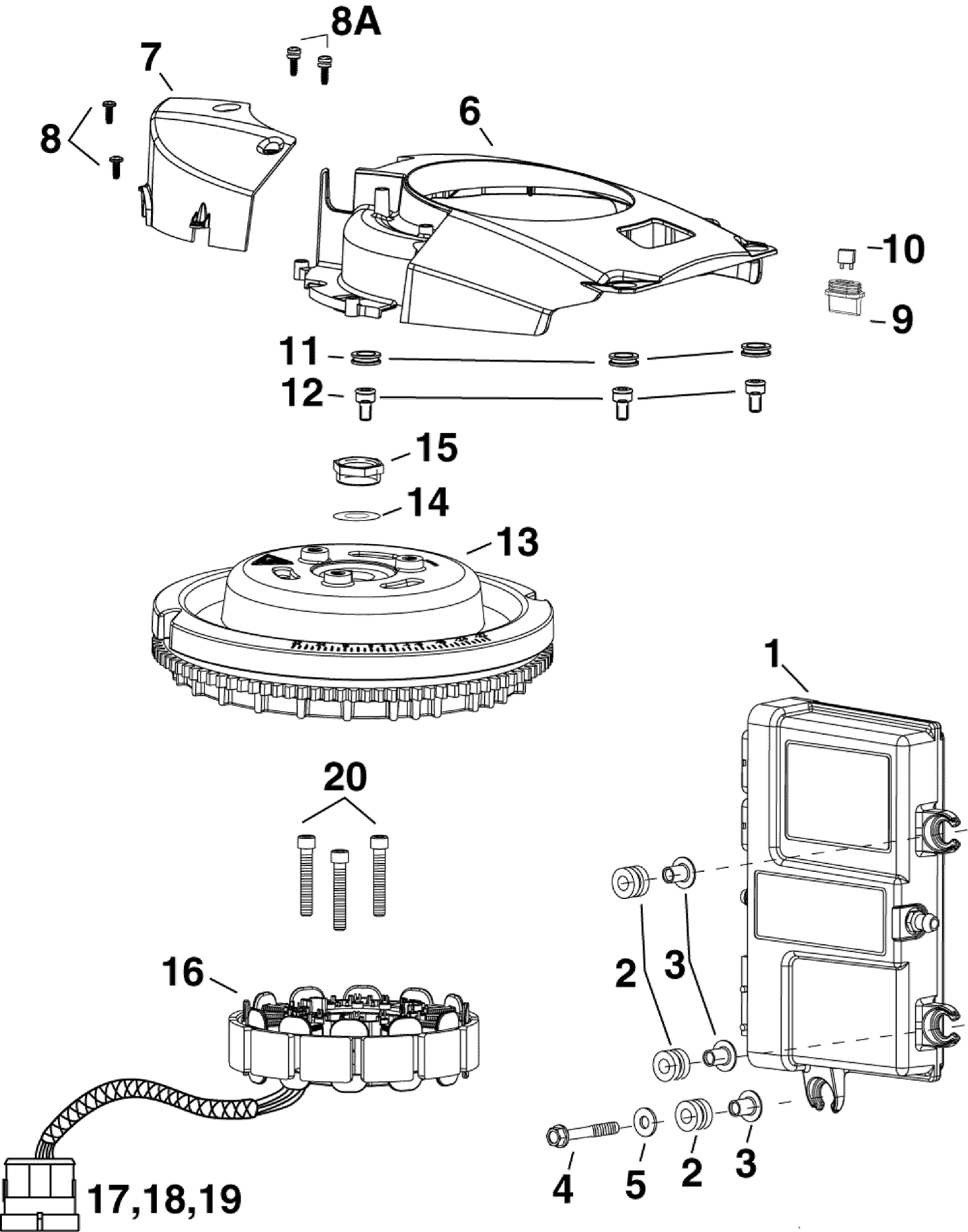

EMM, STATOR, FLYWHEEL
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0587281 | EMM This part replaces 0587127. |
| 1 | 0587283 | EMM This part replaces 0587128. |
| 6 | 0354051 | FLYWHEEL COVER |
| 6 | 0354106 | FLYWHEEL COVER |
| 7 | 0350854 | COVER , Electrical components |
| 8A | 0351618 | SCREW, Elec.cover |
| 11 | 0350973 | GROMMET |
| 12 | 0351002 | SCREW, Cover |
| 13 | 0586964 | FLYWHEEL |
| 15 | 0329267 | NUT, Flywheel |
| 16 | 0586949 | STATOR ASSEMBLY |
| 20 | 0350992 | SCREW, Stator to C/C |
