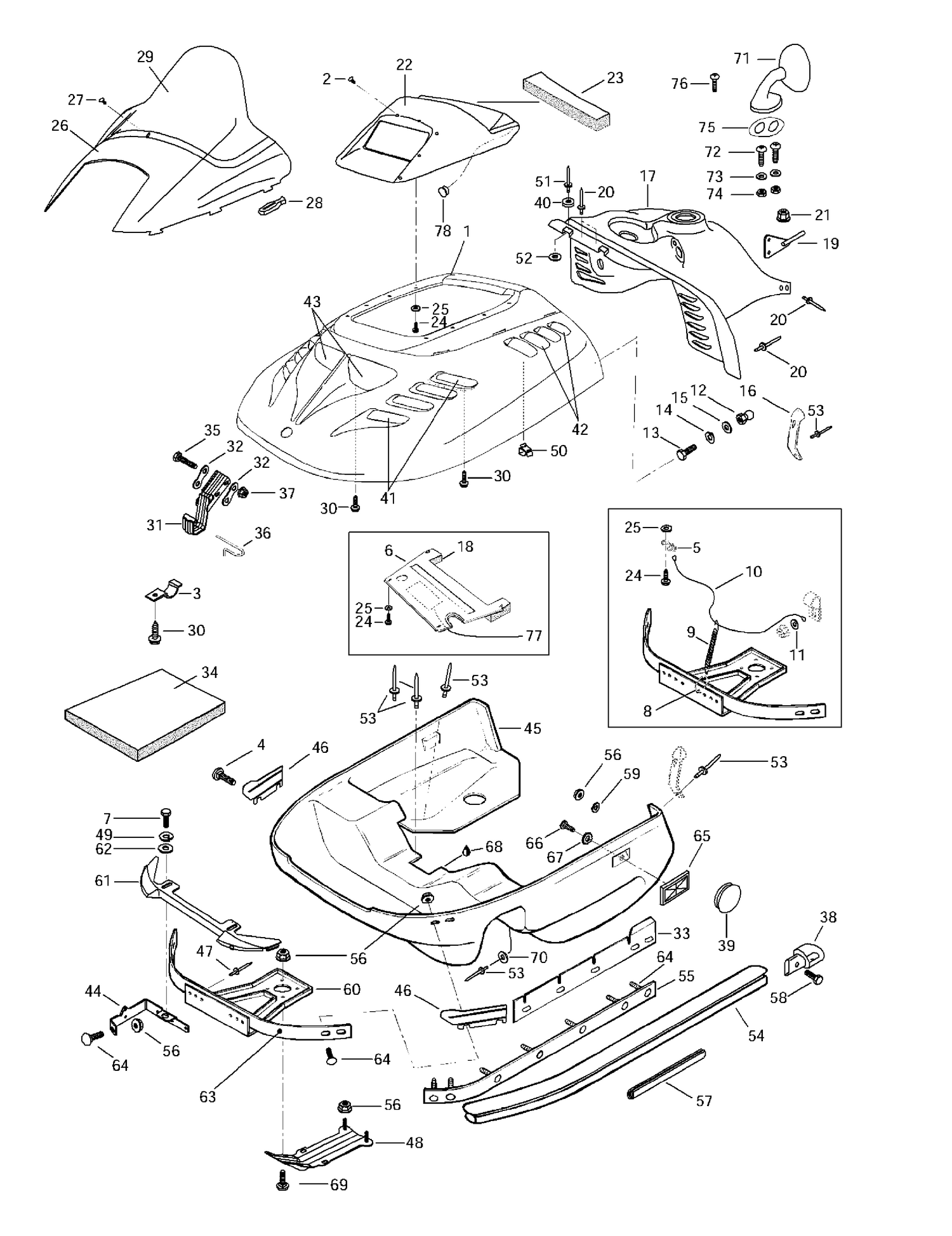

09- Cab, Console
Parts (94)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 572079326 | Cab (Blue) |
| 2 | 414939500 | Dart |
| 3 | 517274400 | Bracket |
| 4 | 732601214 | Carriage Bolt M6 x 20 |
| 5 | 517262800 | Bracket |
| 6 | 572081700 | Air Deflector |
| 7 | 207161644 | Hex. Screw M6 X 16 This part replaces 222061665. |
| 8 | 415058300 | RING - Call your local BRP dealership |
| 9 | 414763300 | Spring |
| 10 | 414212300 | Cab Retainer Cable |
| 11 | 224060201 | Flat Washer |
| 12 | 517245800 | Knob |
| 13 | 207151444 | Hex. Screw M5 X 14 This part replaces 222051465. |
| 14 | 234151401 | Lock Washer 5 mm This part replaces 224751090. |
| 15 | 391301600 | Washer |
| 16 | 570027100 | Hood Latch |
| 17 | 572075102 | Tank Cover |
| 18 | 415026200 | Acoustic Foam |
| 19 | 517260700 | LH Bracket Plate |
| 20 | 390406500 | Pop Rivet 3/16" |
| 21 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 22 | 561723200 | Dash |
| 23 | 414966100 | Foam |
| 24 | 365901400 | Screw-hex.taping 12 |
| 25 | 224061201 | Flat Washer |
| 26 | 572043400 | Windshield Support (Smoked) |
| 27 | 414939500 | Dart |
| 28 | 570023800 | Windshield Latch |
| 29 | 414939100 | HIGH WINDSHIELD (19) - Call your local BRP dealership |
| 30 | 732601210 | HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership |
| 31 | 517273500 | Hinge |
| 32 | 517274300 | Plate |
| 33 | 517279500 | RH Cab Guide |
| 34 | 414632400 | Acoustic Foam |
| 35 | 207065544 | Hex. Screw M6 X 55 This part replaces 222065565. |
| 36 | 414939800 | RH Pin |
| 37 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 38 | 572036700 | RH Cap |
| 39 | 570045105 | Bottom Pan Cap (Blue Velvet) |
| 40 | 415018100 | Rubber Stopper |
| 41 | 517276200 | RH Front Grill |
| 42 | 517284300 | RH Rear Grill |
| 43 | 517276400 | Central Grill |
| 44 | 517273200 | RH Hinge Bracket |
| 45 | 572076104 | Bottom Pan (Blue Velvet) |
| 46 | 517279000 | Front Guide R.H |
| 47 | 390402000 | Pop Rivet 3/16" |
| 48 | 506123000 | Link Plate |
| 49 | 234161471 | Lock Washer M6, Black This part replaces 224761110. |
| 50 | 414227300 | Clip |
| 51 | 390401600 | Pop Rivet 1/8" |
| 52 | 391300800 | Flat Washer |
| 53 | 390906800 | Pop Rivet 3/16" This part replaces 390909700. |
| 54 | 517243902 | Front Bumper |
| 55 | 414967400 | Strip Located |
| 56 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 57 | 414968501 | Bumper Moulding (Blue) |
| 58 | 732601148 | Cap Screw |
| 59 | 224060201 | Flat Washer |
| 60 | 517271200 | Front Reinforcement |
| 61 | 572059100 | Front Moulding |
| 62 | 224061201 | Flat Washer |
| 63 | 517274700 | Hinge Bracket |
| 64 | 207762544 | Carriage Bolt M6 X 25 This part replaces 222262565. |
| 65 | 414510200 | REFLECTOR, AMBER - Call your local BRP dealership |
| 66 | 208651041 | PHILLIPS SCREW M5 X 10 - Call your local BRP dealership This part replaces 222851065. |
| 67 | 224151101 | WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 68 | 293530011 | SEALANT, SIKAFLEX BLACK # 221 - Call your local BRP dealership |
| 69 | 207762044 | Carriage Bolt M6 X 20 This part replaces 222262065. |
| 70 | 517124300 | Washer |
| 71 | 414971910 | RH MIRROR - Call your local BRP dealership |
| 72 | 222842065 | Screw M4 x 20 |
| 73 | 517124300 | Washer |
| 74 | 232541414 | Elastic Stop Nut M4 This part replaces 228541045. |
| 75 | 572039200 | Shim R.H |
| 76 | 222843065 | Machined Screw M4 x 30 |
| 77 | 415025600 | Front Deflector Foam |
| 414631900 | Acoustic | Foam 414631900 |
| 414631900 | Mousse | Acoustique 414631900 |
| 414939802 | LH | Pin 414939802 |
| 414972010 | LH | MIRROR - Call your local BRP dealership 414972010 |
| 414972010 | Rétroviseur | GA - Appelez votre concessionnaire BRP local 414972010 |
| 517260701 | RH | Bracket Plate 517260701 |
| 517273300 | LH | Hinge Bracket 517273300 |
| 517276300 | Grille | Avant GA 517276300 |
| 517276300 | LH | Front Grill 517276300 |
| 517279100 | Front | Guide L.H 517279100 |
| 517279600 | LH | Cab Guide 517279600 |
| 517283200 | Grille | Arrière GA 517283200 |
| 517283200 | LH | Rear Grill 517283200 |
| 572036800 | Bouchon | GA 572036800 |
| 572036800 | LH | Cap 572036800 |
| 572039100 | Cale | L.H 572039100 |
| 572039100 | Shim | L.H 572039100 |
