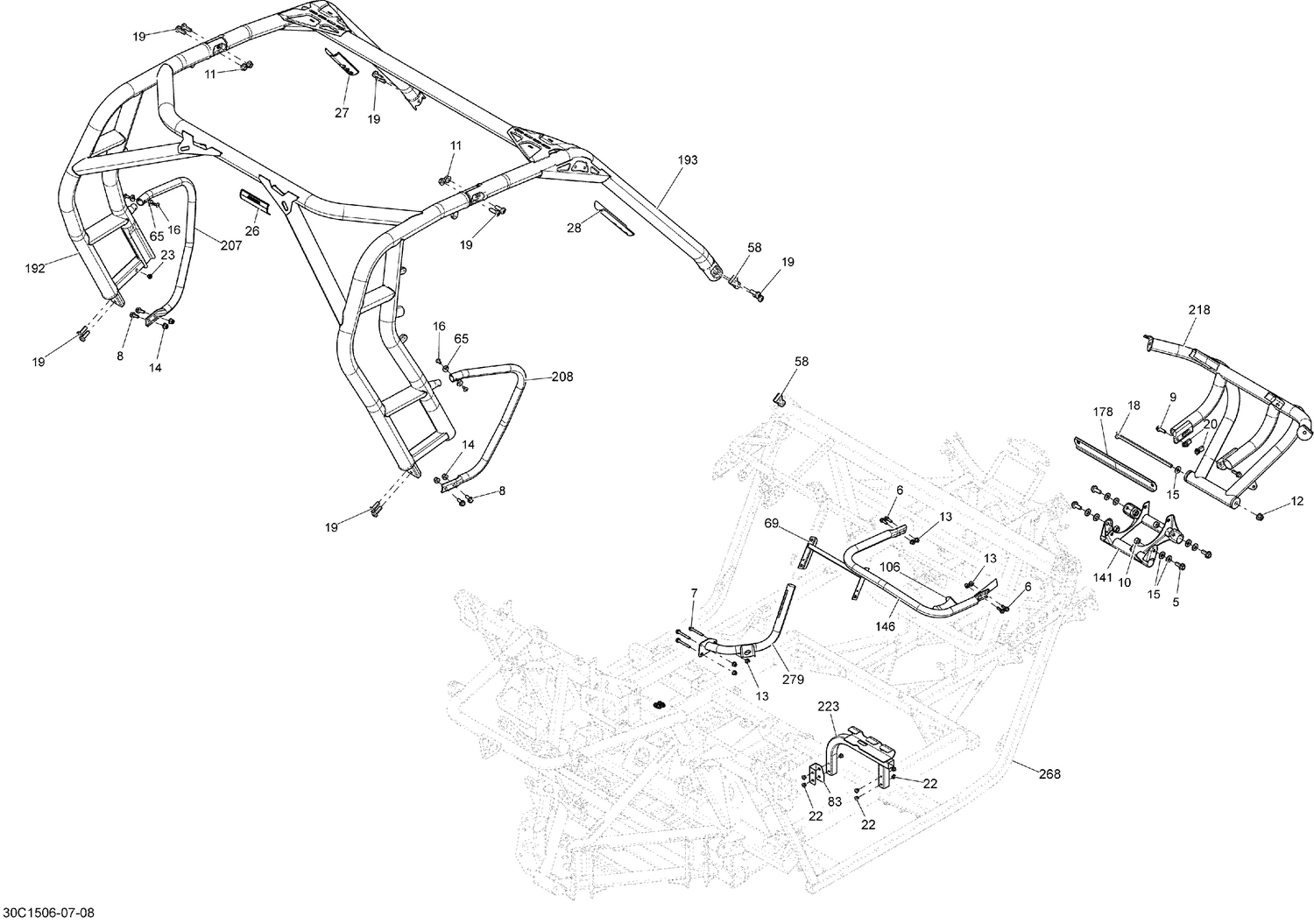

| Ref | Part Number | Description |
|---|
| 5 |
207602546 |
Hex. Flange Screw M10 X 25 |
| 6 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 7 |
207665044 |
Hex. Flange Screw M6 X 50 |
| 8 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 9 |
207382544 |
SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership |
| 10 |
232500416 |
Elastic Stop Nut M10 |
| 11 |
233101464 |
Hex. Elastic Flange Nut , M10 X 1.5 |
| 12 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 13 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 14 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 15 |
234201474 |
Conical Spring Washer 10 mm |
| 16 |
250000789 |
Torx Truss M6X14 This part replaces 250000439. |
| 18 |
250000597 |
Hex. Flange Screw |
| 19 |
250000848 |
Screw Pan M10 X 30 This part replaces 250000624. |
| 20 |
250100118 |
Panel Nut M8 X 1.25 |
| 22 |
293150096 |
Hemlock Rivet, 6.5 mm |
| 23 |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 26 |
704903492 |
Warning Label |
| 27 |
704903679 |
Warning Label |
| 28 |
704903680 |
Warning Label |
| 58 |
705203415 |
Binding Block |
| 65 |
705202223 |
Offset Washer |
| 69 |
705203330 |
Reinforcement Panel |
| 83 |
705202602 |
Seat Support |
| 141 |
705203296 |
DIFFERENTIAL SUPPORT - Call your local BRP dealership |
| 146 |
705203332 |
Black Handle |
| 178 |
705203454 |
FRONT SUSPENSION LINK - Call your local BRP dealership |
| 192 |
715003905 |
Red Cage Kit This part replaces 705204718. |
| 192 |
715004812 |
Deep Black, Cage Ass'y This part replaces 705204714. |
| 218 |
715001645 |
FRONT BUMPER BLACK - Call your local BRP dealership This part replaces 705203685. |
| 268 |
715004817 |
Frame Kit This part replaces 715002496. |
