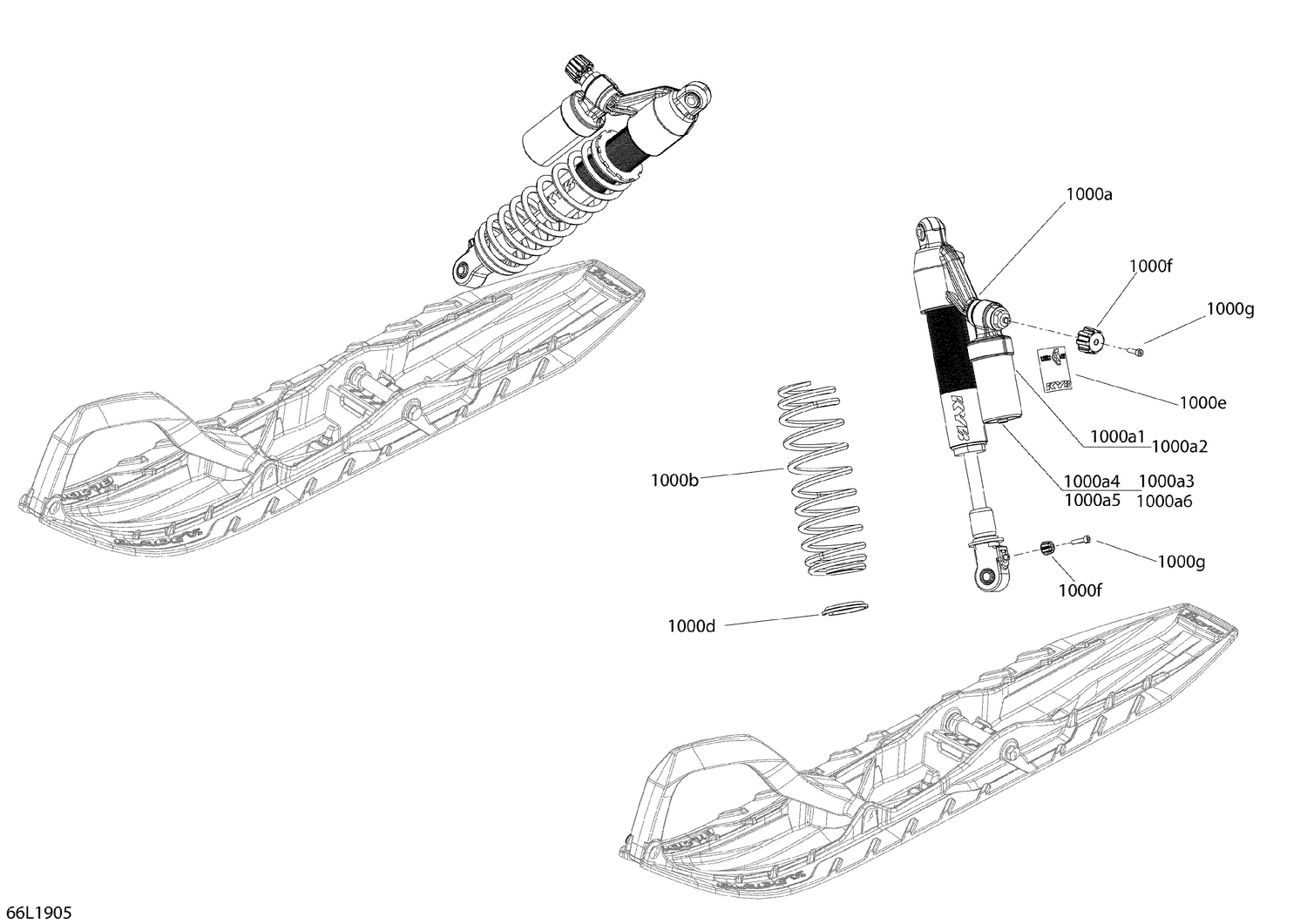

07- Front Shocks - RE
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1000a1 | 415093807 | O-Ring |
| 1000a2 | 415093806 | Piston Ring |
| 1000a3 | 505070398 | Air Valve |
| 1000a4 | 505070399 | Screw |
| 1000a5 | 505070400 | O-Ring |
| 1000a6 | 415093804 | O-Ring |
| 1000c | 503194270 | Spring Stopper |
| 1000e | 516008320 | Shock Adjustment Decal KYB |
| 1000f | 505072753 | Adjustment Knob |
| 1000g | 250000644 | Allen Screw M3 X 0.5 X 10 This part replaces 205031060. |
