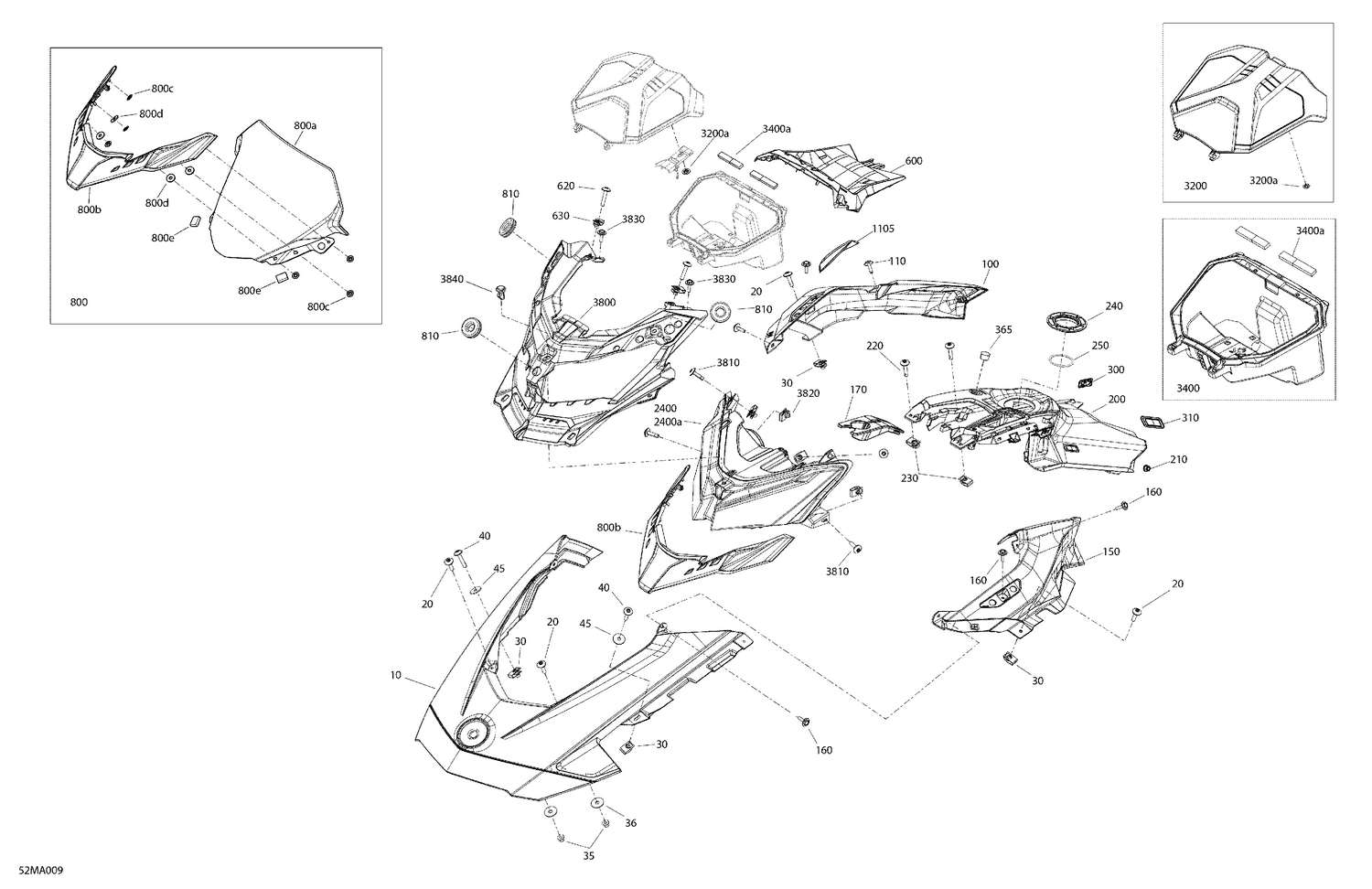

07- Body - Hood
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517307394 | Catalyst Gray, Front Hood |
| 20 | 250000528 | Torx Screw M5 X 20 |
| 30 | 250000958 | Panel Nut M5 X 0.8 |
| 35 | 233151414 | Hex. Flange Nut M5 |
| 36 | 250200040 | Flat Washer |
| 40 | 250000587 | Torx Screw M5 X 26 |
| 45 | 250200166 | Washer |
| 100 | 517307396 | RH Hood |
| 110 | 250000725 | Screw M4 X 16 |
| 150 | 517307395 | LH Hood |
| 160 | 250000725 | Screw M4 X 16 |
| 170 | 517307744 | Console Pad |
| 200 | 517307686 | Rear Console |
| 210 | 233251434 | Flange Elastic Nut M5 |
| 220 | 250000587 | Torx Screw M5 X 26 |
| 230 | 250000958 | Panel Nut M5 X 0.8 |
| 240 | 517306602 | Console Nut |
| 250 | 706002839 | O-Ring |
| 300 | 517306587 | RH Cap |
| 310 | 517306588 | LH Cap |
| 365 | 572051500 | Cap |
| 600 | 517307675 | Gauge Support |
| 620 | 250000587 | Torx Screw M5 X 26 |
| 630 | 250000958 | Panel Nut M5 X 0.8 |
| 800a | 517306423 | Windshield 360 |
| 800b | 517305749 | Deep Black, Windshield Support |
| 800c | 732610072 | Push Nut |
| 800d | 250200024 | Rubber Washer 5 mm |
| 800e | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 810 | 517303756 | Grommet |
| 1105 | 517307667 | Heat Shield |
| 2400a | 415130081 | Bulb |
| 3200a | 732610072 | Push Nut |
| 3400a | 517305157 | Seal Joint |
| 3800 | 517305746 | Deep Black, Headlamp Fairing |
| 3810 | 250000528 | Torx Screw M5 X 20 |
| 3820 | 250000958 | Panel Nut M5 X 0.8 |
| 3830 | 250000725 | Screw M4 X 16 |
