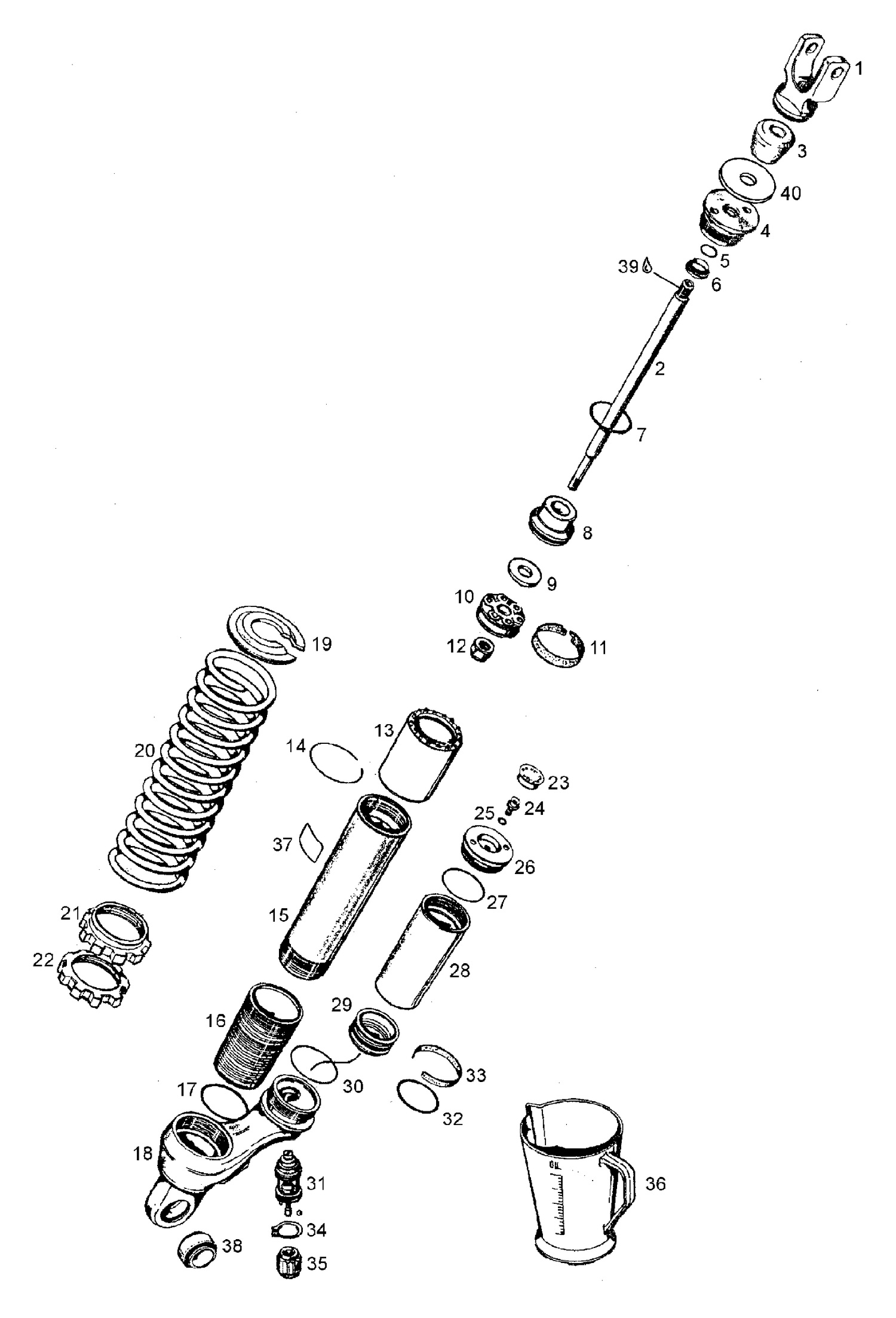

08- Front Suspension
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | WP361206701 | Mounting fork |
| 2 | WP36120709 | Piston rod |
| 3 | WP36120548 | Bumprubber |
| 4 | WP36120711 | Screw cap |
| 5 | WP46810011 | O-ring |
| 6 | WP46810027 | Dust seal |
| 7 | WP36120064 | O-ring |
| 8 | WP36120712S1 | Adaptor |
| 9 | WP36120710 | Rebound bush |
| 10 | WP36120071 | Piston |
| 11 | WP36120040 | Pistonring |
| 12 | WP36120052 | Nut |
| 13 | WP36120467 | Protection sleeve |
| 14 | WP40540015 | Circlip |
| 15 | WP36120106 | Tube |
| 16 | WP36120019 | Threaded bush |
| 17 | WP40540037 | O-ring |
| 18 | WP36120525 | Bottom |
| 19 | WP36120643 | Spring retainer |
| 20 | WP93010112 | Spring d=9.25 |
| 21 | WP36120418 | Spring retainer |
| 22 | WP36120015 | Spring retainer |
| 23 | WP46811208 | Rubber cap |
| 24 | WP36120151 | Nitrogen plug |
| 25 | WP46810893 | O-ring |
| 26 | WP36120552 | Reservoircap |
| 27 | WP40540037 | O-ring |
| 28 | WP36120556 | Reservoir tube |
| 29 | WP36120024 | Separationspiston |
| 30 | WP40540037 | O-ring |
| 31 | WP46810850S2 | Valve housing |
| 32 | WP36120466 | O-ring |
| 33 | WP46810022 | Piston ring |
| 34 | WP46810334 | Lock washer |
| 35 | WP46810327S | Adjuster knob |
| 36 | WP46810208 | Oil |
| 37 | WP52000039 | Lynx decal |
| 38 | WP46811735 | Silentblock |
| 39 | 293800005 | Loctite 271 (10 ml) This part replaces 413707400. |
