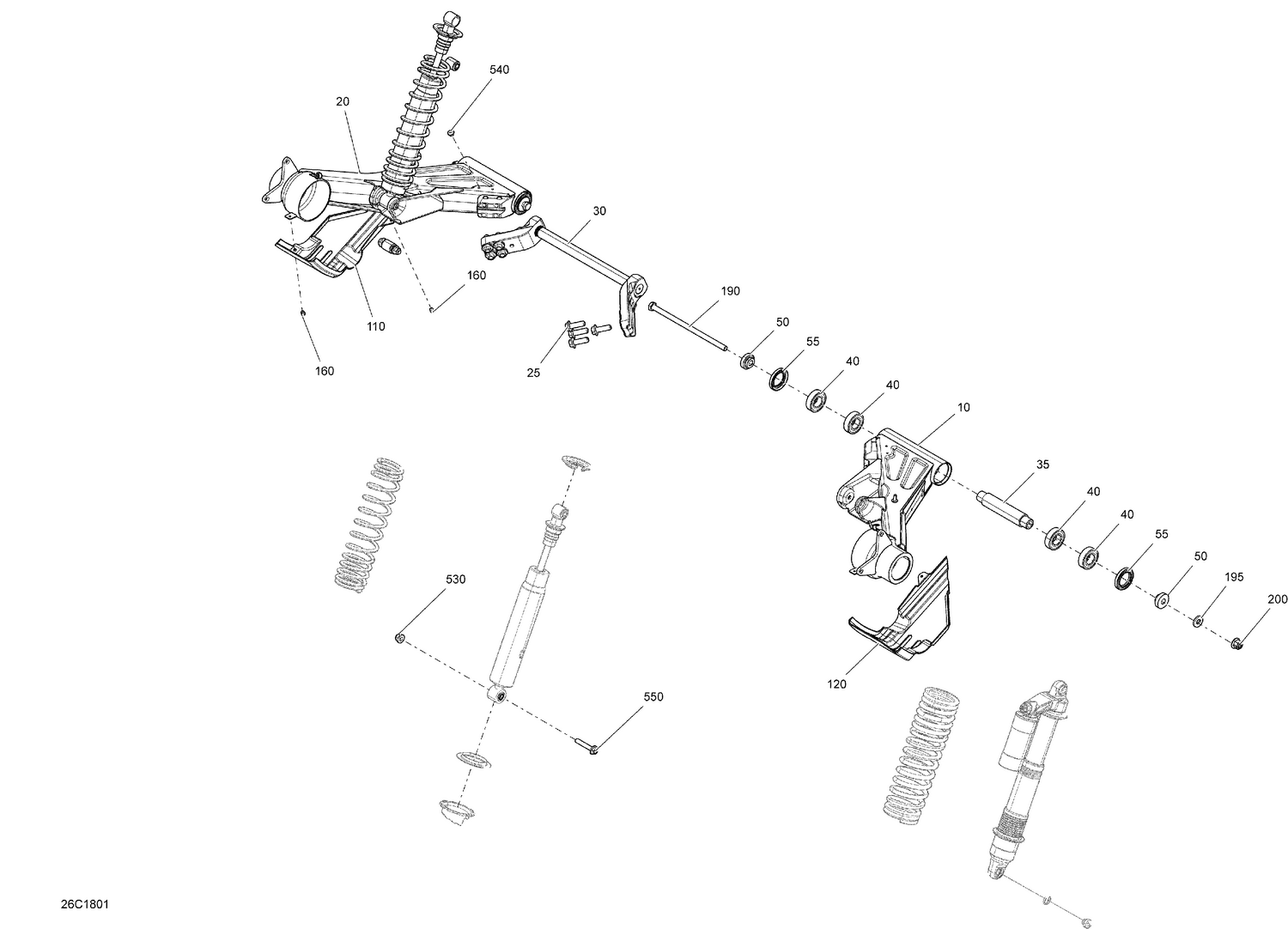

08- Rear Suspension Commander
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 25 | 207523544 | Hex. Flange Screw M12 X 35, Scotch Grip |
| 35 | 706001529 | Bushing |
| 40 | 293350115 | Ball Bearing This part replaces 293350055. |
| 50 | 706001350 | Spacer |
| 55 | 293200094 | Seal |
| 110 | 706002999 | LH Joint Protector |
| 120 | 706003000 | RH Joint Protector |
| 160 | 293150104 | Pop Rivet 3/16" |
| 190 | 250001031 | Hex. Cap Screw M12 X 241 This part replaces 250000515. |
| 195 | 250200120 | Flat Washer M12 |
| 200 | 233221416 | Elastic Flange Nut M12 |
| 530 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 540 | 390406500 | Pop Rivet 3/16" |
