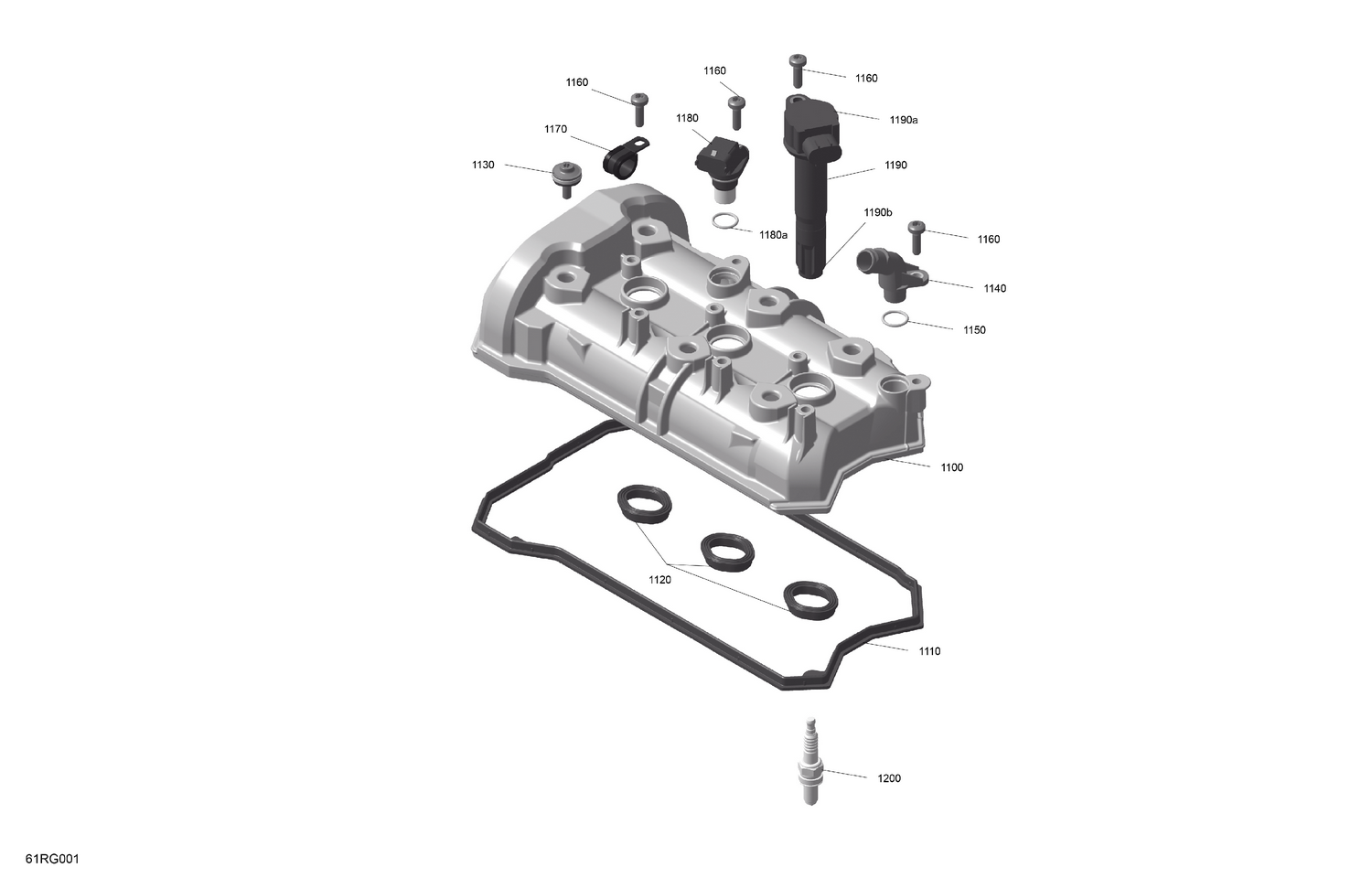

01- ROTAX - Valve Cover
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1100 | 420911496 | Valve Cover |
| 1110 | 420431801 | Gasket |
| 1120 | 420431751 | Gasket |
| 1130 | 420440495 | Torx Distance Screw M6 |
| 1140 | 420611242 | Connector |
| 1150 | 420631240 | O-Ring |
| 1160 | 420441386 | Flanged Torx Screw M6 X 20 |
| 1170 | 420851492 | Cable Clamp 15/M6 |
| 1180a | 420631890 | O-Ring |
| 1190a | 420201430 | Protection Cap |
| 1190b | 420201437 | Plug Boot |
