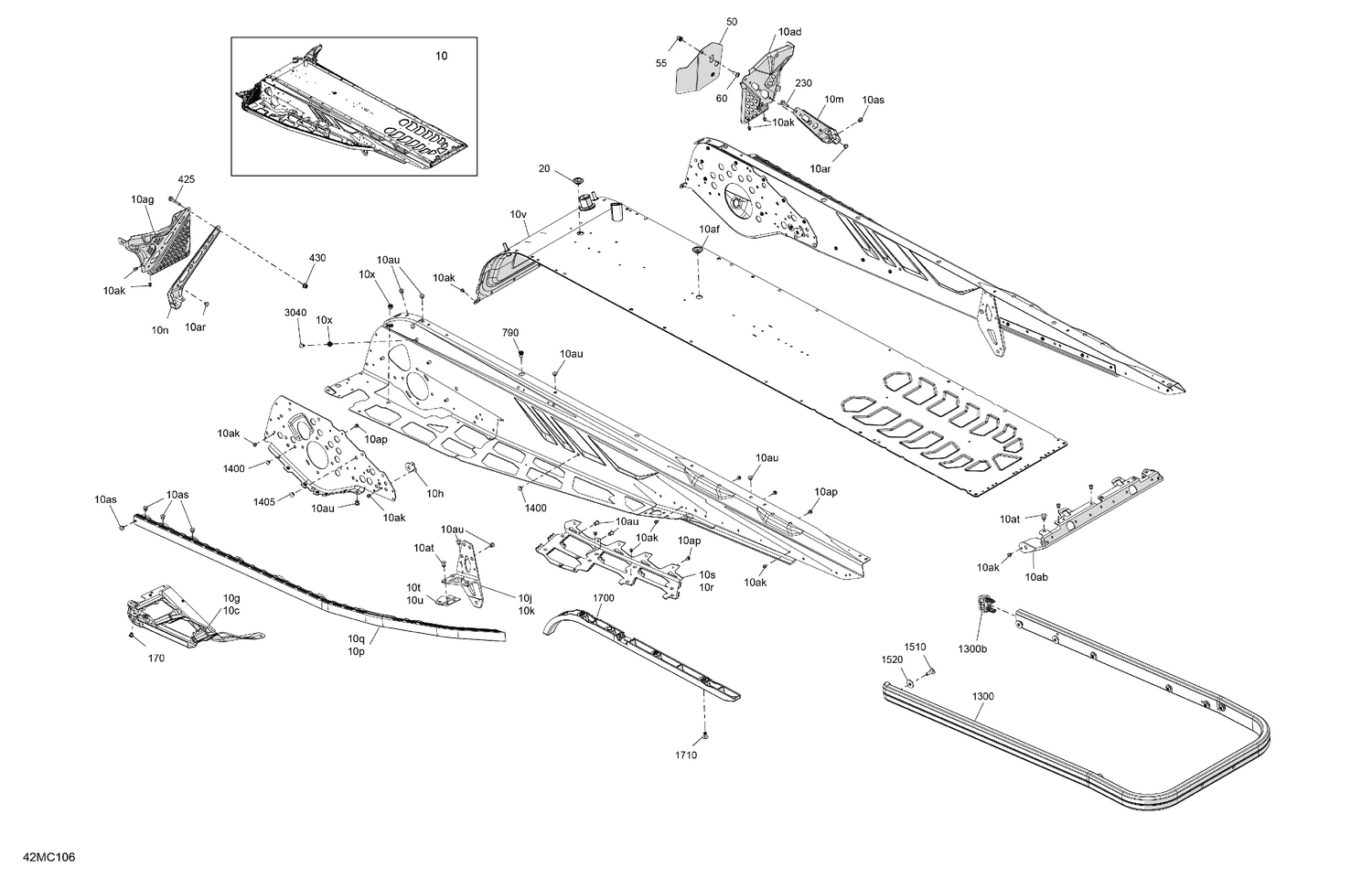

| Ref | Part Number | Description |
|---|
| 10ab |
518328990 |
Rear Cap |
| 10ad |
518334509 |
RH Footrest |
| 10af |
293730052 |
Black, Plug |
| 10ag |
518334305 |
LH Foot Protector This part replaces 518331559. |
| 10ak |
293150203 |
Rivet Avibulb 3/16 |
| 10ap |
293150245 |
Henrob Rivet |
| 10ar |
293150264 |
Rivet Ornit 6,5 X 10.5 |
| 10as |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10at |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 10au |
293150266 |
Ornit Rivet 6,5 X 14.5 |
| 10c |
518332803 |
Deep Black, RH Footrest Reinforcement |
| 10g |
518332802 |
Deep Black, LH Footrest Reinforcement |
| 10h |
518335959 |
Front Suspension Arm Reinforcement This part replaces 518329659. |
| 10j |
518334406 |
LH Rear Suspension Support |
| 10k |
518334407 |
RH Rear Suspension Support This part replaces 518334407. |
| 10m |
518334507 |
Stirrup Reinforcement |
| 10n |
518332924 |
Deep Black, LH Chassis Reinforcement |
| 10p |
518328451 |
RH Roller |
| 10q |
518328452 |
LH Roller |
| 10r |
518331564 |
RH Central Tunnel Reinforcement |
| 10s |
518331565 |
LH Central Tunnel Reinforcement |
| 10t |
518329088 |
LH Reinforcement Plate |
| 10u |
518329089 |
RH Reinforcement Plate |
| 10v |
518334491 |
Radiator Tunnel 154 Ass'y |
| 10x |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 20 |
293730052 |
Black, Plug |
| 50 |
518331823 |
Heat Shield |
| 55 |
293450275 |
Insert |
| 60 |
250000717 |
Torx Head Screw M6 X 16 |
| 170 |
293450267 |
Insert M5 - 0.8 |
| 230 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 425 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 790 |
293450278 |
Insert |
| 1300b |
520001629 |
Bumper Cap |
| 1400 |
293730047 |
Black, Dart 8 mm |
| 1405 |
293730060 |
Black, Dart 10 mm |
| 1510 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1520 |
224061201 |
Flat Washer |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
