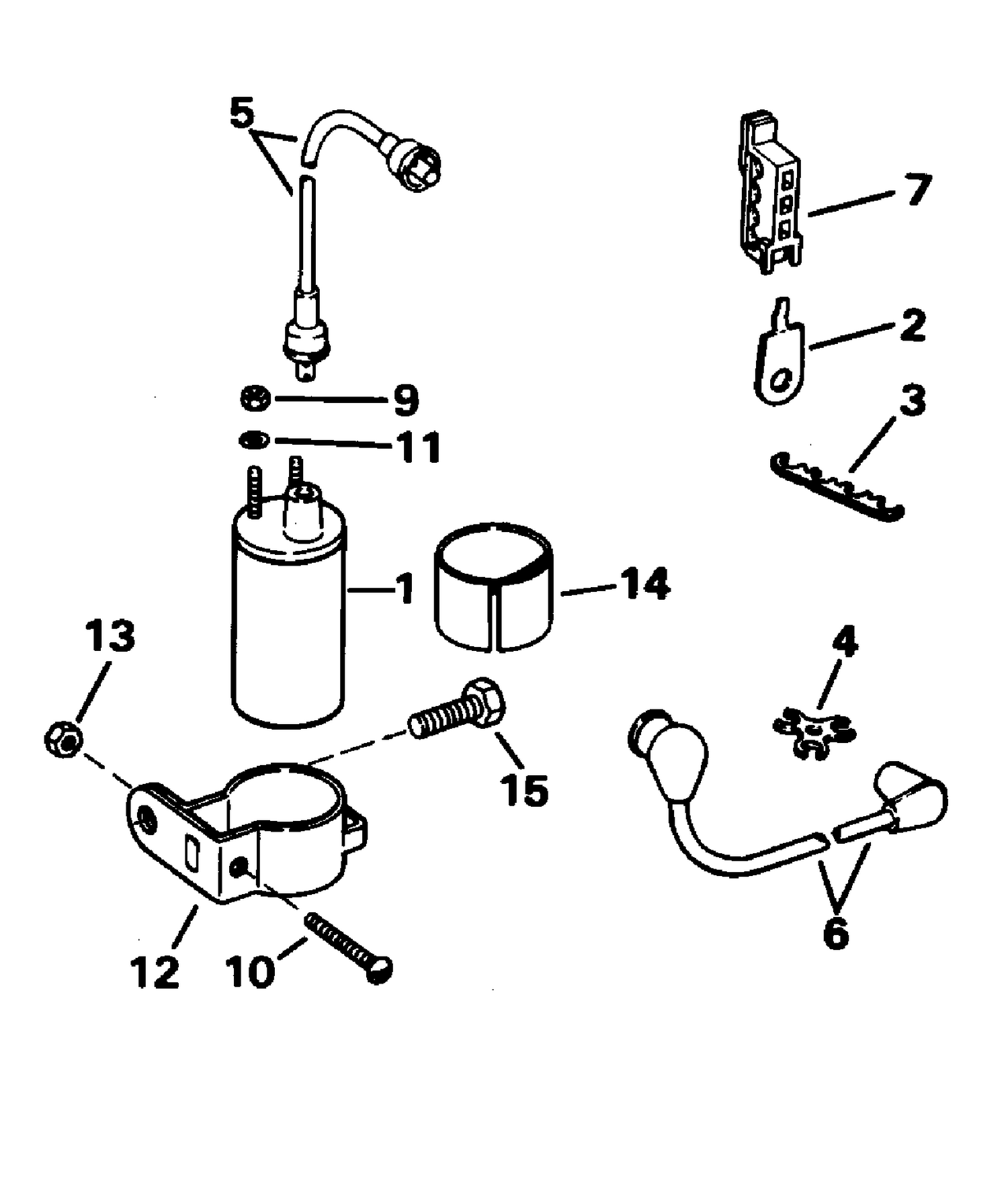

IGNITION COIL & LEADS
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3852217 | COIL ASSY. Ignition |
| 2 | 3852826 | BRACKET, Lead retainer |
| 3 | 3852491 | RETAINER, 4 Wire |
| 4 | 3852492 | RETAINER, 3 wire |
| 5 | 3854034 | LEAD ASSY., Distributor to coil |
| 6 | 3853819 | LEAD ASSY., Cylinder #7 |
| 6 | 3853820 | LEAD ASSY., Cylinder #3 & 6 |
| 6 | 3853822 | LEAD ASSY., Cylinders #1 & 5 |
| 6 | 3853823 | LEAD ASSY., Cylinders #4 & 8 |
| 6 | 3853826 | LEAD ASSY., Cylinder #2 |
| 7 | 3852619 | RETAINER |
| 12 | 3852218 | BRACKET, Oil cooler |
| 13 | 3852079 | BRACKET, Oil cooler |
| 14 | 3853236 | SLEEVE, Ignition coil |
