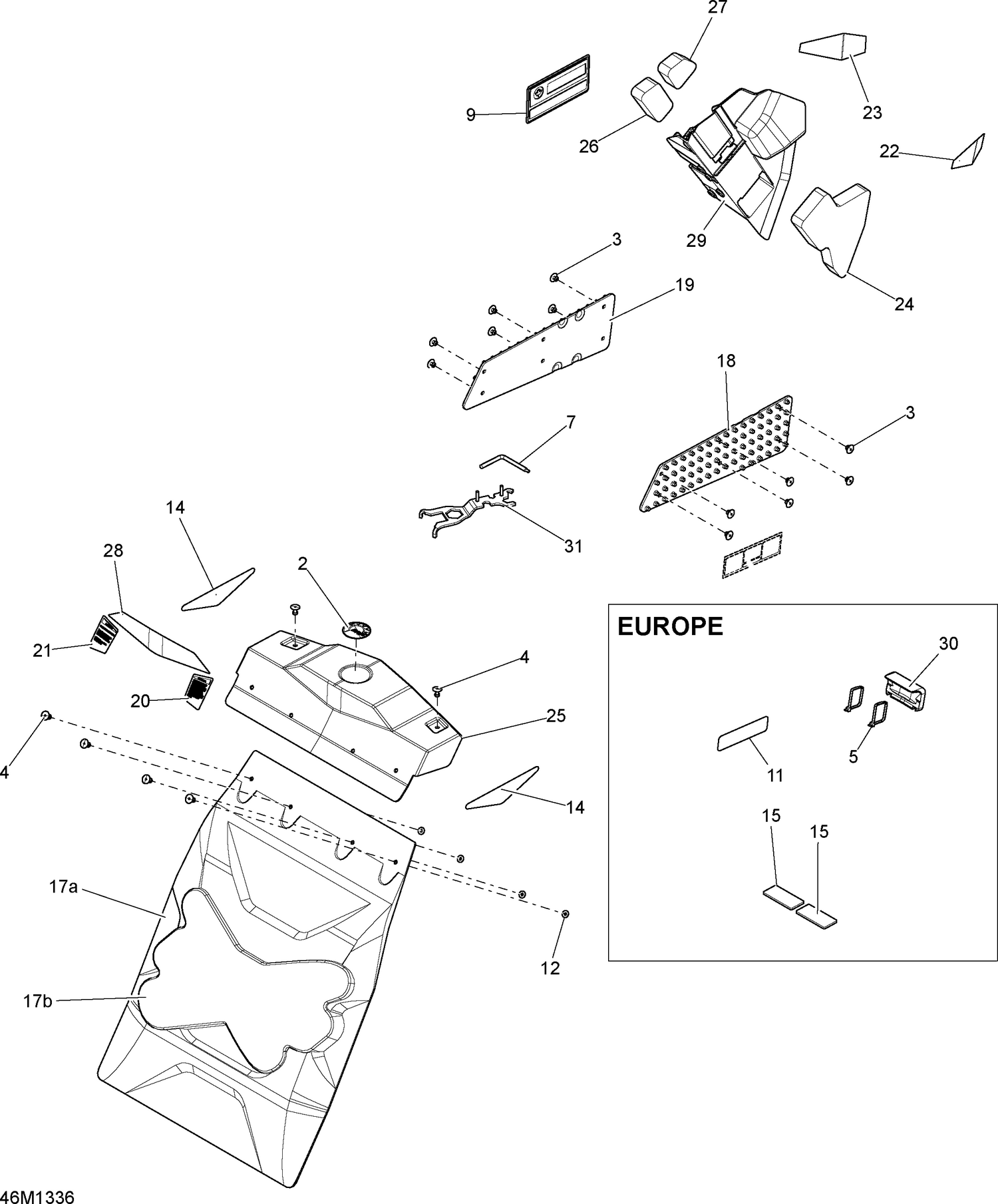

09- Utilities
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 219903947 | BRP Logo 48 mm |
| 3 | 293150103 | Pop Rivet 3/16" |
| 4 | 293150104 | Pop Rivet 3/16" |
| 7 | 417127044 | Belt Installation Tool |
| 12 | 517225900 | Flat Washer |
| 17a | 520001441 | Snow Flap This part replaces 520000669. |
| 17b | 516003647 | Decal X |
| 18 | 860200164 | Grip Plate Kit |
| 19 | 860200164 | Grip Plate Kit |
| 20 | 516005590 | WARNING DECAL, TRACK - Call your local BRP dealership |
| 21 | 516005591 | Warning Decal, Cargo |
| 22 | 520000718 | Yellow, RH Front Reflector |
| 23 | 520000719 | Yellow, LH Front Reflector |
| 24 | 520001059 | Foam |
| 25 | 520000750 | COVER - Call your local BRP dealership |
| 26 | 520001061 | Foam |
| 27 | 520001062 | Foam |
| 28 | 520001327 | REFLECTOR - Call your local BRP dealership |
| 29 | 520000842 | Tool Kit Rack |
