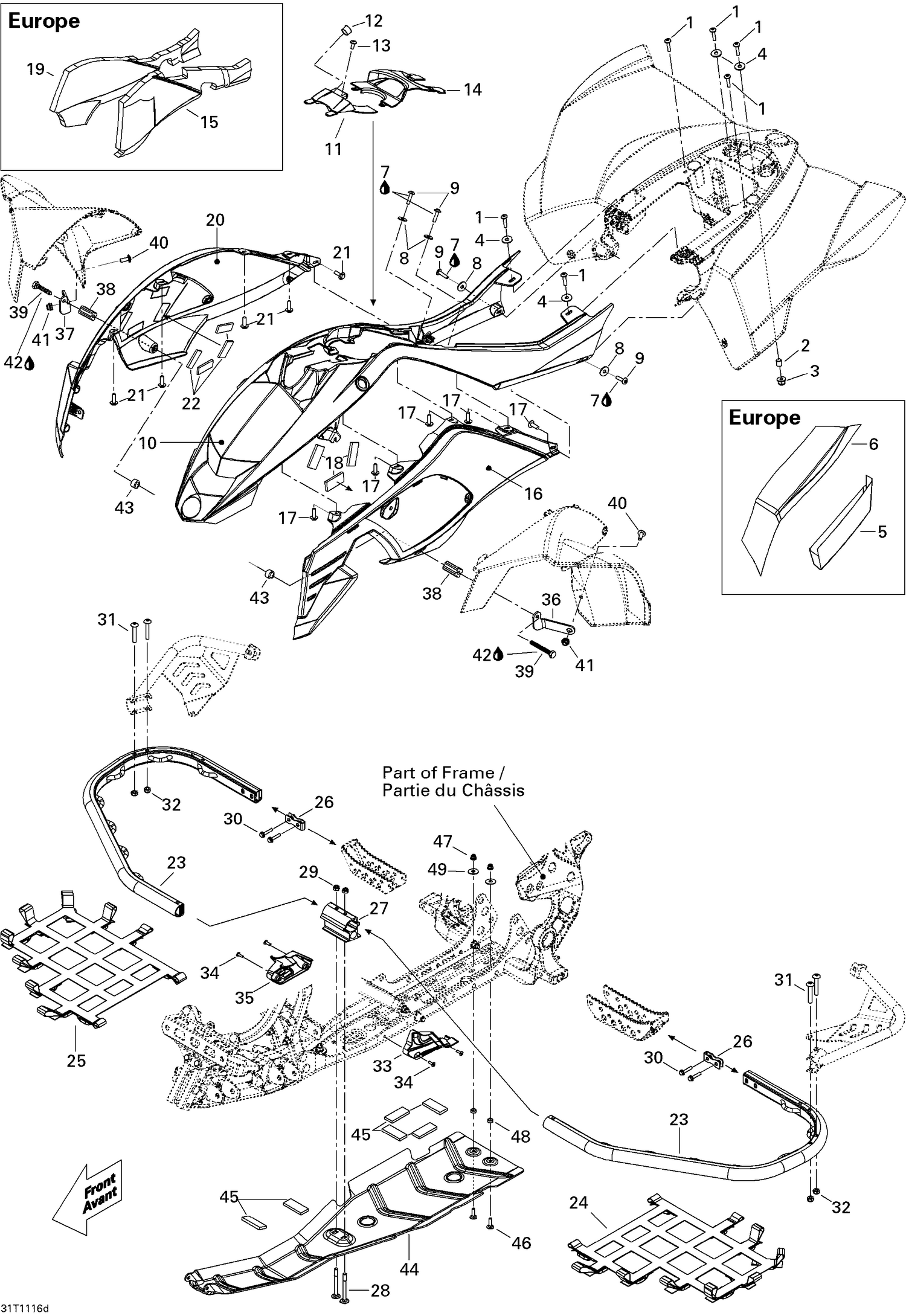

| Ref | Part Number | Description |
|---|
| 1 |
250000762 |
Torx Screw M5 X 25 This part replaces 250000300. |
| 2 |
709000162 |
Bushing |
| 3 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 4 |
391301600 |
Washer |
| 5 |
705003351 |
Reflective Sheet |
| 6 |
705003357 |
Reflective Sheet |
| 7 |
293800060 |
Loctite 243, 10 ml |
| 8 |
234062670 |
Stainless Steel Flat Washer |
| 9 |
250000284 |
Torx Screw M6 x 25 |
| 10 |
705002157 |
Front fascia |
| 11 |
705003316 |
DASH-BOARD - Call your local BRP dealership |
| 12 |
572051500 |
Cap |
| 13 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 14 |
705002288 |
ACCESS COVER - Call your local BRP dealership |
| 15 |
705003293 |
L.H. Foam |
| 16 |
705002961 |
LH SIDE PANNEL - Call your local BRP dealership |
| 17 |
243141630 |
Hex. Plastic Screw M4.8 X 16 |
| 18 |
XXX |
Not Available As Spare Parts |
| 19 |
705003292 |
R.H. Foam |
| 20 |
705002962 |
RH SIDE PANNEL - Call your local BRP dealership |
| 21 |
243141630 |
Hex. Plastic Screw M4.8 X 16 |
| 22 |
XXX |
Not Available As Spare Parts |
| 23 |
705003065 |
NERF BAR - Call your local BRP dealership |
| 24 |
705001952 |
LH NET - Call your local BRP dealership |
| 25 |
705001953 |
RH NET - Call your local BRP dealership |
| 26 |
705002646 |
ATTACHMENT PLATE - Call your local BRP dealership |
| 27 |
705003761 |
NERF BAR HOLDER - Call your local BRP dealership This part replaces 705002580. |
| 28 |
207788036 |
CARRIAGE BOLT M8 X 80 - Call your local BRP dealership |
| 29 |
232581434 |
Elastic Stop Nut |
| 30 |
207682534 |
Hex. Flange Screw M8 X 25 |
| 31 |
250000761 |
Torx Truss Screw M8 X 50 This part replaces 250000298. |
| 32 |
232581434 |
Elastic Stop Nut |
| 33 |
705002631 |
LH ENGINE MOULDING - Call your local BRP dealership |
| 34 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 35 |
705002632 |
RH Engine Moulding |
| 36 |
705002695 |
LH FENDER SUPPORT - Call your local BRP dealership |
| 37 |
705002696 |
RH FENDER SUPPORT - Call your local BRP dealership |
| 38 |
705002697 |
BUSHING - Call your local BRP dealership |
| 39 |
207066060 |
HEX. SCREW M6 X 60 - Call your local BRP dealership |
| 40 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 41 |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 42 |
293800060 |
Loctite 243, 10 ml |
| 43 |
293900067 |
BUSHING - Call your local BRP dealership |
