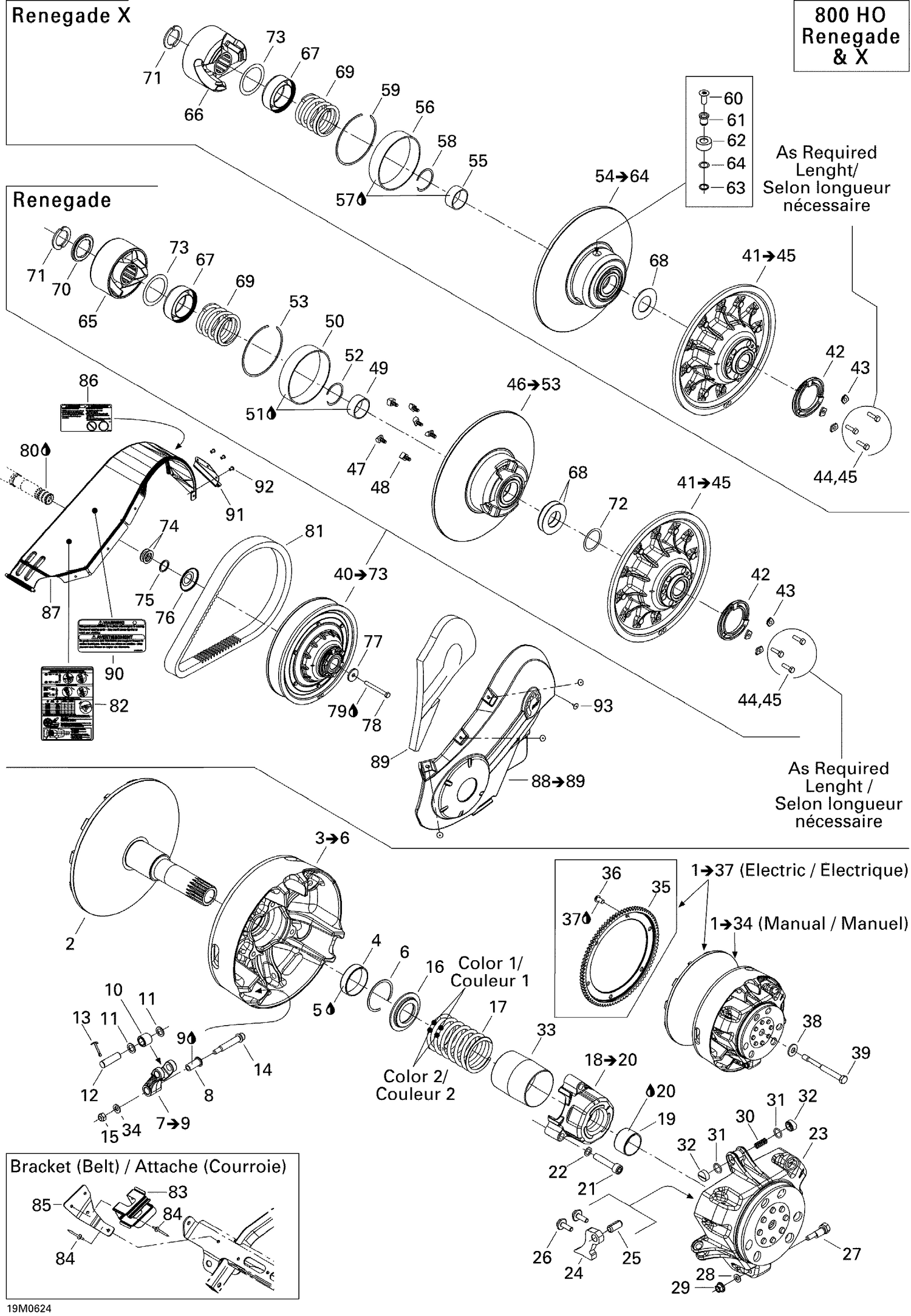

05- Pulley System
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 417222970 | Flasque Fixe As*Flange-Fixe Ass. This part replaces 417222167. |
| 4 | 417222758 | Bushing |
| 5 | 413703100 | Loctite 609, 10 ml |
| 6 | 293370037 | Circlip |
| 8 | 417222633 | Bushing |
| 9 | 413703100 | Loctite 609, 10 ml |
| 10 | 417222947 | Roller This part replaces 417003900. |
| 11 | 417004302 | Stopper Washer |
| 13 | 250400060 | Cotter Pin This part replaces 732958001. |
| 14 | 417222028 | SCREW ASS'Y - Call your local BRP dealership |
| 15 | 232561414 | Elastic Stop Nut M6 |
| 16 | 417222312 | Spring Seat |
| 17 | 415015400 | Spring, Violet/green |
| 19 | 417009204 | Bushing |
| 20 | 413703100 | Loctite 609, 10 ml |
| 21 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 22 | 250200009 | Lock Washer 8 mm |
| 23 | 417222213 | Governor Cup |
| 24 | 417222548 | RAMP 415 - Call your local BRP dealership |
| 25 | 250400050 | Spring Pin M10 X 22 This part replaces 250400009. |
| 26 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip This part replaces 250000059. |
| 27 | 417222955 | CALIBRATION SCREW - Call your local BRP dealership This part replaces 417005500. |
| 28 | 417005600 | Washer |
| 29 | 233061414 | Hex. Flange Nut M6 |
| 30 | 417005700 | Spring |
| 31 | 732401030 | O-Ring |
| 32 | 417223021 | Slider Shoe This part replaces 417222362. |
| 33 | 417009205 | Guard |
| 34 | 234061410 | Flat Washer 6 mm |
| 38 | 250200006 | Spring Washer 14 mm |
| 39 | 417120000 | Drive Pulley Bolt |
| 42 | 415005800 | Adjustment Ring |
| 43 | 415005900 | Adjustment Shim |
| 44 | 207162544 | Hex. Screw M6 X 25 |
| 45 | 207162244 | HEX. SCREW M6 X 22 - Call your local BRP dealership |
| 67 | 417126381 | GUARD - Call your local BRP dealership |
| 69 | 417126688 | SPRING, GREEN - Call your local BRP dealership |
| 71 | 417126734 | HALF KEY - Call your local BRP dealership |
| 73 | 417126322 | SWIVEL ABUTMENT - Call your local BRP dealership |
| 74 | 417300252 | Spacer |
| 74 | 417300265 | Spacer |
| 75 | 504112000 | Shim |
| 76 | 417300238 | PROTECTOR - Call your local BRP dealership |
| 77 | 517302322 | Strength Washer |
| 78 | 207087544 | HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 79 | 293800060 | Loctite 243, 10 ml |
| 80 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 81 | 417300551 | Drive Belt This part replaces 417300166. |
| 82 | 516002616 | DECAL, SUSPENSION ADJUSTMENT - Call your local BRP dealership |
| 83 | 517281905 | Bracket |
| 84 | 390402200 | Pop Rivet 3/16" |
| 85 | 417300282 | Bracket |
| 86 | 516002674 | EMERGENCY STARTING LABEL - Call your local BRP dealership |
| 87 | 417300213 | BELT GUARD - Call your local BRP dealership |
| 89 | 417300246 | Foam |
| 90 | 516002670 | WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership |
| 91 | 417300216 | BELT GUARD BRACKET - Call your local BRP dealership |
| 92 | 390909200 | Avex Rivet |
