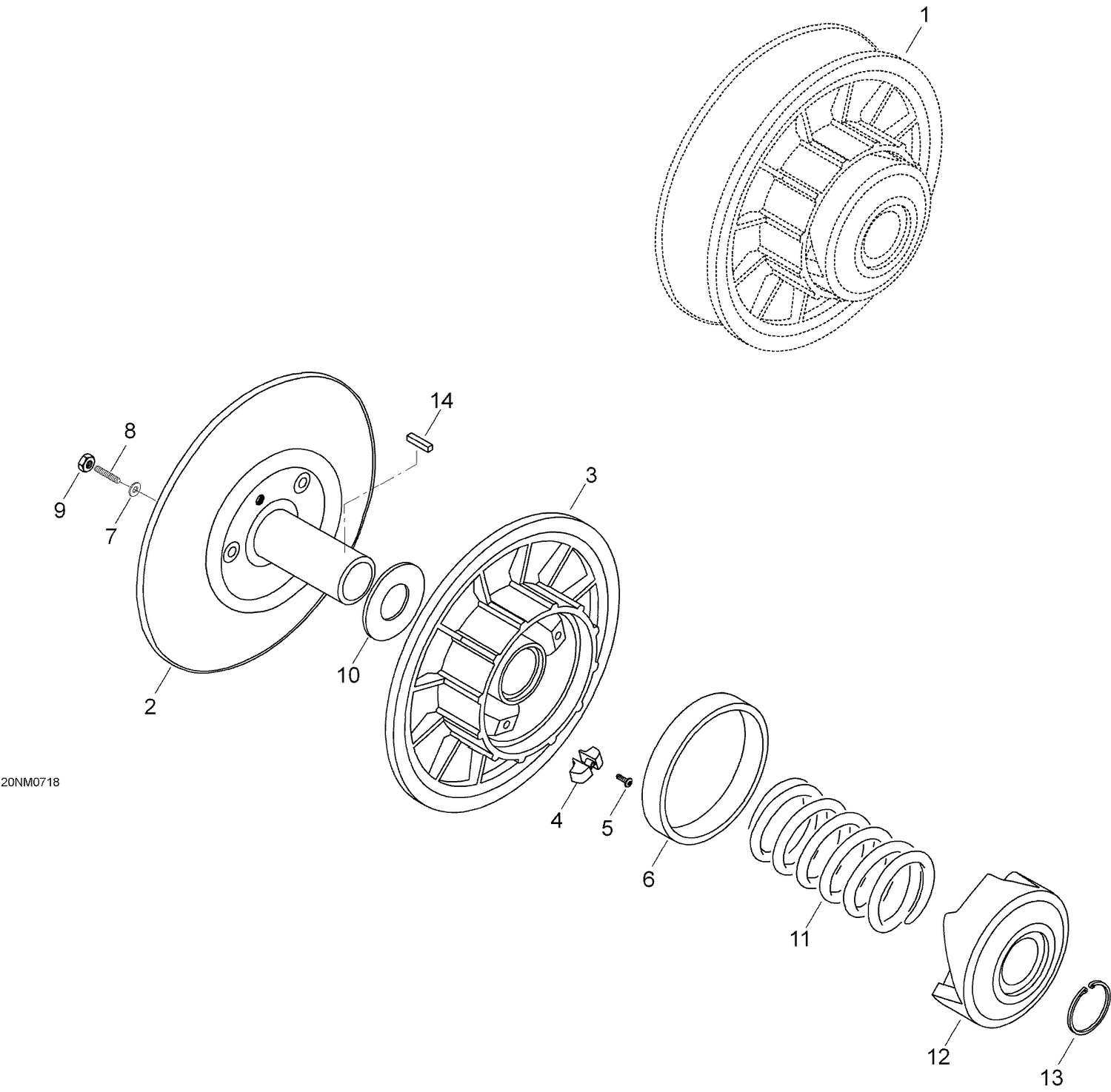

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Driven pulley |
| 2 |
140065 |
Fixed flange |
| 3 |
140066 |
Sliding pulley - Call your local BRP dealership |
| 4 |
140068 |
Shoe cam slider |
| 5 |
Not |
Available As Spare Part - Screw |
| 6 |
140053 |
Bushing |
| 7 |
420245370 |
WASHER - Call your local BRP dealership |
| 8 |
Not |
Available As Spare Part - Hex. screw set |
| 9 |
232061414 |
Nut |
| 10 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 11 |
140069 |
Release spring, black |
| 12 |
140070 |
Cam 35/30 degr. |
| 13 |
371903100 |
CIRCLIP - Call your local BRP dealership |
