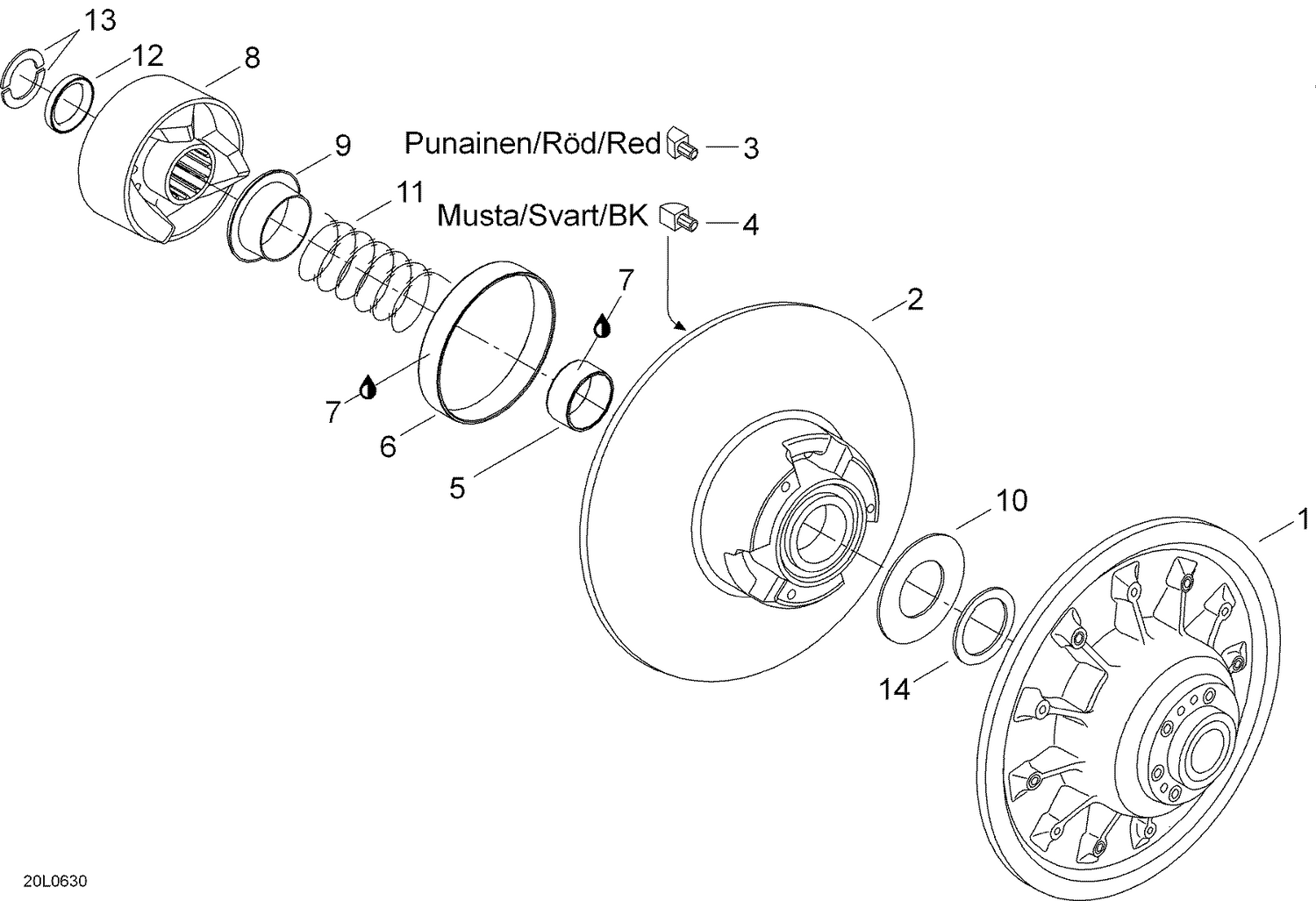

| Ref | Part Number | Description |
|---|
| 1 |
417126526 |
Fixed flange assy |
| 3 |
417126373 |
Front cam shoe slide, RD |
| 4 |
417126374 |
Front cam shoe slide, BK |
| 5 |
417126901 |
BUSHING - Call your local BRP dealership This part replaces 415092600. |
| 6 |
415092700 |
Bushing |
| 7 |
413703100 |
Loctite 609, 10 ml |
| 8 |
417126445 |
CAM ASS'Y - Call your local BRP dealership This part replaces 417126574. |
| 9 |
415006000 |
GUARD - Call your local BRP dealership |
| 10 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 11 |
415092800 |
YELLOW SPRING - Call your local BRP dealership |
| 12 |
417126375 |
Spacer |
| 13 |
371911000 |
HALF KEY - Call your local BRP dealership |
