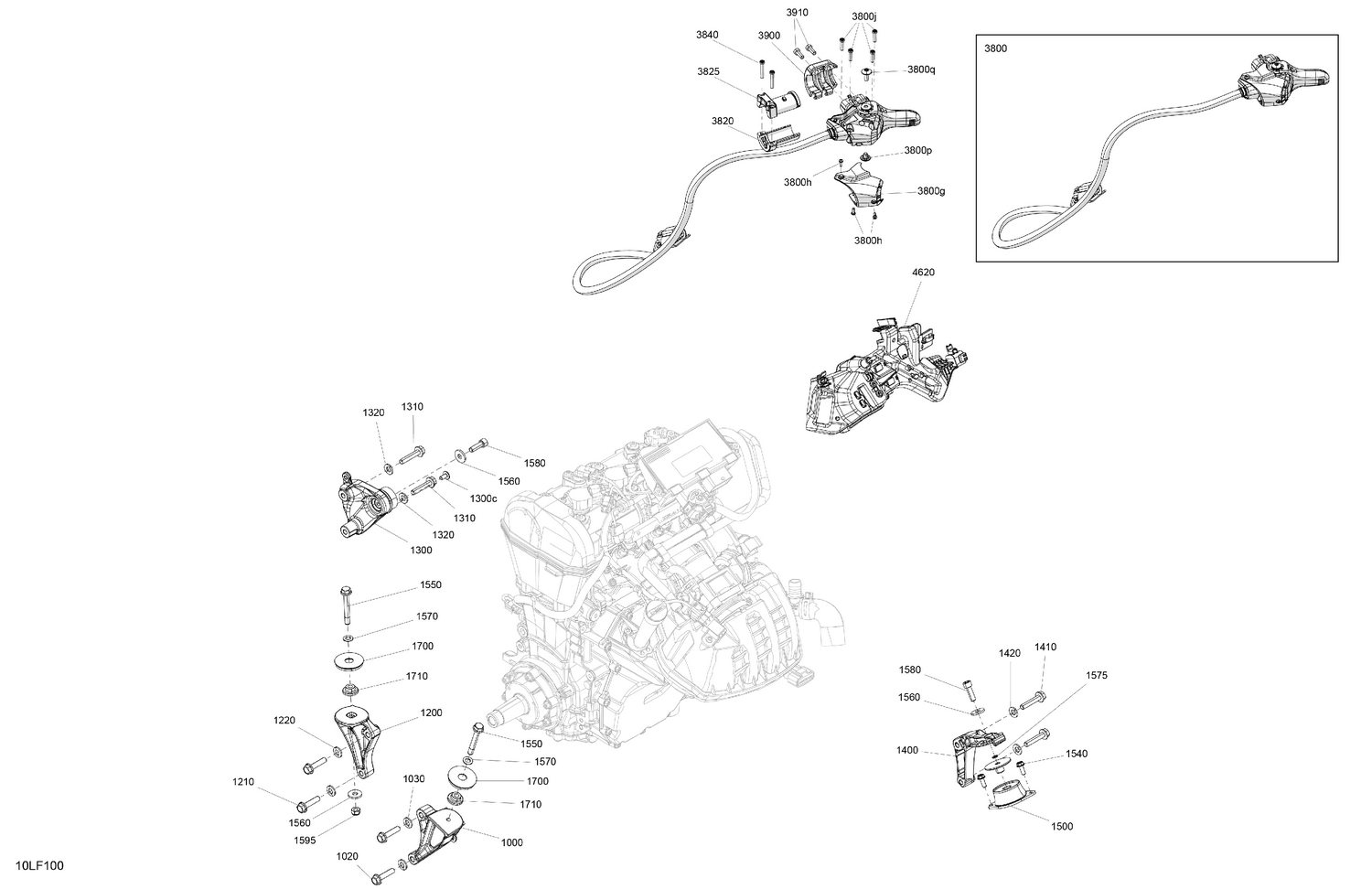

02- Engine - System
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1000 | 512061220 | Rear PTO Support |
| 1020 | 250000986 | Hex. Flanged Screw M8 X 35 |
| 1030 | 250200146 | Conical Spring Washer M8 |
| 1200 | 512061193 | Front PTO Support |
| 1210 | 250000986 | Hex. Flanged Screw M8 X 35 |
| 1220 | 250200146 | Conical Spring Washer M8 |
| 1300c | 250000767 | Torx Truss Screw M6 X 12 |
| 1310 | 250001057 | Hex. Flanged Screw M8 X 40 Scotch.GRIP |
| 1320 | 250200146 | Conical Spring Washer M8 |
| 1400 | 512061194 | Rear Support, Mag |
| 1410 | 250001057 | Hex. Flanged Screw M8 X 40 Scotch.GRIP |
| 1420 | 250200146 | Conical Spring Washer M8 |
| 1500 | 512061514 | Rubber Mount |
| 1540 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 1550 | 207586044 | Hex. Flange Screw M8 X 60, Scotch Grip |
| 1560 | 503183200 | Yellow, Washer |
| 1570 | 250200008 | Flat Washer With Teflon 8 mm |
| 1575 | 293300123 | O Ring |
| 1580 | 205082544 | Socket Screw M6 X 20, Scotch Grip |
| 1595 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1700 | 512061536 | Engine Stopper |
| 1710 | 512061497 | Spacer |
| 3800g | 512060862 | Cap |
| 3800h | 250000623 | Torx Screw M2.9 x 9.5 |
| 3800j | 250000671 | Torx Screw |
| 3800p | 512060961 | Screw |
| 3800q | 250001059 | Torx Truss Head Screw W Nylon M5X14 |
| 3820 | 512061550 | Lower Handle Support |
| 3825 | 512061551 | Upper Handle Support |
| 3840 | 250000263 | Torx Screw #8-18 |
| 3900 | 512060987 | Front Housing |
| 3910 | 250000632 | Torx Screw M5 x 14 |
