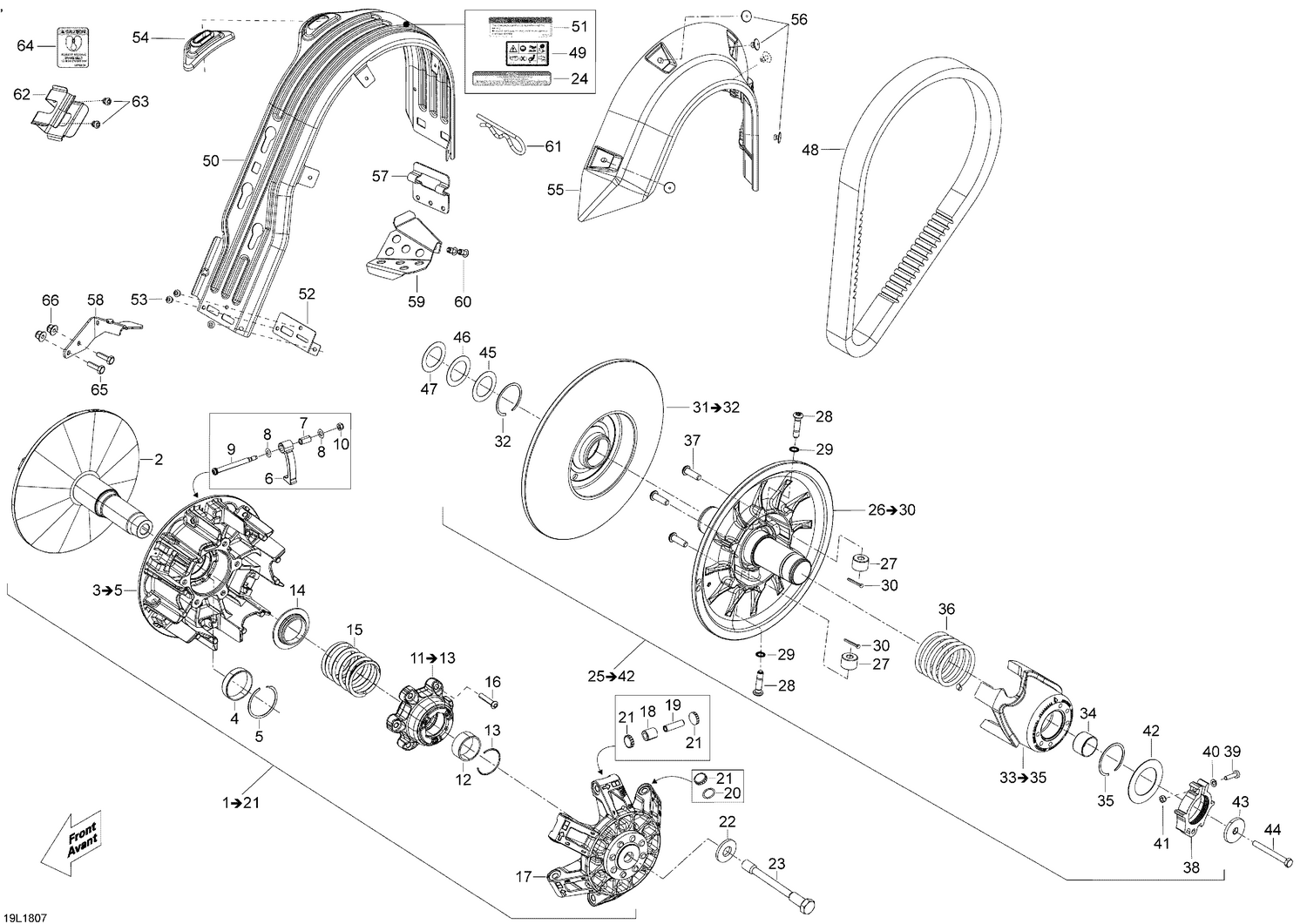

05- Pulley Yeti - 600 ACE
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 417224091 | Fixed Flange Ass'y |
| 4 | 417222758 | Bushing Outer Half |
| 5 | 293370037 | Circlip |
| 6 | 417223508 | Ramp 716 Ass'y |
| 8 | 417223255 | Thrust Washer |
| 9 | 417223694 | Axle Ramp |
| 10 | 232551414 | Elastic Stop Nut M5 |
| 14 | 417223752 | Spring Seat |
| 15 | 417223747 | Spring (Red / White, 356-600N / 80-135lbs) |
| 16 | 250000580 | Torx Screw M6 X 30 |
| 17 | 417223865 | Governor Cup Ass'y |
| 18 | 417223767 | Roller |
| 19 | 417223257 | Roller Axle |
| 20 | 293300185 | O-Ring |
| 21 | 417223919 | Slider Shoe |
| 22 | 250200144 | Conical Spring Washer M14 |
| 23 | 417300432 | Drive Pulley Bolt |
| 24 | 516005503 | Decal, Notice, Drive Pulley Bolt |
| 26 | 417127433 | Fixed Flange Ass'y |
| 31 | 417127366 | Sliding Flange Ass'y |
| 33 | 417127413 | Cam Ass'y (37/45º) |
| 36 | 417127344 | Spring (Pink, 204-367N / 46-83lbs) |
| 38 | 415129604 | Pulley Adjuster Ass'y |
| 39 | 205052544 | Socket Head Screw M10 x 1.5 |
| 40 | 234051410 | Flat Washer M5 |
| 41 | 232551414 | Elastic Stop Nut M5 |
| 42 | 417127155 | Washer |
| 43 | 517302322 | Vahvike aluslevy |
| 44 | 207287544 | Hex. Cap Screw M8 X 75 |
| 45 | 417300252 | Spacer |
| 46 | 417300265 | Spacer |
| 47 | 504112000 | Justering bricka |
| 48 | 417300585 | Drive Belt This part replaces 417300127. |
| 49 | 516003919 | Warning label (EU models) |
| 50 | 417300382 | Belt Guard |
| 51 | 516006900 | Driven Pulley Shield Warning Decal |
| 52 | 417300380 | Reinforcement |
| 53 | 390909200 | Avex Rivet |
| 54 | 417300381 | Guide rubber |
| 55 | 417300356 | Side Protector |
| 56 | 293150103 | Pop Rivet 3/16 |
| 57 | 417300363 | Belt Guard Bracket |
| 58 | 417300451 | BELT GUARD BRACKET - Call your local BRP dealership |
| 59 | 518325626 | Brake tube protector |
| 60 | 293150163 | Rivet Hucklok |
| 61 | 114045200 | Hair Pin |
| 62 | 517281905 | Drive Belt Bracket |
| 63 | 390909100 | Avex Rivet |
