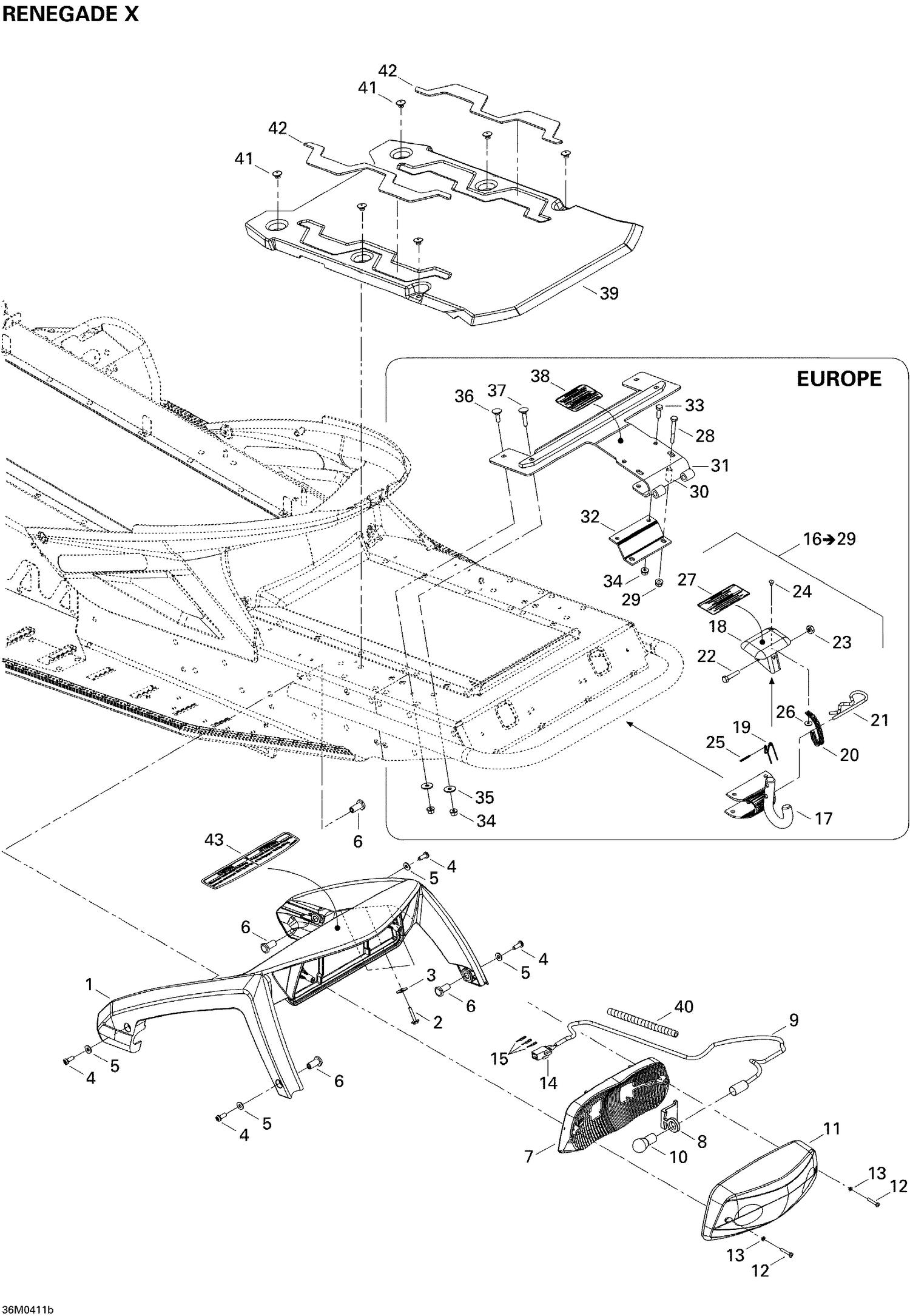

09- Luggage Rack (Renegade X)
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 250000068 | Hex. Tapping Screw #8 X 5/8" |
| 3 | 250200040 | Flat Washer |
| 4 | Not | Available As Spare Part - Socket head Screw M6 |
| 5 | 250200039 | Flat Washer |
| 6 | 511000260 | Insert |
| 7 | 510004018 | REFLECTOR - Call your local BRP dealership |
| 8 | 414979411 | Rubber Damper |
| 10 | 520000758 | Bulb This part replaces 410504100. |
| 11 | 511000315 | Lens |
| 12 | 209632580 | PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership |
| 13 | 414516400 | Washer - Call your local BRP dealership |
| 14 | 515175494 | Male Housing, 3 Circuits |
| 15 | 515175232 | Male Terminal |
| 17 | 517199300 | Hitch |
| 18 | 517152700 | Hitch Protector |
| 19 | 517152800 | SPRING - Call your local BRP dealership |
| 20 | Not | Available As Spare Part - Chain |
| 21 | 114045200 | Hair Pin |
| 22 | 207063044 | Hex. Screw M6 X 30 |
| 23 | 232561414 | Elastic Stop Nut M6 |
| 24 | 390409400 | RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership |
| 25 | 732804000 | SPRING PIN M3 X 24 - Call your local BRP dealership |
| 26 | Not | Available As Spare Part - Flat Washer |
| 27 | 516001243 | Security Label, Hitch |
| 39 | 511000313 | Radiator Cover |
| 40 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 41 | 293150103 | Pop Rivet 3/16" |
| 42 | 511000316 | Carpet |
