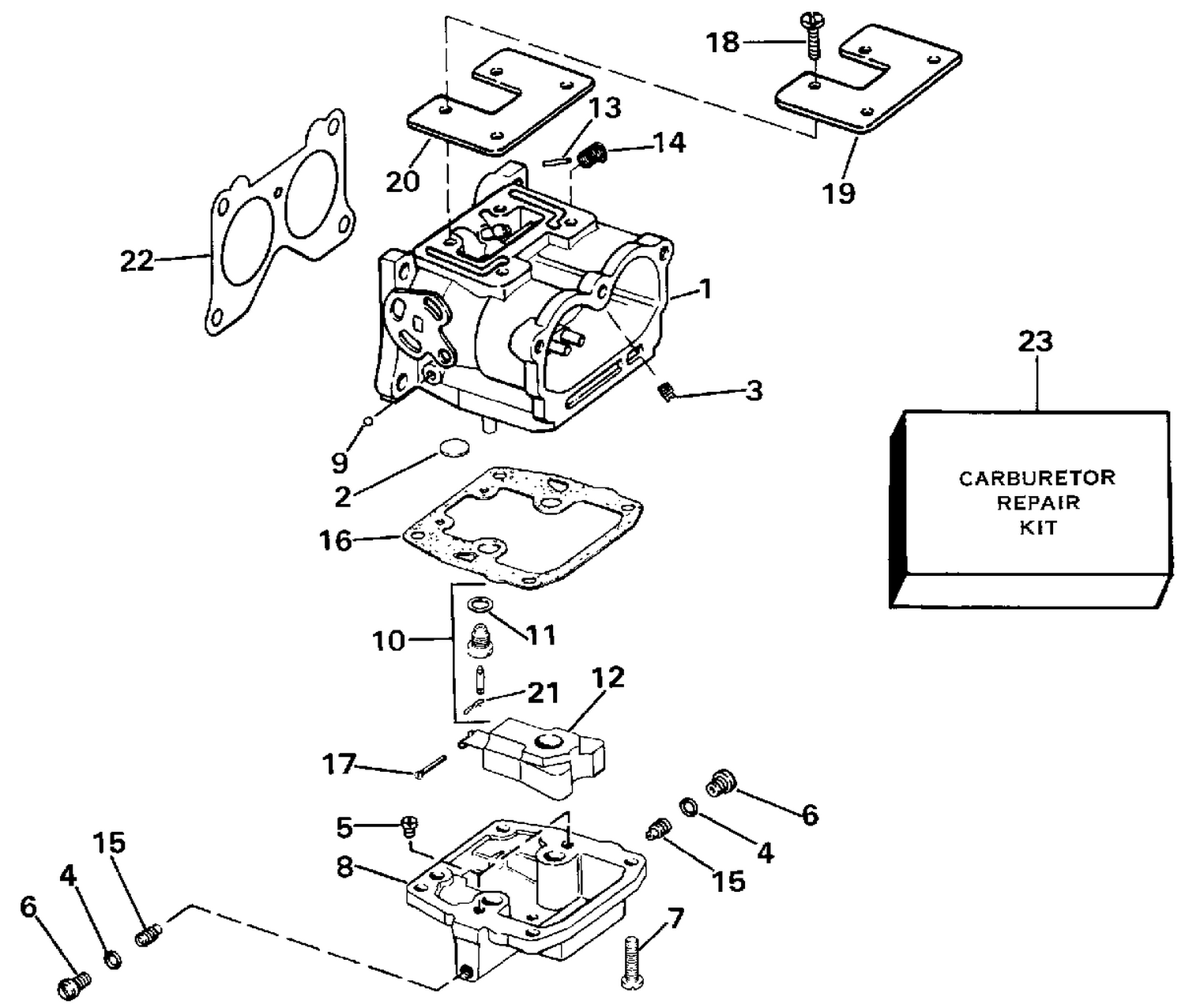

| Ref | Part Number | Description |
|---|
| 1 |
0398404 |
CARBURETOR ASSY. |
| 1 |
0398564 |
CARBURETOR ASSY. |
| 5 |
0323150 |
ORIFICE, Intermediate, No.38 |
| 6 |
0330131 |
CLAMP, Fuel filter |
| 8 |
0392376 |
FLOAT CHAMBER ASSY. |
| 8 |
0398544 |
FLOAT CHAMBER ASSY. |
| 12 |
0383437 |
FLOAT ASSEMBLY |
| 15 |
0320661 |
ORFICE PLUG (61C) |
| 16 |
0338884 |
GASKET, Float bowl This part replaces 0333418. |
| 18 |
0330133 |
SCREW, Breaker plate |
| 19 |
0334352 |
COVER, Idle channel This part replaces 0330132. |
| 20 |
0334353 |
GASKET, Cover This part replaces 0327931. |
| 21 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 22 |
0327707 |
GASKET, Air silencer |
