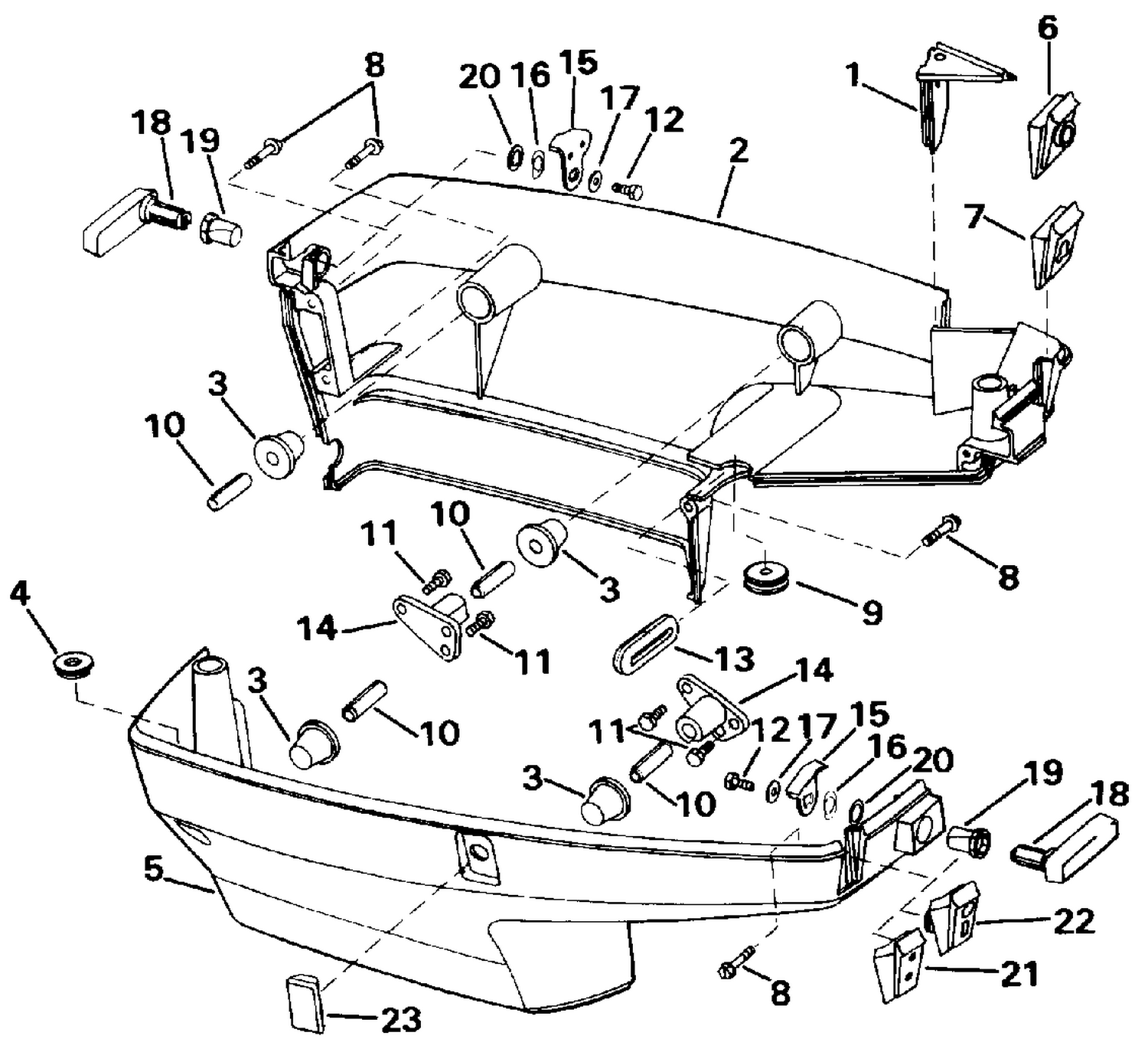

LOWER ENGINE COVER
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0333759 | BRACKET |
| 1 | 0344240 | BRACKET, Fuel conn. This part replaces 0333760. |
| 2 | 5004984 | Lmc Ay This part replaces 0333511. |
| 3 | 0332413 | MOUNT |
| 4 | 0320521 | GROMMET |
| 5 | 5004985 | Lmc Ay This part replaces 0332412. |
| 6 | 0333761 | BRACKET |
| 7 | 0340213 | GROMMET, Cable This part replaces 0334462. |
| 8 | 0332415 | SCREW |
| 9 | 0321452 | GROMMET |
| 11 | 0551793 | SCREW |
| 13 | 0344332 | SEAL, Steering arm This part replaces 0332441. |
| 14 | 0333772 | BRACKET |
| 15 | 0330253 | HOOK Front |
| 19 | 0334851 | BUSHING |
| 21 | 0334164 | GROMMET |
