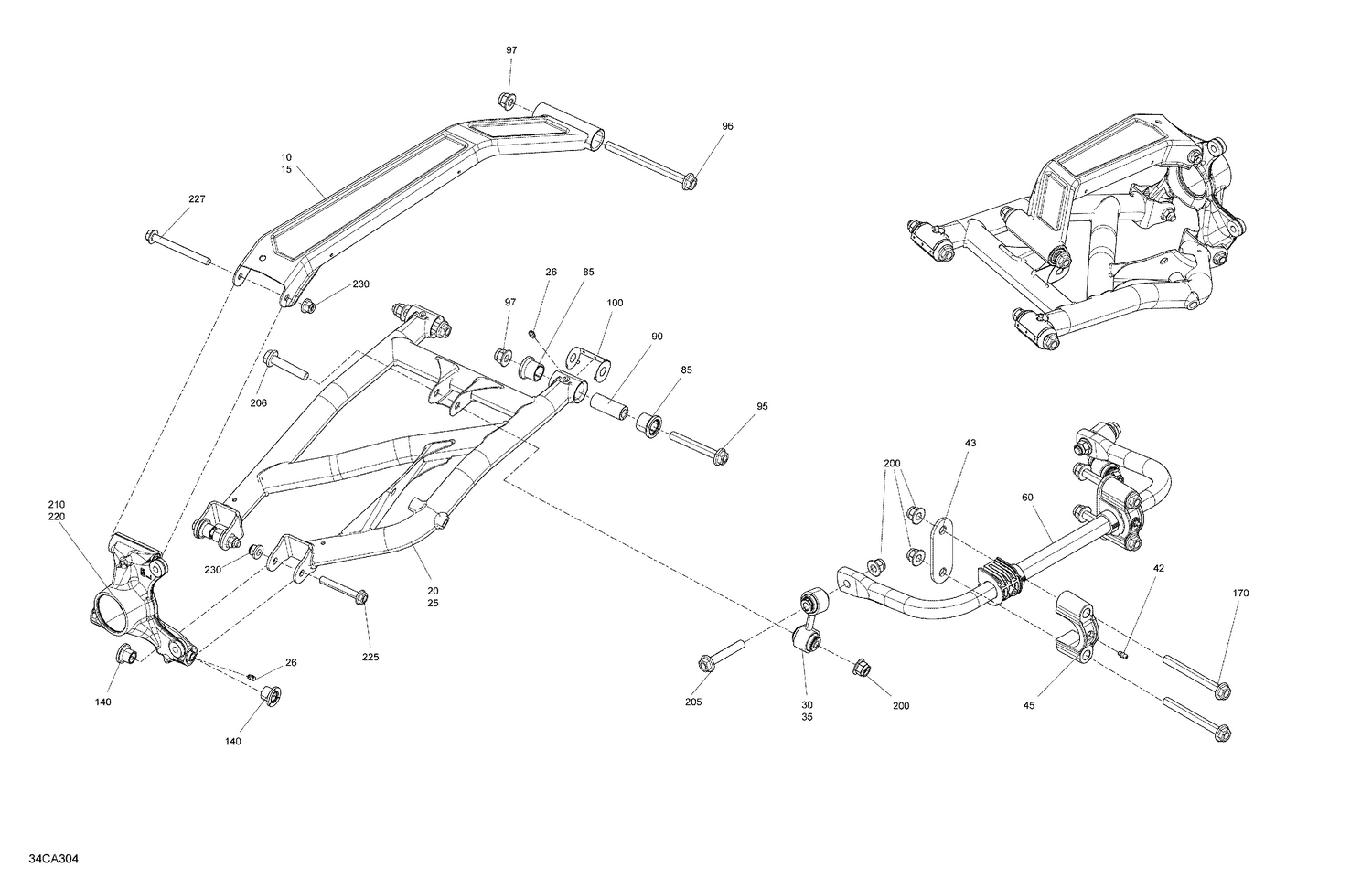

05- Suspension - Rear - Built Before January 17th 2021
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 26 | 408200700 | Grease Fitting |
| 30 | 706003004 | Sway Bar Double Link |
| 35 | 706003003 | Sway Bar Double Link |
| 42 | 408200700 | Grease Fitting |
| 43 | 706002977 | Plate Support |
| 45 | 706002970 | Clamp |
| 60 | 706003475 | Sway Bar Ass'y |
| 85 | 706204409 | Suspension Arm Bushing |
| 90 | 706202257 | Interior Bushing |
| 95 | 250000859 | Flange Screw M12 X 85 |
| 96 | 250000861 | Flange Screw M12 X 145 |
| 97 | 233221466 | Elastic Flange Nut M12 |
| 100 | 706202300 | Wear Plate |
| 140 | 703500875 | Suspension Arm Bushing Kit |
| 170 | 250000860 | Screw Flange M12 X 115 |
| 200 | 233221466 | Elastic Flange Nut M12 |
| 205 | 250000858 | Hex. Flange Screw M12 X 70 |
| 206 | 250000857 | Flange Screw M12 X 60 |
| 210 | 715006137 | LH Rear Knuckle Ass'y |
| 220 | 715006138 | RH Rear Knuckle Ass'y |
| 225 | 207607046 | Hex. Flange Screw M10 X 70 |
| 227 | 230600046 | Hex Flange Screw DIN.6921 - Call your local BRP dealership |
