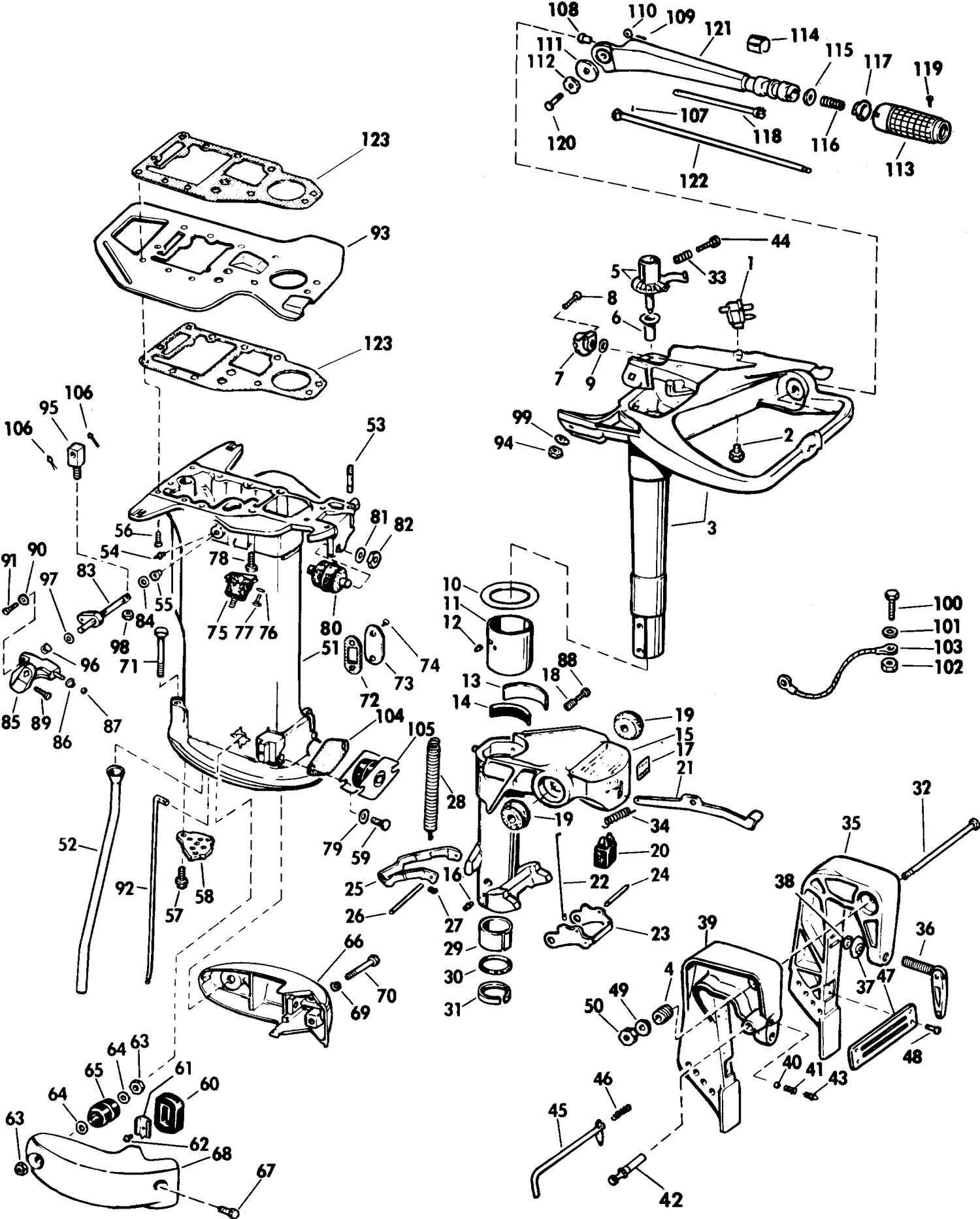

| Ref | Part Number | Description |
|---|
| 2 |
0309526 |
SCREW |
| 3 |
0387533 |
STEERING BRACKET |
| 4 |
0302051 |
SPRING Tilting bolt |
| 5 |
0309188 |
GEAR, Throttle control |
| 6 |
0303854 |
BUSHI:NG, Throttle control |
| 7 |
0303142 |
PINION, Control throttle |
| 8 |
0312491 |
SCREW, Clamp to bracket |
| 9 |
0303107 |
RONDELLE NYLON, barre |
| 10 |
0303867 |
THRUST WASHER, Pilot shaft |
| 11 |
0303936 |
LINER, Swivel bracket, supper |
| 12 |
0303696 |
PIN |
| 13 |
0303928 |
PLATE, Co-pilot |
| 14 |
0303929 |
SPACER, Co-pilot plate |
| 15 |
0378935 |
SWIVEL BRACEKT ASSY. |
| 17 |
0317595 |
TRANSFER, Tilt lock |
| 19 |
0302637 |
WASHER, Conical tilt bolt |
| 20 |
0305365 |
BUMBER, Tilting, swivel bracket |
| 21 |
0303863 |
ARM, Manual locking elver |
| 22 |
0303957 |
LINK, Reverse lock arm |
| 23 |
0303953 |
LINK, Reverse lock |
| 24 |
0303956 |
CLAMP, Hose, small |
| 25 |
0303954 |
LEVER, Locking reverse |
| 26 |
0303955 |
ROD, Reverse lock |
| 28 |
0303971 |
SPRING, Reverse lock |
| 29 |
0309075 |
LINER, Swivel bracket, lower |
| 31 |
0329170 |
SPACER, Swivel bracket, lower |
| 32 |
0305495 |
BOLT, Tilting |
| 33 |
0309247 |
RESSORT |
| 34 |
0306265 |
SPRING, Bolt to arm |
| 35 |
0395431 |
STERN BRACKET ASSY., Port This part replaces 0391941. |
| 38 |
0321923 |
PLATE&SCREW AY |
| 39 |
0383460 |
STERN BRACKET ASSY, Stbd. (includes items 80, 81 & 82) |
| 41 |
0307455 |
SPRING |
| 42 |
0307456 |
PIN |
| 43 |
0307457 |
FITTING, Lube |
| 44 |
0304573 |
SCR., Idle adj. |
| 45 |
0379485 |
ROD, Thrust |
| 46 |
0310377 |
SPRING, Thrust rid |
| 47 |
0310378 |
PLATE, Stern bracket |
| 48 |
0310379 |
SCREW |
| 49 |
0309335 |
WASHER |
| 50 |
0305496 |
LOCKNUT, Alternator to bracket |
| 51 |
0387535 |
EXHAUST HOUSING ASSY. |
| 52 |
0377060 |
TUBE WATER |
| 53 |
0304517 |
STUD, Cylinder |
| 55 |
0304791 |
BUSHING, Front control shaft |
| 57 |
0311615 |
SCREW, Cover |
| 58 |
0328570 |
COVER, Exhaust hsg. |
| 60 |
0554334 |
BUMPER, Exhaust tube |
| 61 |
0303961 |
RETAINER, Bumber |
| 62 |
0304012 |
SCREW, Retainer |
| 63 |
0303890 |
ACORN NUT, Lower side mount |
| 64 |
0304168 |
GASKET, Mount, lower side |
| 65 |
0303880 |
MOUNT, Rubber lower side |
| 66 |
0304446 |
HOUSING, Lower mount, port |
| 67 |
0309942 |
SCREW, Anchor bracket |
| 68 |
0304447 |
HOUSING, Lower mount, starboard |
| 69 |
0307708 |
RONDELLE GROWER This part replaces 0302865. |
| 70 |
0304452 |
SCREW, Mount housing |
| 72 |
0304023 |
GASKET, Cover plate |
| 73 |
0303862 |
COVER PLATE, Extension LONG SHAFT MODELS |
| 74 |
0303587 |
SCRES,Cover plate |
| 75 |
0380653 |
MOUNT, Rubber, upper side |
| 76 |
0303887 |
WASHEER, Pin to swivel bracket |
| 78 |
0331644 |
SCREW, Starter, mounting This part replaces 0326697. |
| 79 |
0303886 |
LOCKWASHER |
| 80 |
0303882 |
MOUNT, Rubber, upper front |
| 81 |
0127386 |
RONDELLE This part replaces 0303913. |
| 82 |
0363254 |
NUT, Stern bracket screw This part replaces 0321861. |
| 83 |
0380501 |
BRACKET & SHAFT, Shift |
| 85 |
0385044 |
HANDLE, Gearshift |
| 86 |
0311489 |
BUSHING |
| 87 |
0308776 |
O-RING |
| 88 |
0306468 |
SCREW, Armature plate |
| 89 |
0300258 |
SCREW, Bracket |
| 91 |
0329894 |
SCREW |
| 92 |
0316714 |
SHIFT ROD, Upper |
| 93 |
0322988 |
PLATE, Powerhead |
| 95 |
0316715 |
CONNECTOR |
| 96 |
0318585 |
SPACER |
| 97 |
0300721 |
WASHER, Cable connector This part replaces 0311734. |
| 99 |
0303884 |
RONDELLE |
| 102 |
0306342 |
NUT, Lead screw |
| 103 |
0376349 |
FIL, masse |
| 104 |
0304169 |
GASKET, Lower front mount |
| 105 |
0321469 |
MOUNT, Rubber, lower front |
| 107 |
0302709 |
GROOVE PIN |
| 108 |
0325074 |
BUSHING |
| 109 |
0302804 |
COTTER IN |
| 110 |
0302803 |
NUT |
| 111 |
0302703 |
THRUST WASHER, Handle |
| 112 |
0302631 |
SPRING WASHER |
| 113 |
0393556 |
GRIP & SLEEVE ASSY. |
| 114 |
0328947 |
PLATE |
| 115 |
0303252 |
WAHSER, Grip spring |
| 116 |
0301656 |
SPRING |
| 117 |
0303282 |
BLOCK |
| 118 |
0377273 |
GEAR & SHAFT, Short |
| 120 |
0302721 |
SCREW |
| 121 |
0318216 |
HANDLE |
| 122 |
0390681 |
GEAR & SHAFT, Long |
| 0391275 |
0391275 |
STEERING HANDLE ASSY |
