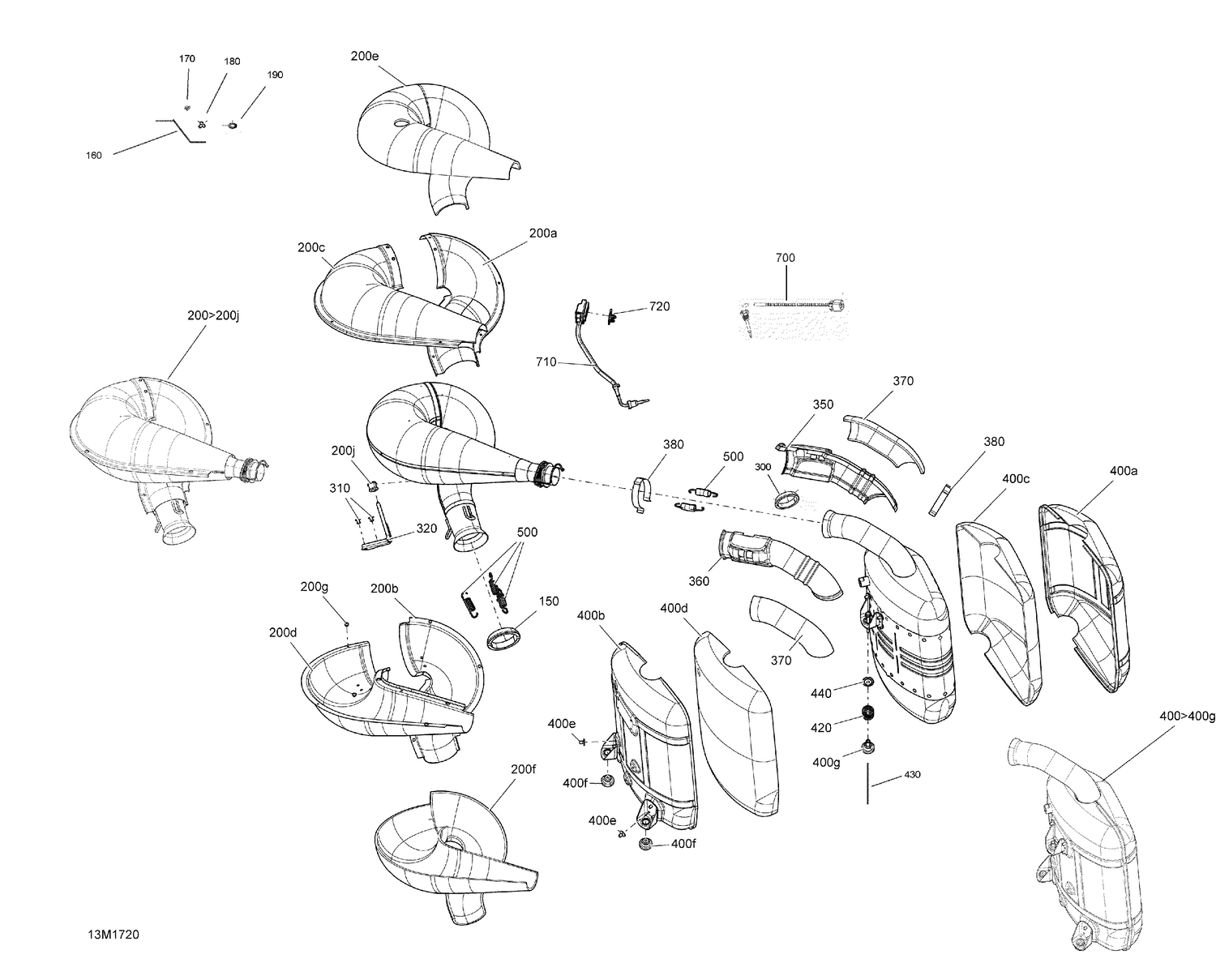

01- Exhaust System - All Models
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 514053487 | Exhaust Gasket |
| 160 | Not | Available As Spare Part - Non Available |
| 170 | Not | Available As Spare Part - Non Available |
| 180 | Not | Available As Spare Part - Non Available |
| 190 | Not | Available As Spare Part - Non Available |
| 200a | 514055222 | Front Upper Aluminum Shell |
| 200b | 514055223 | Front Lower Aluminum Shell |
| 200c | 514055273 | Upper Rear Shell |
| 200d | 514055618 | Rear Lower Aluminum Shell This part replaces 514055274. |
| 200e | 514056351 | Glass Wool This part replaces 514055220. |
| 200f | 514055385 | Wool |
| 200g | 390909200 | Avex Rivet |
| 200j | 514055632 | Rubber This part replaces 514055410. |
| 300 | 514055294 | Exhaust Gasket |
| 310 | 293150119 | Hemlock Rivet, 6.5 mm |
| 320 | 514055214 | Support |
| 350 | 514055283 | Front Shield |
| 360 | 514055284 | Rear Shield |
| 370 | 514055285 | Wool |
| 380 | 514056035 | Clip This part replaces 514055392. |
| 400a | 514055199 | RH Deflector |
| 400b | 514055200 | LH Deflector |
| 400c | 514055201 | Wool |
| 400d | 514055202 | Wool |
| 400e | 390909100 | Avex Rivet |
| 400f | 514055203 | Stopper |
| 400g | 514056138 | Stopper Ass'y This part replaces 514055422. |
| 420 | 514055282 | Spring |
| 430 | 250000926 | Hex. Flange Screw M6 |
| 440 | Not | Available As Spare Part - Non Applicable |
| 500 | 514055198 | Spring |
| 700 | Not | Available As Spare Part - Non Applicable |
| 710 | 515178170 | Module |
