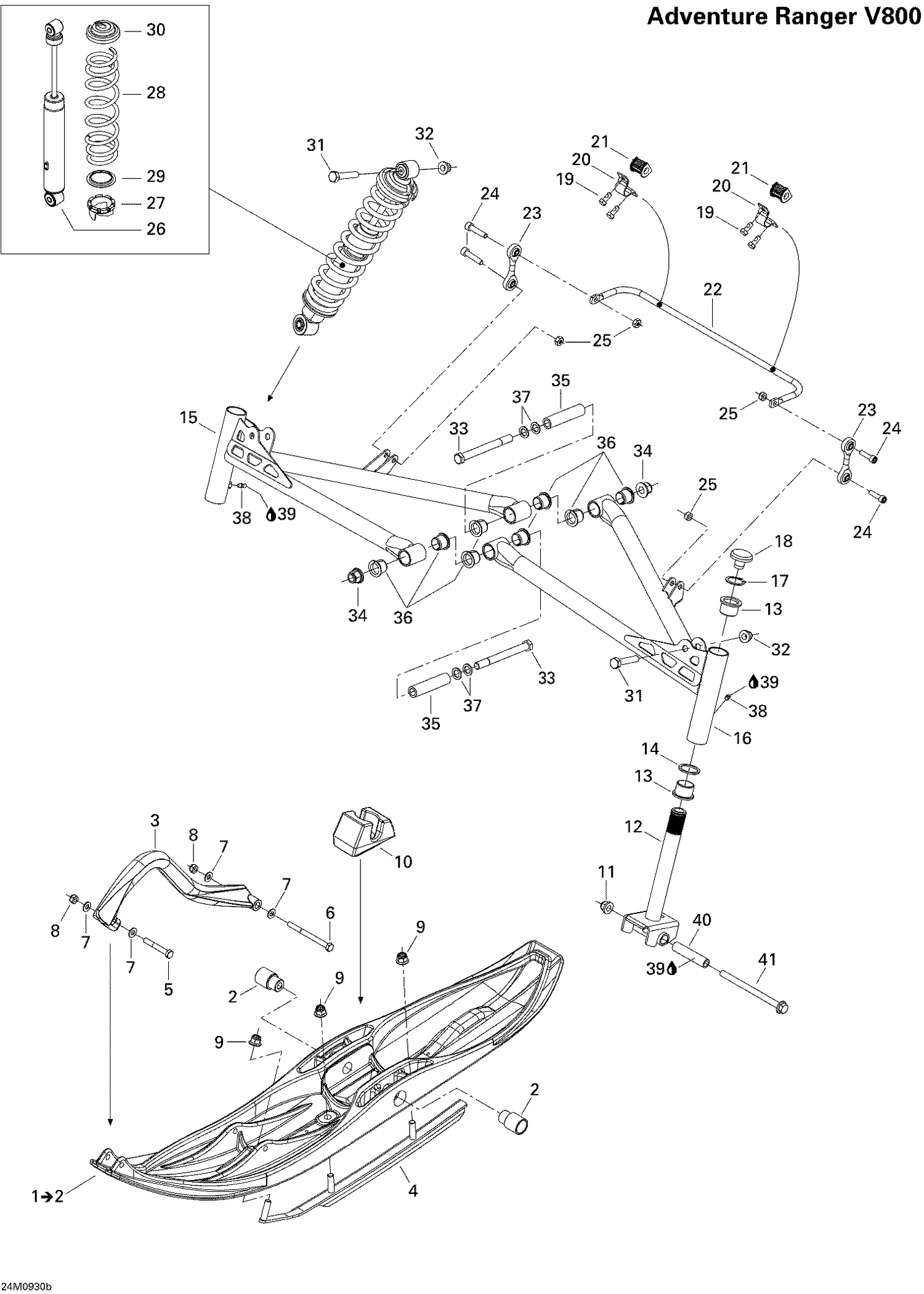

07- Front Suspension And Ski Ranger
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 605348392 | Bushing |
| 3 | 505070963 | Handle, Black |
| 4 | 619400005 | RUNNER CARBIDE KIT - Call your local BRP dealership |
| 5 | 207085044 | Hex. Screw M8 X 50 |
| 6 | 207089044 | Hex. Screw M8 X 90 |
| 7 | 234081410 | Flat Washer 8 mm |
| 8 | 232581414 | Hex. Elastic Stop Nut M8 |
| 9 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 10 | 605348458 | SKI STOPPER - Call your local BRP dealership |
| 11 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 12 | 505072001 | SKI LEG - Call your local BRP dealership |
| 13 | 505070003 | Cushion |
| 14 | 505070004 | WASHER - Call your local BRP dealership |
| 15 | 505072193 | RH LOWER ARM - Call your local BRP dealership |
| 16 | 505072194 | LH LOWER ARM - Call your local BRP dealership |
| 17 | 371910400 | CIRCLIP - Call your local BRP dealership |
| 18 | 572091300 | Cap |
| 19 | 250000281 | SCREW-HEX.CAP WITH NYLON PATCH - Call your local BRP dealership |
| 20 | 506095800 | CLAMP - Call your local BRP dealership |
| 21 | 505072225 | TORSION BUSHING - Call your local BRP dealership |
| 22 | 505072226 | STABILISATOR - Call your local BRP dealership |
| 23 | 505071479 | BALL JOINT - Call your local BRP dealership |
| 24 | 205083544 | SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership |
| 25 | 232581414 | Hex. Elastic Stop Nut M8 |
| 26 | 505072190 | FRONT SHOCK - Call your local BRP dealership |
| 27 | 503184400 | Washer |
| 28 | 505071838 | SPRING - Call your local BRP dealership |
| 29 | 505071954 | Spring Guide |
| 30 | 706200881 | Spring Stopper |
| 31 | 207005544 | Hex. Screw M10 X 55 |
| 32 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 33 | 230022044 | HEX. SCREW M12 X 120 - Call your local BRP dealership |
| 34 | 233221414 | Hex. Flanged Elastic Nut M12 |
| 35 | 505071366 | BUSHING - Call your local BRP dealership |
| 36 | 505072094 | BUSHING - Call your local BRP dealership |
| 37 | 503189276 | Washer |
| 38 | 408200700 | Grease Fitting |
| 39 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 40 | 506133300 | Spacer |
