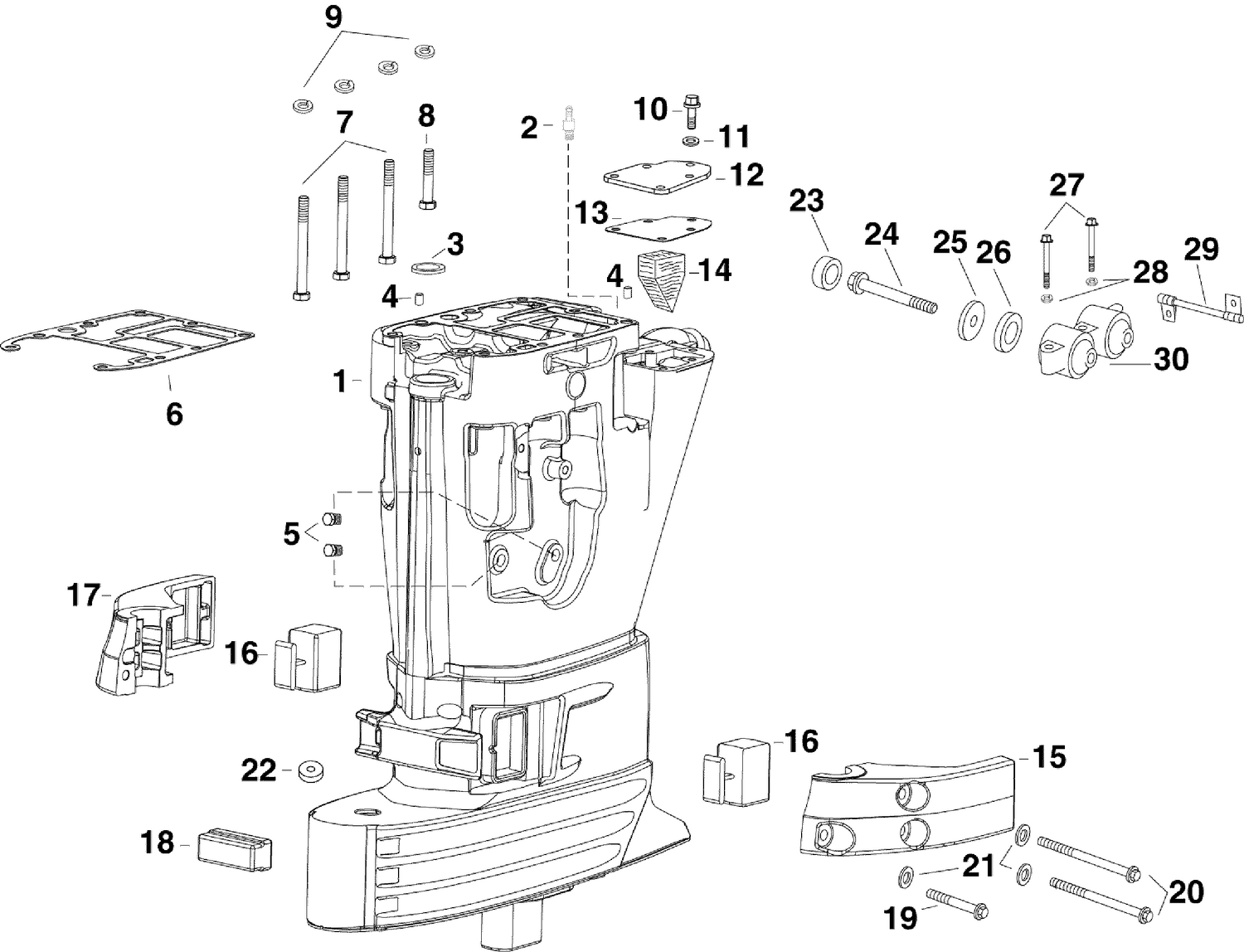

| Ref | Part Number | Description |
|---|
| 1 |
5008275 |
EXHAUST HOUSING This part replaces 5006461. |
| 7 |
0352529 |
SCREW, Exhaust housing to powerhead |
| 8 |
0352530 |
SCREW, Exhaust housing to powerhead |
| 12 |
0351769 |
COVER, Exhaust relief |
| 13 |
0351768 |
GASKET, Exhaust relief cover |
| 14 |
0351767 |
FILTER, Exhaust relief |
| 15 |
0351316 |
MOUNT BRACKET, Port |
| 16 |
0333764 |
MOUNT, Lower |
| 17 |
0351317 |
MOUNT BRACKET, Starboard |
| 18 |
0332421 |
MOUNT, Bracket front |
| 20 |
0339822 |
SCREW, Mount bracket |
| 22 |
0321452 |
GROMMET |
| 23 |
0313581 |
BUMBER, Mount screw |
| 24 |
0317648 |
SCREW, Upper mount |
| 25 |
0321232 |
RETAINER WASHER |
| 26 |
0313580 |
WASHER |
| 27 |
0306423 |
BOLT |
| 29 |
0582494 |
GROUND STRAP |
