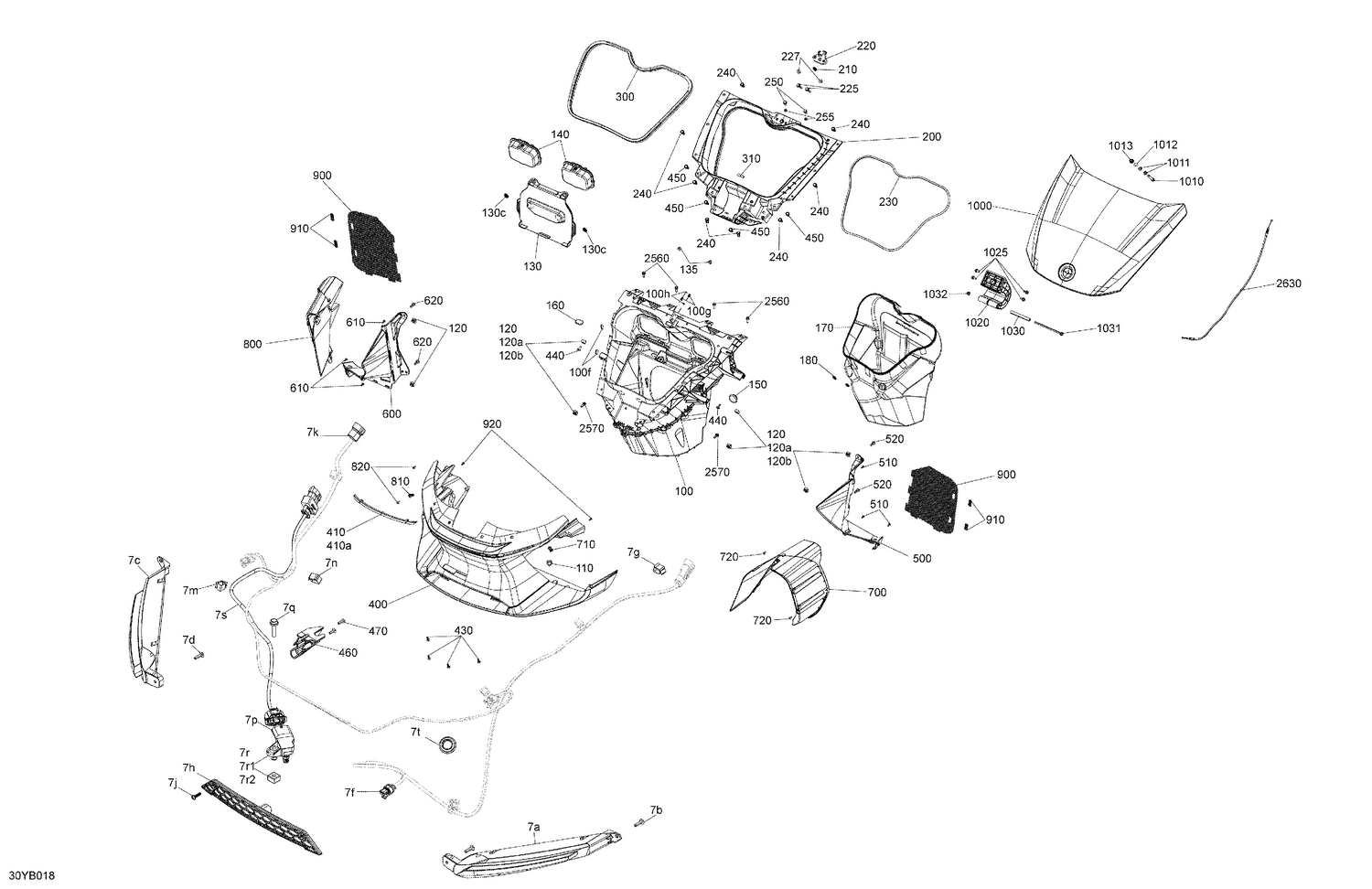

07- Body - Front Storage Tray
Parts (71)
| Ref | Part Number | Description |
|---|---|---|
| 7a | 708200959 | LH Bumper Trim |
| 7b | 250000759 | Torx Truss Pt K40 X 16 |
| 7c | 708200960 | RH Bumper Trim |
| 7d | 250000759 | Torx Truss Pt K40 X 16 |
| 7f | 710004901 | Connector Plug |
| 7g | 414227300 | Clip |
| 7h | 708400406 | Lighting Harness Connector Cap |
| 7j | 250001123 | Hex. Flange Screw K40 X 16 |
| 7k | 710004901 | Connector Plug |
| 7m | 414227300 | Clip |
| 7n | 414227300 | Clip |
| 7p | 707000995 | Pressure And Temperature Sensor |
| 7q | 207662554 | Hex. Flange Screw M6 X 25 |
| 7r1 | 269500252 | M6 Nut Housing Ass'y |
| 7r2 | 232561600 | Hex. Elastic Stop Nut M6 |
| 7s | 710004764 | AAPTS Harness |
| 7t | 705003464 | Cap |
| 100f | 293740028 | Dual Lock Velcro Washer 3/4" |
| 100g | 390401400 | Rivet |
| 100h | 234031600 | Flat Washer 3 mm, Stainless Steel |
| 110 | 293830005 | Rubber Bumper |
| 120a | 269500252 | M6 Nut Housing Ass'y |
| 120b | 232561600 | Hex. Elastic Stop Nut M6 |
| 130c | 293740028 | Dual Lock Velcro Washer 3/4" |
| 135 | 250000767 | Torx Truss Screw M6 X 12 |
| 150 | 710002858 | Rubber Plug |
| 160 | 708400166 | Cap |
| 170 | 708304274 | Soft Box Liner |
| 180 | 293740028 | Dual Lock Velcro Washer 3/4" |
| 200 | 708201071 | Deep Black, Upper Box Support |
| 210 | 705003911 | Spring |
| 220 | 705007379 | Latch |
| 225 | 207663544 | Hex. Flange Screw M6 X 35 |
| 227 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 230 | 293250529 | Neoprene Seal 1420MM |
| 240 | 293150230 | Tuflok Plastic Rivet |
| 250 | 207661644 | Hex. Flange Screw M6 X 16 |
| 255 | 232561434 | Elastic Stop Nut M6 |
| 300 | 219704387 | Gasket 4100Mm Long |
| 310 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long |
| 400 | 708201076 | Deep Black, Front Bumper |
| 410a | 708201124 | Upper Bumper Trim |
| 430 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 440 | 250000755 | Torx Screw M6 X 16 |
| 450 | 293150230 | Tuflok Plastic Rivet |
| 460 | 708201084 | Sensor Support |
| 470 | 250001131 | Torx Truss PT K40 x 12 |
| 500 | 708200879 | Deep Black, LH Inner Air Scoop |
| 510 | 250001131 | Torx Truss PT K40 x 12 |
| 520 | 250000712 | Torx Screw M6 X 20 |
| 600 | 708200880 | Deep Black, RH Inner Air Scoop |
| 610 | 250001131 | Torx Truss PT K40 x 12 |
| 620 | 250000712 | Torx Screw M6 X 20 |
| 700 | 708201086 | Deep Black, LH Exterior Scoop |
| 710 | 293150230 | Tuflok Plastic Rivet |
| 720 | 250001131 | Torx Truss PT K40 x 12 |
| 800 | 708201087 | Deep Black, RH Exterior Scoop |
| 810 | 293150230 | Tuflok Plastic Rivet |
| 820 | 250001131 | Torx Truss PT K40 x 12 |
| 910 | 705004838 | Flat Clip |
| 920 | 250001131 | Torx Truss PT K40 x 12 |
| 1010 | 705002223 | Lug |
| 1011 | 232180600 | Hex. Jam Nut M8 |
| 1012 | 234081410 | Flat Washer 8 mm |
| 1013 | 233281464 | Elastic Flange Nut M8 |
| 1025 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 1030 | 705003322 | Spacer |
| 1031 | 230663084 | Hex. Flange Screw M6 X 130 |
| 1032 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 2560 | 210262050 | Hexagonal Head Screw |
| 2570 | 207662044 | Hex. Flange Screw M6 X 20 |
