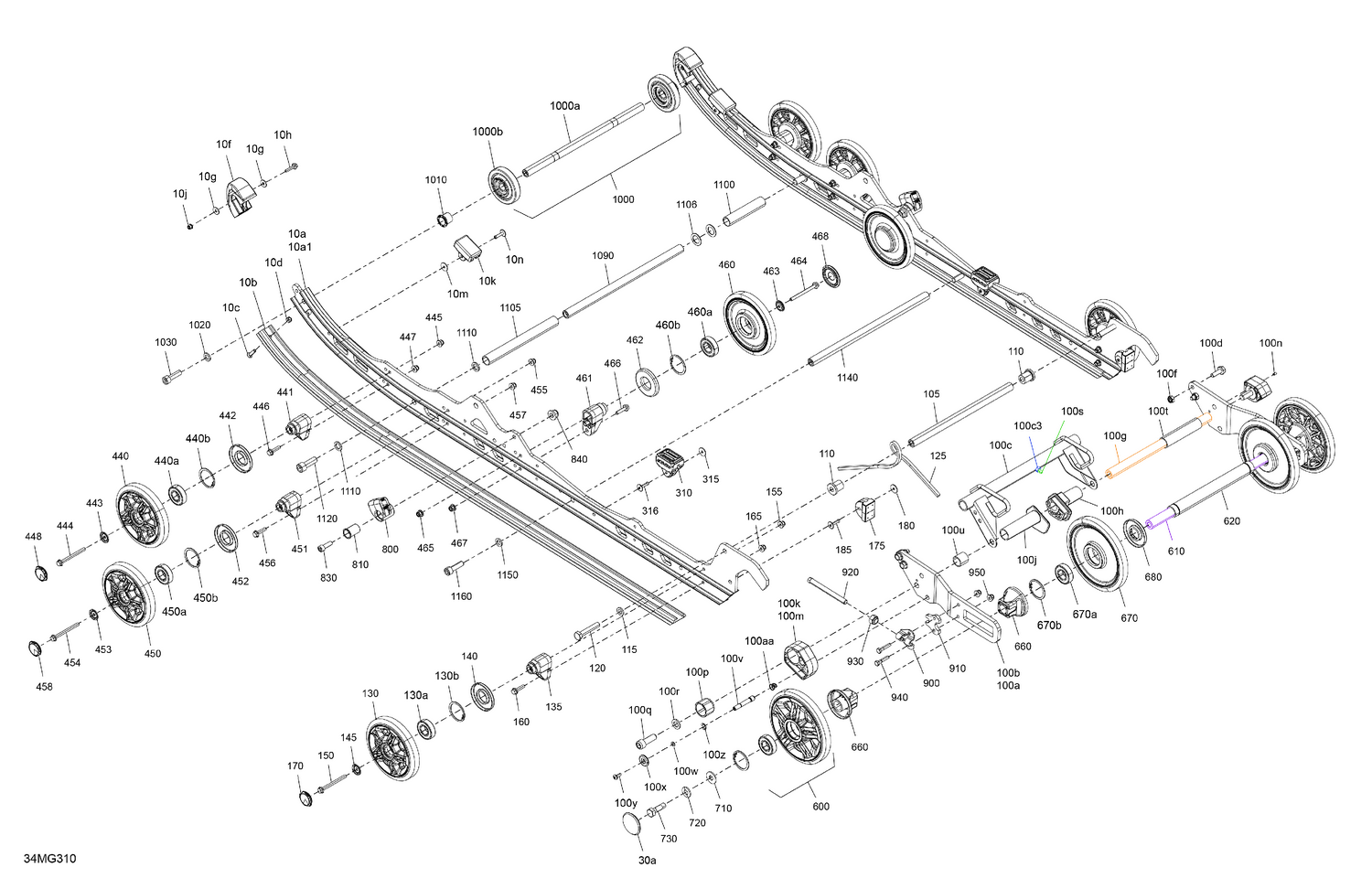

05- Suspension - Rear - Lower Section
Parts (119)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 503198064 | Suspension Rail 154 |
| 10b | 503191619 | Slider 137 |
| 10c | 208562531 | Phillips Screw M6 X 25 |
| 10d | 232561414 | Elastic Stop Nut M6 |
| 10f | 503196873 | Rail Protector |
| 10g | 250200140 | Washer |
| 10h | 207652544 | Hex. Flange Screw M5 X 25 |
| 10j | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 10k | 503190576 | Rubber Stopper |
| 10m | 503191273 | Washer |
| 10n | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 100a | 503197289 | LH Rail Pivot |
| 100aa | 503192436 | Compression Spring |
| 100b | 503197290 | RH Rail Pivot |
| 100c3 | 232061404 | Hexagonal Nut M6 |
| 100d | 207682544 | Hex. Flange Screw M8 X 25 |
| 100f | 232581414 | Hex. Elastic Stop Nut M8 |
| 100g | 503191711 | Cam Axle |
| 100h | 503191190 | RH Spring Cam |
| 100j | 503191668 | LH Spring Cam |
| 100k | 503192426 | LH Block |
| 100m | 503192427 | RH Block |
| 100n | 250400005 | Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership |
| 100p | 503189488 | Block Guide |
| 100q | 205523554 | Socket Head Screw M12 X 35 |
| 100r | 503189148 | Washer |
| 100s | 408200700 | Grease Fitting |
| 100t | 503197291 | Spacer |
| 100u | 503197991 | Spacer |
| 100v | 503192437 | Rode |
| 100w | 234051410 | Flat Washer M5 |
| 100x | 503192438 | Handle |
| 100y | 250000742 | Torx Screw M5 X 14 |
| 100z | 293370068 | Circlip |
| 105 | 503191390 | Lower Shaft |
| 110 | 503189324 | Bushing |
| 115 | 503192496 | Washer |
| 120 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 125 | 503197717 | Spring |
| 130a | 503190396 | Ball Bearing |
| 130b | 415129371 | Retaining Ring |
| 135 | 503193894 | Casted Support |
| 140 | 503190434 | Labyrinth Seal |
| 145 | 503191820 | Wheel Cup M6 |
| 150 | 250000944 | Hex. Flange Screw M6 X 70 |
| 155 | 233261466 | Hex. Flange Elastic Nut M6 |
| 160 | 250000945 | Hex. Flange Screw M6 X 25 |
| 165 | 233261466 | Hex. Flange Elastic Nut M6 |
| 170 | 503195804 | Wheel Cap |
| 175 | 503191291 | Rubber Stopper |
| 180 | 503191273 | Washer |
| 185 | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 310 | 503196519 | Rubber Stopper |
| 315 | 503191273 | Washer |
| 316 | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 440a | 503190396 | Ball Bearing |
| 440b | 415129371 | Retaining Ring |
| 441 | 503193894 | Casted Support |
| 442 | 503190434 | Labyrinth Seal |
| 443 | 503191820 | Wheel Cup M6 |
| 444 | 250000944 | Hex. Flange Screw M6 X 70 |
| 445 | 233261466 | Hex. Flange Elastic Nut M6 |
| 446 | 250000945 | Hex. Flange Screw M6 X 25 |
| 447 | 233261466 | Hex. Flange Elastic Nut M6 |
| 448 | 503195804 | Wheel Cap |
| 450a | 503190396 | Ball Bearing |
| 450b | 415129371 | Retaining Ring |
| 451 | 503193894 | Casted Support |
| 452 | 503190434 | Labyrinth Seal |
| 453 | 503191820 | Wheel Cup M6 |
| 454 | 250000944 | Hex. Flange Screw M6 X 70 |
| 455 | 233261466 | Hex. Flange Elastic Nut M6 |
| 456 | 250000945 | Hex. Flange Screw M6 X 25 |
| 457 | 233261466 | Hex. Flange Elastic Nut M6 |
| 458 | 503195804 | Wheel Cap |
| 460a | 503190396 | Ball Bearing |
| 460b | 415129371 | Retaining Ring |
| 461 | 503193894 | Casted Support |
| 462 | 503190434 | Labyrinth Seal |
| 463 | 503191820 | Wheel Cup M6 |
| 464 | 250000944 | Hex. Flange Screw M6 X 70 |
| 465 | 233261466 | Hex. Flange Elastic Nut M6 |
| 466 | 250000945 | Hex. Flange Screw M6 X 25 |
| 467 | 233261466 | Hex. Flange Elastic Nut M6 |
| 468 | 503195878 | Black, Wheel Cap |
| 600 | 503197697 | Wheel 165 Mm |
| 610 | 503191408 | Rear Axle |
| 620 | 503196316 | Spacer |
| 660 | 503196753 | Rear Wheel Support |
| 670a | 503190396 | Ball Bearing |
| 670b | 415129371 | Retaining Ring |
| 680 | 503190682 | Labyrinth Seal |
| 710 | 503191910 | Washer |
| 720 | 234201474 | Conical Spring Washer 10 mm |
| 730 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 |
| 800 | 861805547 | Spring Support Kit |
| 810 | 503196210 | Bushing |
| 830 | 205082554 | Socket Screw M8 X 25 |
| 840 | 233281466 | Elastic Flange Nut M8 |
| 900 | 503192583 | Tensioner |
| 910 | 503193250 | Spacer |
| 920 | 230100054 | Hex Screw M10 x 100 |
| 930 | 233601466 | Elastic Locking Nut M10 |
| 940 | 207063054 | Hex. Cap Screw M6 X 30 |
| 950 | 233261466 | Hex. Flange Elastic Nut M6 |
| 1000a | 503195735 | Front Wheel Axle |
| 1000b | 503195125 | Black, Wheel Ass'y |
| 1010 | 503195519 | Spacer |
| 1020 | 503192496 | Washer |
| 1030 | 205503554 | Socket Head Screw M10 X 35 |
| 1090 | 503193967 | Shaft |
| 1100 | 503195520 | Spacer |
| 1105 | 503195521 | Spacer |
| 1106 | 503189273 | Washer |
| 1110 | 503189276 | Washer |
| 1120 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip |
| 1140 | 503191418 | Axle Strap |
| 1150 | 503192496 | Washer |
| 1160 | 205503554 | Socket Head Screw M10 X 35 |
