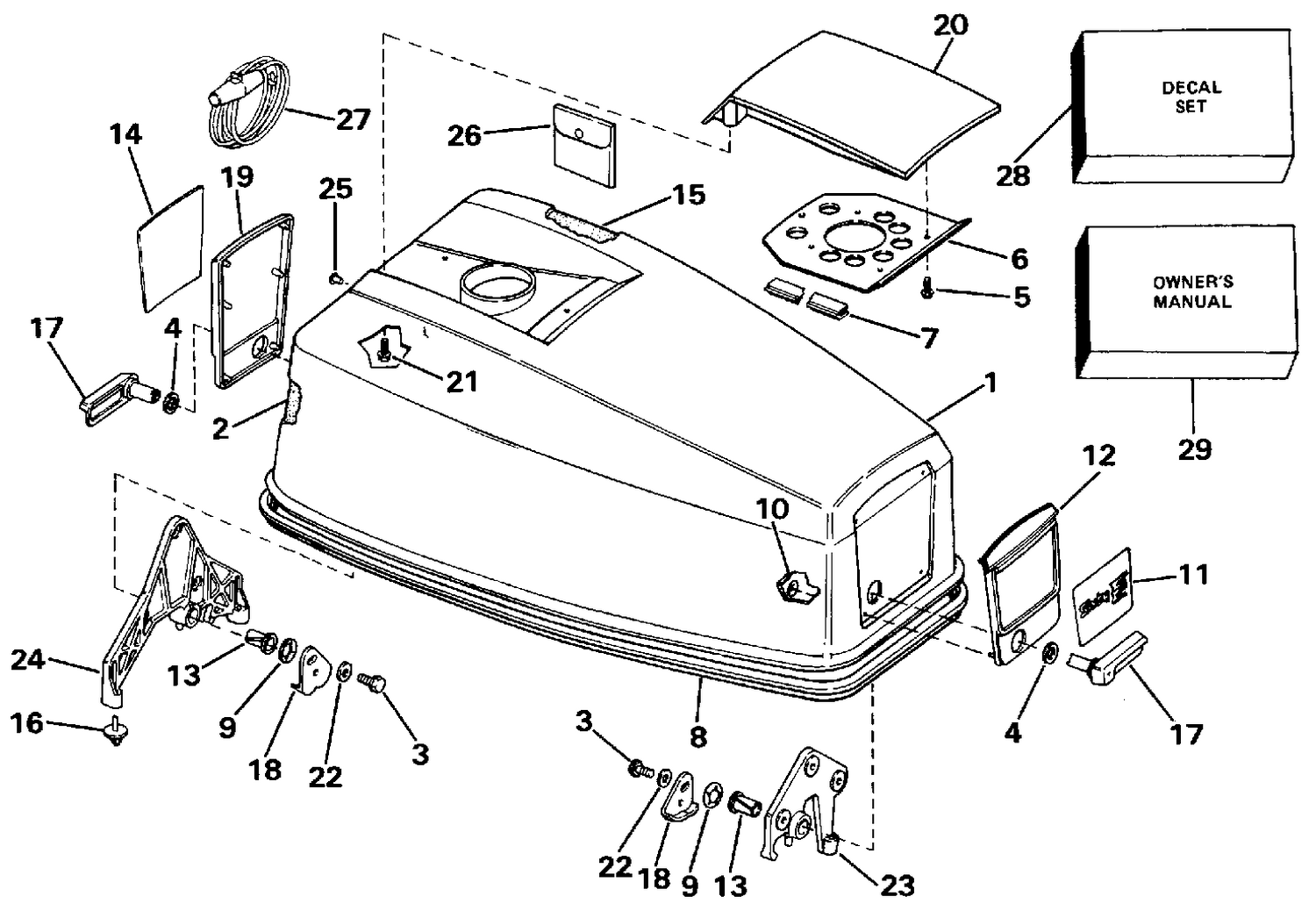

| Ref | Part Number | Description |
|---|
| 1 |
0282057 |
ENGINE COVER ASSY., Evinrude 50 models |
| 1 |
0282058 |
ENGINE COVER ASSY., Evinrude 60 models |
| 3 |
0304027 |
VIS, arbre de commande de sens de marche |
| 6 |
0208200 |
BAFFLE , Tilt handle |
| 7 |
0315984 |
SEAL , Baffle to motor cover This part replaces 0209731. |
| 8 |
0209549 |
SEAL, Cover, upper |
| 11 |
0209918 |
PLATE, Applique, front 50 model |
| 11 |
0209978 |
PLATE, Applique, front 60 model |
| 12 |
0209542 |
APPLIQUE, Front |
| 13 |
0553769 |
BUSHING |
| 14 |
0209919 |
PLATE, Applique, rear 50 model |
| 14 |
0209920 |
PLATE, Applique, rear 60 model |
| 17 |
0209541 |
LATCH, Handle |
| 19 |
0209543 |
APPLIQUE, Rear |
| 23 |
0281703 |
LOCATING BRKT. Front |
| 24 |
0210509 |
LOCATING BRACKET, Rear This part replaces 0281704. |
| 26 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 27 |
0378347 |
CORDE DE LANCEUR |
| 28 |
0282244 |
DECAL SET |
| 29 |
0209903 |
OWNER'S MANUAL |
| 29 |
0209906 |
OWNER'S MANUAL |
