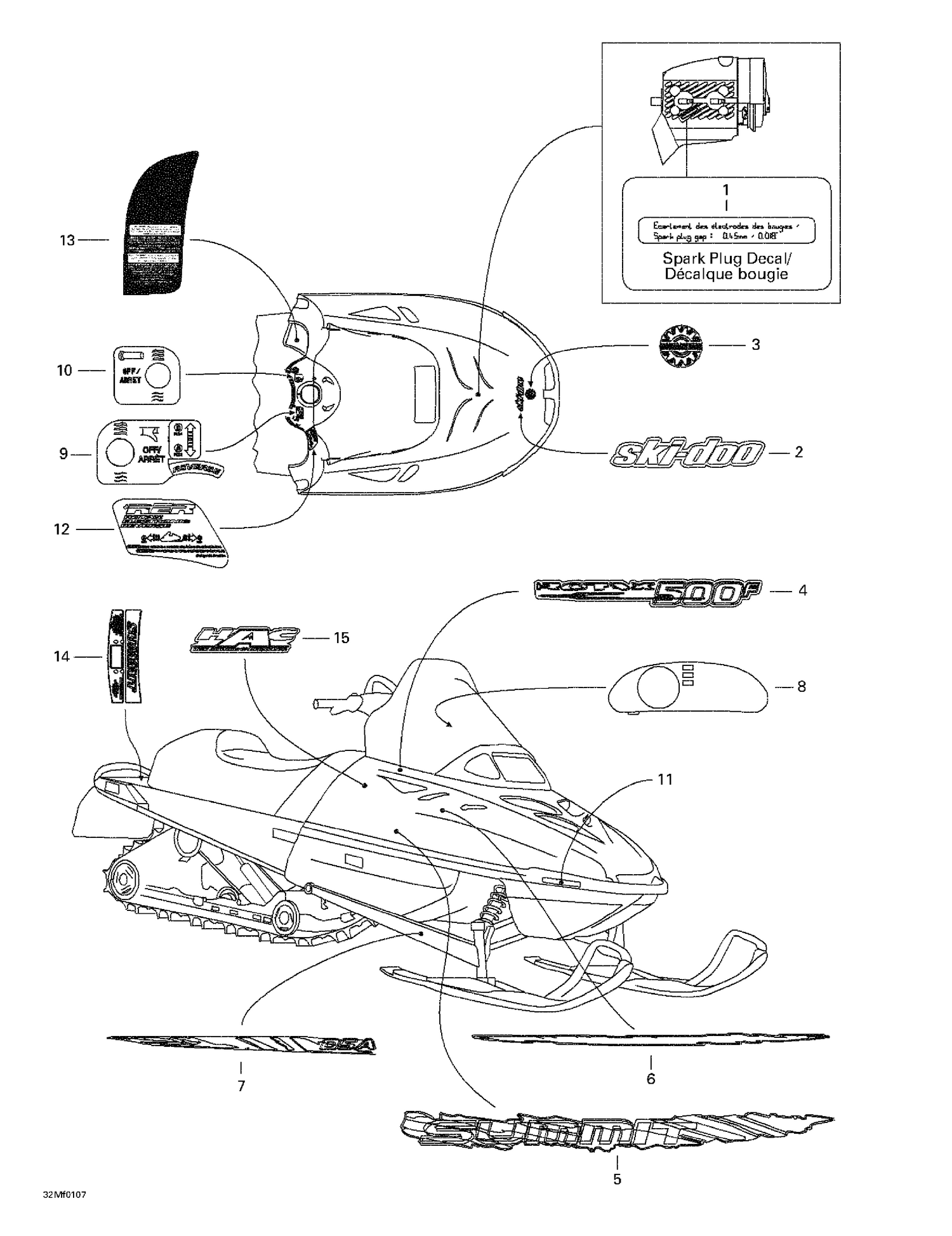

09- Decals
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516000986 | Spark Plug Decal |
| 3 | 516008738 | BRP Logo 48mm This part replaces 516000983. |
| 4 | 516000732 | Decal - <<ROTAX 500>> |
| 5 | 415128128 | Kit -Side Decal |
| 6 | 415128129 | Kit -Upper Side Decal |
| 7 | 415128130 | Kit -Arm Decal |
| 8 | 516000144 | Dash Decal |
| 9 | 516000262 | Heating Thumb Decal |
| 10 | 414898500 | Heatgrip Decal |
| 11 | 861805523 | Yellow, LH/RH Rear Reflector Kit This part replaces 418001009. |
| 12 | 418001602 | Reverse Decal |
| 13 | 414969800 | Instruction Decal (1 pass.) |
| 14 | 516000470 | Label - Warning (Model Fan) |
| 15 | 516000730 | Decal - H.A.C |
