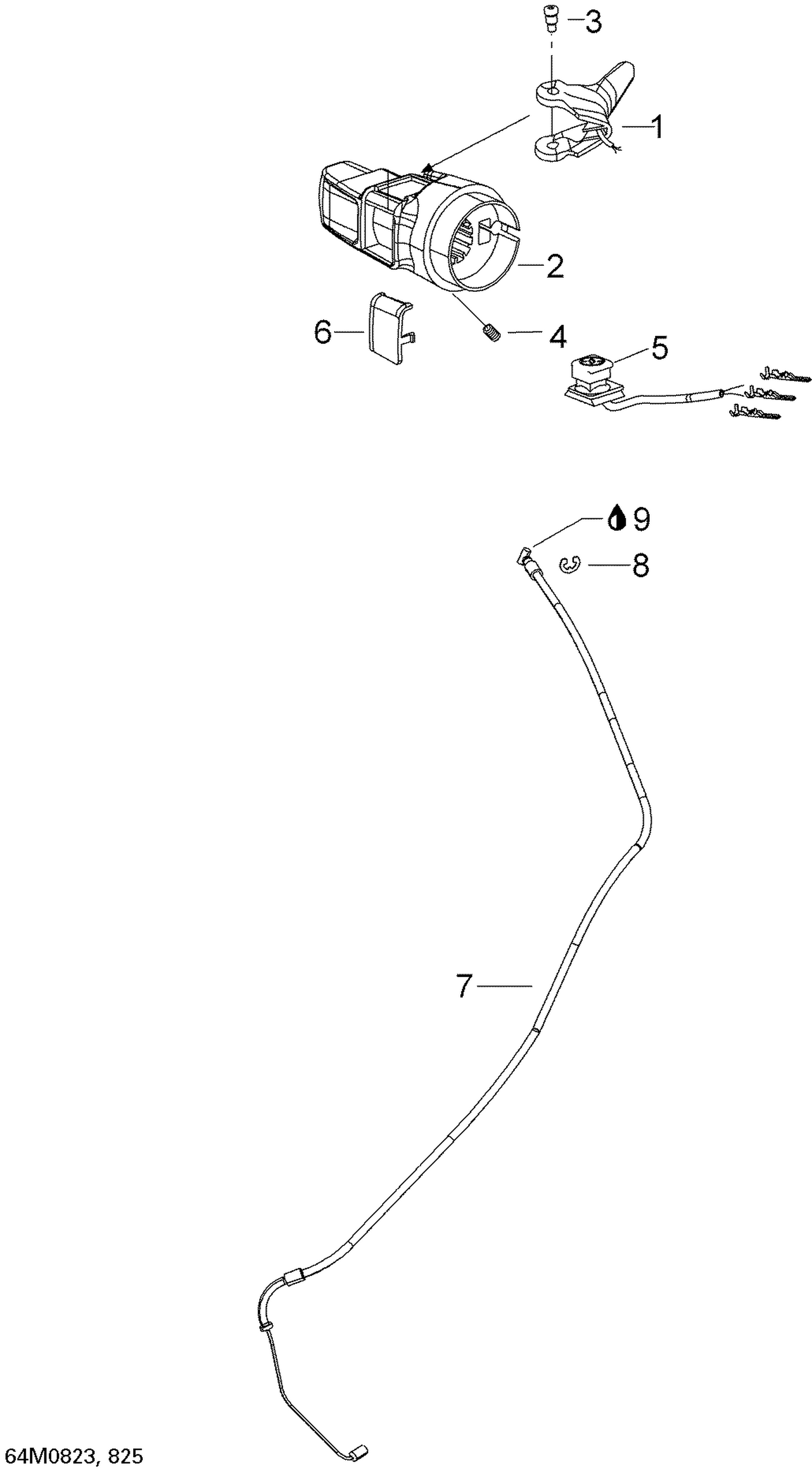

01- Throttle Handle And Housing
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 512059481 | Throttle Handle |
| 2 | 512059763 | THROTTLE HOUSING - Call your local BRP dealership |
| 3 | 732601143 | Flange Screw |
| 4 | 414440800 | Socket Set Screw M8 X 10 |
| 5 | 515177362 | Emergency Stop Switch This part replaces 515176690. |
| 6 | 572100901 | Switch Cover |
| 7 | 605352663 | Throttle Cable |
| 8 | M31038 | Circlip |
