Parts Catalog

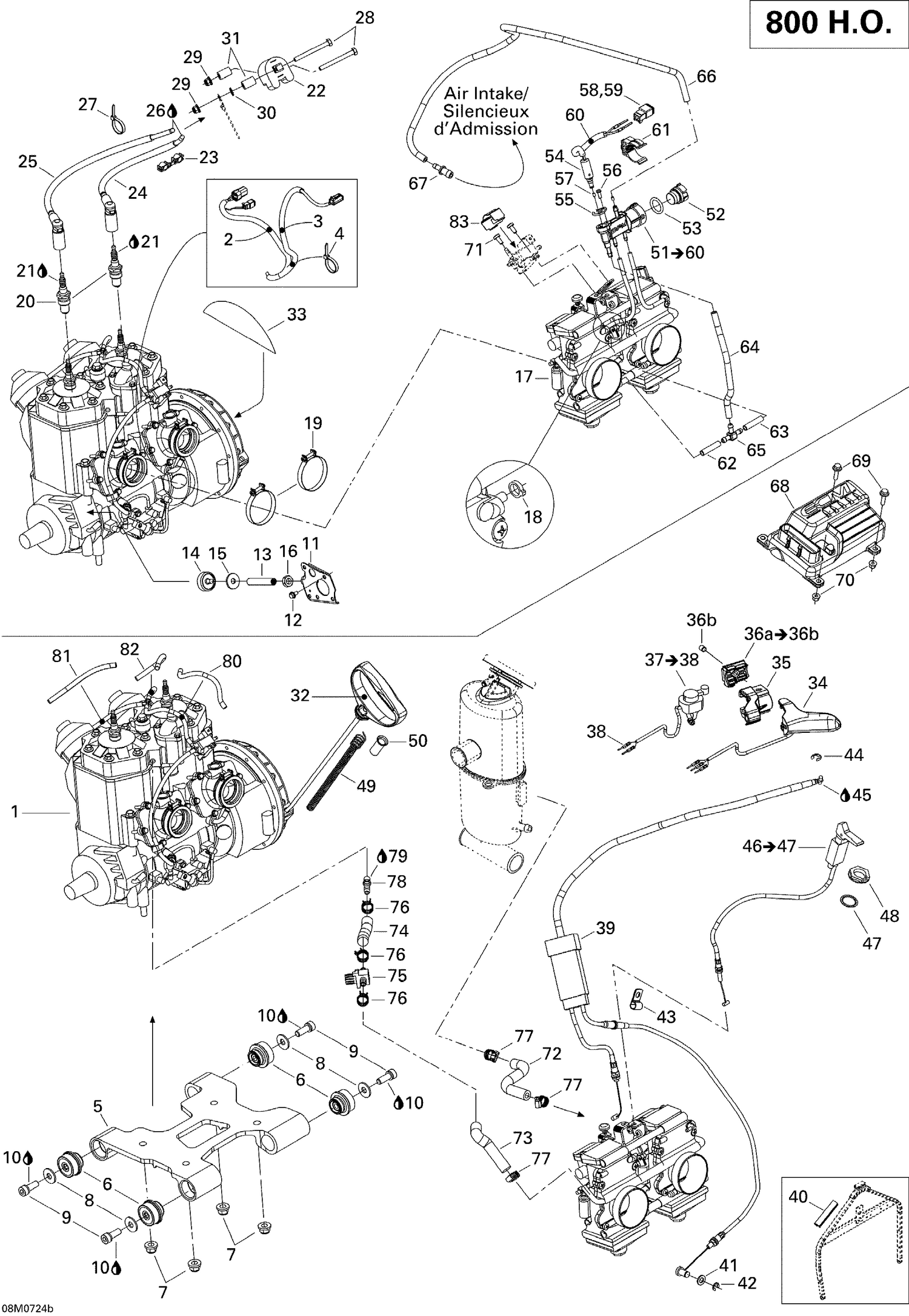

01- Engine 800HOPTEK

Parts (79)

Ref	Part Number	Description
1	400702633	Engine 793 H.O.
2	219704400	Was 409901800 Tubing (13 mm)
3	219704407	Tubing 10 MM 1000MM Long
4	293750002	Tie Wrap 142 mm
5	512060051	ENGINE SUPPORT - Call your local BRP dealership
6	512059691	Rubber Mount
7	233201414	Hex. Flange Elastic Nut M10
8	250200014	Flat Washer M10 This part replaces 506151251.
9	235202544	TORX LOW HEAD SOCKET SCREW M10 X 25 - Call your local BRP dealership
10	413703400	Sealant LOCTITE 222MS - Call your local BRP dealership
11	512059840	PLATE - Call your local BRP dealership
12	207561244	Hex. Flange Screw M6 X 12, Scotch Grip
13	250500007	STOPPER SCREW - Call your local BRP dealership
14	512059610	STOPPER - Call your local BRP dealership
15	512059057	WASHER - Call your local BRP dealership
16	232170411	Hex. Jam Nut M14
17	403138778	Carburetor Kit TM40-B322
18	293750001	Tie Wrap 94 mm
19	512059835	Gemi Clamp
20	415128524	Spark Plug NGK BR9ECS
21	219704453	Was 293550004 Dielectric Grease, 150 g
22	512059968	Ignition Coil
23	410914600	Plastic Clip, Spark Plug Wire
24	512059695	CABLE ASSY, 300 MM - Call your local BRP dealership
25	512059696	Cable Ass’y, 375 mm
26	219704453	Was 293550004 Dielectric Grease, 150 g
27	414115200	Tie-Rap 180 mm
28	207066044	Hex. Screw M6 X 60
29	233261414	Hex. Flange Elastic Nut M6 x 1.0
30	394001900	EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership
31	517203200	Spacer
32	572084400	Starter Grip
33	512059893	REFLECTIVE SHEET - Call your local BRP dealership
34	512060219	Throttle Handle Ass'y
35	512060197	LOWER HOUSING - Call your local BRP dealership
36b	414440800	Socket Set Screw M8 X 10
38	515175768	MALE TERMINAL - Call your local BRP dealership
39	512060084	THROTTLE CABLE - Call your local BRP dealership
40	512059750	PROTECTOR - Call your local BRP dealership
41	234081100	Flat Washer 8 mm, Nylon
42	414753500	Circlip
43	293750042	TIE CLAMP - Call your local BRP dealership
44	414274500	Circlip
45	219704453	Was 293550004 Dielectric Grease, 150 g
47	394103300	Lock Washer, Interior Teeth
48	512059094	PLASTIC NUT - Call your local BRP dealership
49	512059535	ROPE GUIDE - Call your local BRP dealership
50	512059536	TUBE - Call your local BRP dealership
52	270600009	CAP - Call your local BRP dealership
53	293300042	O-RING - Call your local BRP dealership
54	515175701	PRESSURE MANIFOLD HARNESS - Call your local BRP dealership
55	415061600	SOLENOID LOCK - Call your local BRP dealership
56	241140060	Screw K40 X 10
57	404161825	STARTER JET - Call your local BRP dealership
58	515175670	Female Terminal Housing, 2 Circuits
59	515175675	Female Lock, 2 Circuits
60	219704424	Vinyl Tubing, Low Temp 3000Mm Long
61	512058919	SUPPORT - Call your local BRP dealership
62	219704410	Polyurethane Hose 10000Mm Long
63	219704410	Polyurethane Hose 10000Mm Long
64	219704410	Polyurethane Hose 10000Mm Long
65	414729300	T-FITTING - Call your local BRP dealership
66	219704410	Polyurethane Hose 10000Mm Long
67	293710035	Straight Fitting
68	512060310	CALIBRATED MODULE - Call your local BRP dealership
69	207652044	Hex.Flange Screw M5 X 20
70	233251434	Flange Elastic Nut M5 This part replaces 233251414.
71	208651241	PHILLIPS SCREW M5 X 12 - Call your local BRP dealership
72	509000171	FORMED HOSE - Call your local BRP dealership
73	219704420	Was 509000407 Hose 8 mm
74	219704420	Was 509000407 Hose 8 mm
75	512059324	Valve 5/16”
76	414655700	Spring Clamp
77	293650170	Tridon Gear Clamp
78	512060196	Male Connector 1/8"-27 NPT
79	219704455	Was 293800018 Loctite 592, 50 ml
80	219704399	Was 409901700 Tubing (9 mm)
81	219704399	Was 409901700 Tubing (9 mm)
82	219704399	Was 409901700 Tubing (9 mm)
