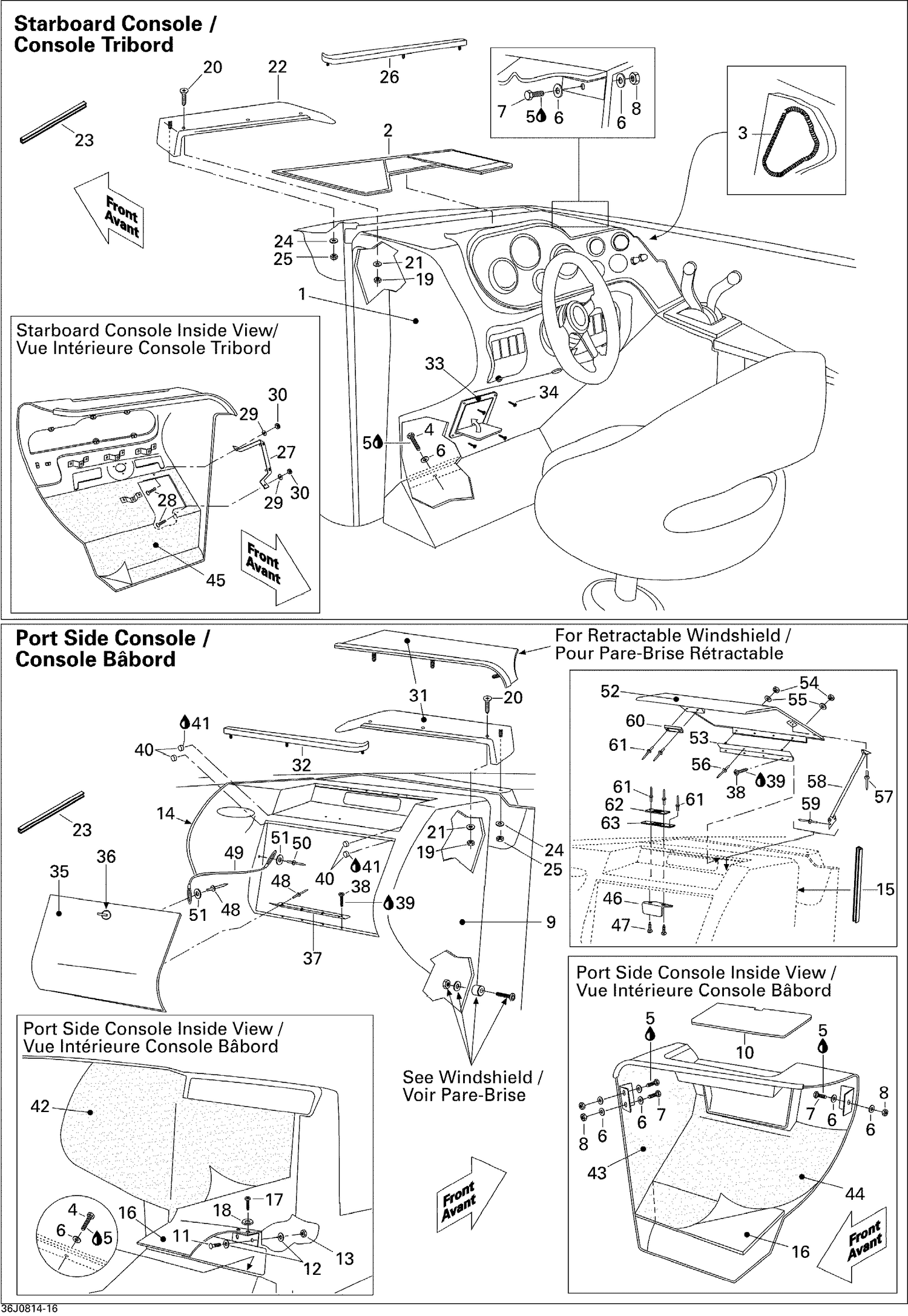

| Ref | Part Number | Description |
|---|
| 2 |
204073047 |
DASHBOARD MAT - Call your local BRP dealership |
| 3 |
204550028 |
SLIT CONDUIT, METER - Call your local BRP dealership |
| 4 |
207163060 |
Hex. Screw M6 X 30 |
| 5 |
293800060 |
Loctite 243, 10 ml |
| 6 |
234062600 |
Flat Washer M6, Stainless |
| 7 |
207164560 |
Hex. Screw M6 X 45 |
| 8 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 9 |
204072494 |
CONSOLE ASS'Y, PORT SIDE - Call your local BRP dealership |
| 10 |
204073048 |
MAT - Call your local BRP dealership |
| 11 |
207163060 |
Hex. Screw M6 X 30 |
| 12 |
234061600 |
Stainless Flat Washer M6 |
| 13 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 14 |
204071878 |
TRIM, WHITE - Call your local BRP dealership |
| 15 |
204071878 |
TRIM, WHITE - Call your local BRP dealership |
| 16 |
204072499 |
GLOVEBOX TRAY - Call your local BRP dealership |
| 17 |
204100049 |
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership |
| 18 |
204100057 |
FINITION WASHER - Call your local BRP dealership |
| 19 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 20 |
208563060 |
OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership |
| 21 |
234062600 |
Flat Washer M6, Stainless |
| 23 |
204072752 |
TRIM, BLACK, 7/16?, METER - Call your local BRP dealership |
| 24 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 25 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 26 |
204073089 |
Console Filler Pad, Starboard |
| 27 |
204072325 |
Interface Bracket |
| 28 |
208462060 |
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership |
| 29 |
234061600 |
Stainless Flat Washer M6 |
| 30 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 32 |
204073088 |
Console Filler Pad, Port Side |
| 33 |
204072447 |
ACCESS DOOR - Call your local BRP dealership |
| 34 |
209941960 |
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership |
| 36 |
204072938 |
GLOVEBOX LATCH - Call your local BRP dealership |
| 37 |
204072990 |
HINGE, BLACK - Call your local BRP dealership |
| 38 |
205441660 |
Socket Head Screw M4 X 16 |
| 39 |
293800060 |
Loctite 243, 10 ml |
| 40 |
204070940 |
BUMPER - Call your local BRP dealership |
| 42 |
204072500 |
DECK CARPET, PORT SIDE - Call your local BRP dealership |
| 43 |
204072989 |
CONSOLE CARPET, PORT SIDE - Call your local BRP dealership |
| 44 |
204072501 |
CONSOLE CARPET, PORT SIDE - Call your local BRP dealership |
| 45 |
204072980 |
Console Carpet, Starboard |
| 46 |
204070060 |
KEEPER - Call your local BRP dealership |
| 47 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 48 |
204130050 |
POP RIVET 3/16 - Call your local BRP dealership |
| 49 |
204071498 |
RETAINER CABLE - Call your local BRP dealership |
| 50 |
293150008 |
Pop Rivet 3/16" |
| 51 |
234052600 |
Flat Washer 5 mm, Stainless |
| 53 |
204073197 |
HINGE, BLACK - Call your local BRP dealership |
| 54 |
232541600 |
Elastic Stop Nut M4 |
| 55 |
234041600 |
Flat Washer 4 mm, Stainless |
| 56 |
293150057 |
Rivet 1/8” |
| 57 |
293150026 |
RIVET_POP 1/8 - Call your local BRP dealership |
| 58 |
204072937 |
HATCH SPRING - Call your local BRP dealership |
| 59 |
293150032 |
RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 60 |
204072907 |
MAGNETIC CATCH - Call your local BRP dealership |
| 61 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 62 |
204072908 |
LATCH BRACKET - Call your local BRP dealership |
