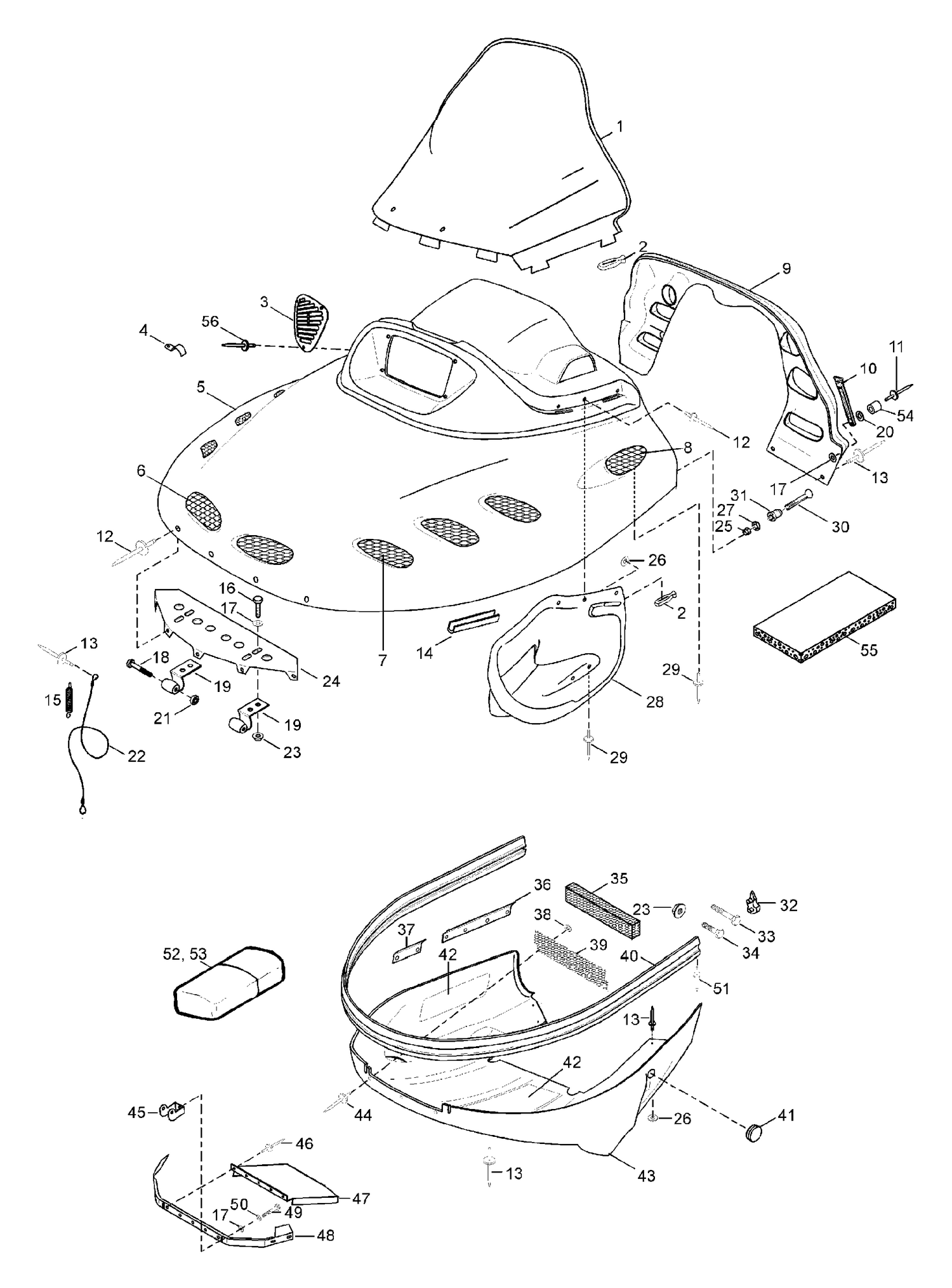

09- Hood
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5243735 | Wind screen |
| 2 | 570023800 | Wind screen fastening |
| 3 | 5342956 | Snow protector |
| 4 | 414227300 | Clip |
| 5 | 5145173 | Hood, without tapes |
| 6 | 5344451 | Grill, front |
| 7 | 5344450 | Side grill L.H. |
| 7 | 5344452 | Side grill R.H. |
| 8 | 5344453 | Snow protector |
| 9 | 5342107 | Rear hood, w/o decals |
| 10 | 531955 | Hood latch |
| 11 | 36072 | Rivet |
| 12 | 36009 | Rivet |
| 13 | 36036 | Rivet |
| 14 | 39006 | Muoltning |
| 15 | 5442675 | Spring |
| 16 | 40030 | Screw M6x20 |
| 17 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 19 | 5440164 | Hinge |
| 20 | 543392 | Washer |
| 21 | 33009 | Nut elastic M5 |
| 22 | 5443781 | Stop wire |
| 23 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 24 | 529892 | Fastening hinge |
| 25 | 33008 | Nut elastic M4 |
| 26 | 20008 | Washer |
| 27 | 20001 | Washer A4,3 DIN125 -St m Zne(1=10pcs) - Call your local BRP dealership |
| 28 | 539955 | Air covernor |
| 29 | 36071 | Rivet |
| 30 | 40168 | Flush screw M4x25 |
| 31 | 542307 | Counter roller |
| 32 | 549096L | Bumper Cap L.H. - Call your local BRP dealership |
| 32 | 549096R | Plug R.H. |
| 33 | 40031 | Screw M6x25 |
| 34 | 40030 | Screw M6x20 |
| 35 | 5341968 | Filter |
| 36 | 546852 | Guide |
| 37 | 542471 | Guide short |
| 38 | 20037 | Washer |
| 39 | 5341949 | Grill |
| 40 | 529496 | Bumper |
| 41 | 570277300 | Rubber plug |
| 42 | 5444437 | Heat protector |
| 43 | 529497 | Bottom pan |
| 44 | 36002 | Rivet |
| 45 | 5440867 | Hinge |
| 46 | 36083 | Rivet |
| 47 | 5341951 | Air deflector |
| 48 | 539885 | Hinge Bumper |
| 49 | 40029 | Screw M6x16 |
| 50 | 20052 | Lock washer |
| 51 | 36003 | Rivet |
| 52 | 5445402 | Tool Bag assy |
| 53 | 708200043 | TOOLS BOX - Call your local BRP dealership This part replaces 572036310. |
| 54 | 543417 | Sleeve |
| 55 | 414631900 | Foam acous. 74'’x34'’x1' |
