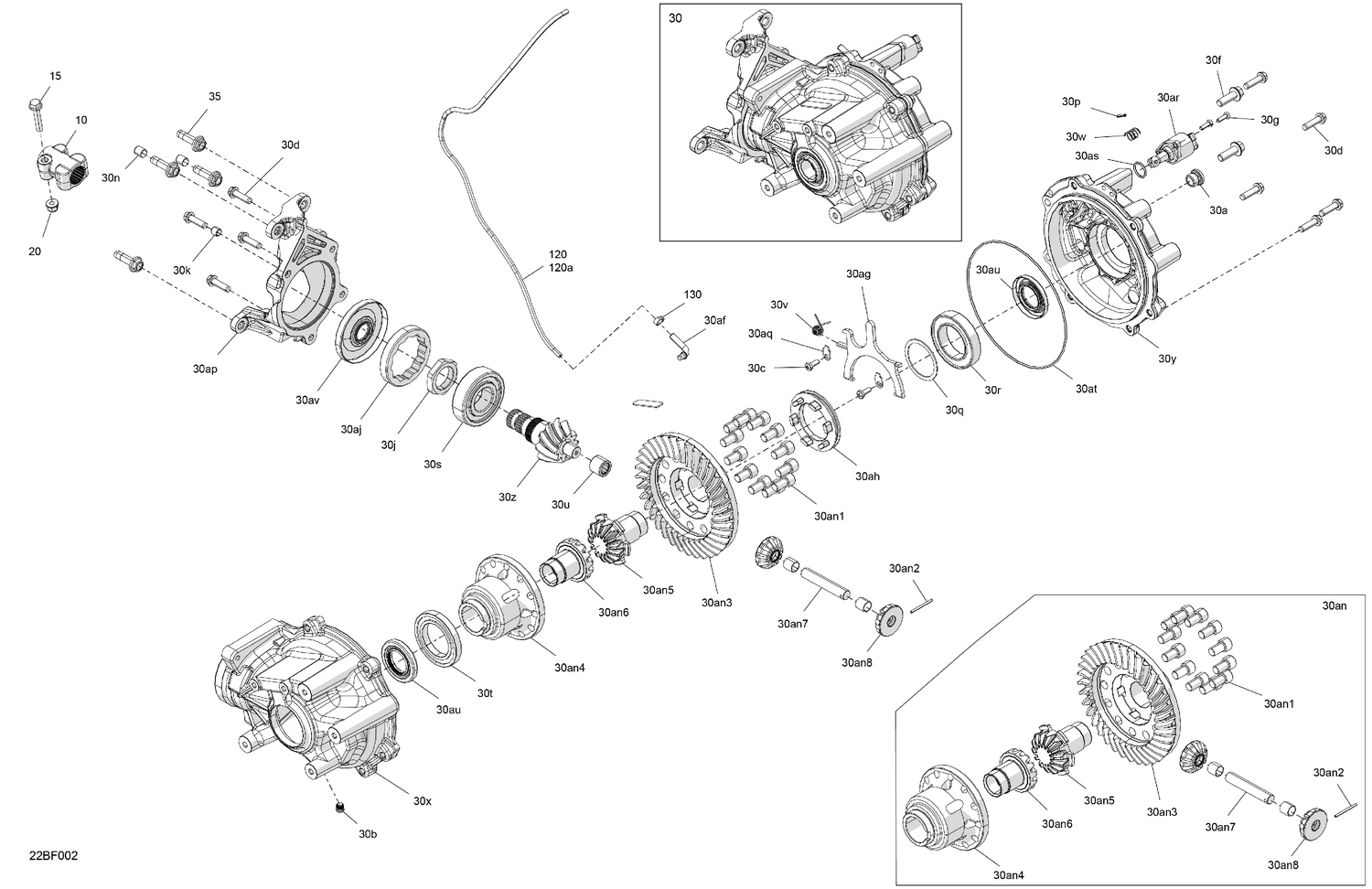

04- Drive - Final Drive Unit
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709402586 | Coupling Sleeve |
| 15 | 250001050 | Hex. Flange Screw M8 X 42 |
| 20 | 233281416 | Hex. Elastic Flange Nut M8 |
| 30a | 705501889 | Fill Level Plug |
| 30af | 705401935 | Vent Valve |
| 30ag | 715900761 | Pivot Fork |
| 30ah | 715900821 | Engagement |
| 30aj | 705501882 | Nut |
| 30an1 | 715900752 | Screw |
| 30an2 | 715900753 | Dowel Pin |
| 30an3 | 715900757 | Ring Gear, 36T Spiral |
| 30an4 | 715900758 | Carrier |
| 30an5 | 715900759 | Output Gear |
| 30an6 | 715900760 | Output Gear |
| 30an7 | 715900763 | Differential Pin |
| 30an8 | 715900764 | Pinion, Differential |
| 30ap | 705503213 | Differential Support |
| 30aq | 715900766 | Retainer Fork |
| 30ar | 420265845 | Servomotor |
| 30as | 420450450 | O-Ring |
| 30at | 715900749 | O-Ring |
| 30au | 715900531 | Oil Seal |
| 30av | 715900751 | Seal |
| 30b | 715900563 | Fill Level Plug M10 |
| 30c | 705402845 | Torx Screw M6 X 16 |
| 30d | 705501886 | Bolt |
| 30f | 715900799 | Custom Hex Screw Flange Head M10 x 30 |
| 30g | 715900736 | Screw |
| 30j | 715900737 | Nut |
| 30k | 715900738 | Dowel Pin |
| 30n | 715900739 | Dowel Pin |
| 30p | 715900754 | Spring Pin |
| 30q | 715900740 | Shim |
| 30r | 715900741 | Ball Bearing |
| 30s | 715900782 | Ball Bearing |
| 30t | 715900742 | Ball Bearing |
| 30u | 705501874 | Needle Bearing |
| 30v | 715900755 | Torsion Spring |
| 30w | 715900756 | Compression Spring |
| 30x | 715900816 | Case |
| 30y | 715900840 | Cover |
| 30z | 715900746 | Pinion, 10T Spiral |
| 35 | 250001080 | Screw-Hex.Flange M10 X 35 S.Grip |
| 120a | XXX | Not Available As Spare Parts |
