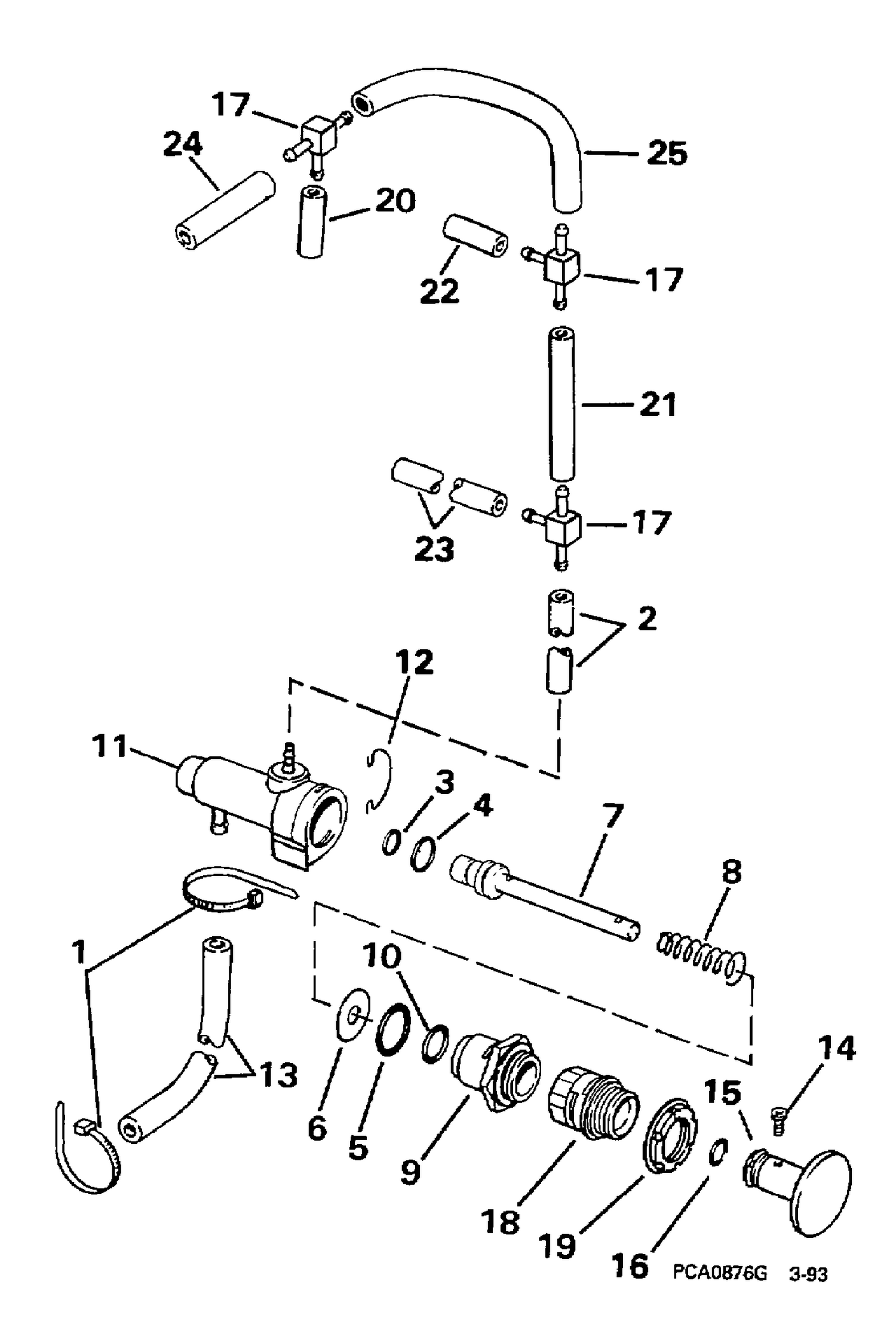

| Ref | Part Number | Description |
|---|
| 1 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 2 |
HOSE, |
Primer to lower tee, 9 1/2 in. (242mm) |
| 13 |
HOSE, |
Carb. to primer, 23 in. (584mm) |
| 14 |
0329054 |
SCREW |
| 15 |
0334365 |
KNOB |
| 16 |
0330992 |
JOINT TORIQUE, bouton |
| 17 |
0325569 |
T, amorçage |
| 18 |
0334364 |
SCREW, Power knob |
| 19 |
0329670 |
NUT |
| 20 |
HOSE, |
Primer, 1 1/2 in. (38mm) |
| 21 |
HOSE, |
Primer, 7 in. (175mm) |
| 22 |
HOSE, |
Primer, 1 1/2 in. (38mm) |
| 23 |
HOSE, |
Upper tee, 9 in. (225mm) |
| 24 |
HOSE, |
Upper tee, 9 in. (225mm) |
| 0432142 |
5007336 |
Kit Ay This part replaces 0432142. |
