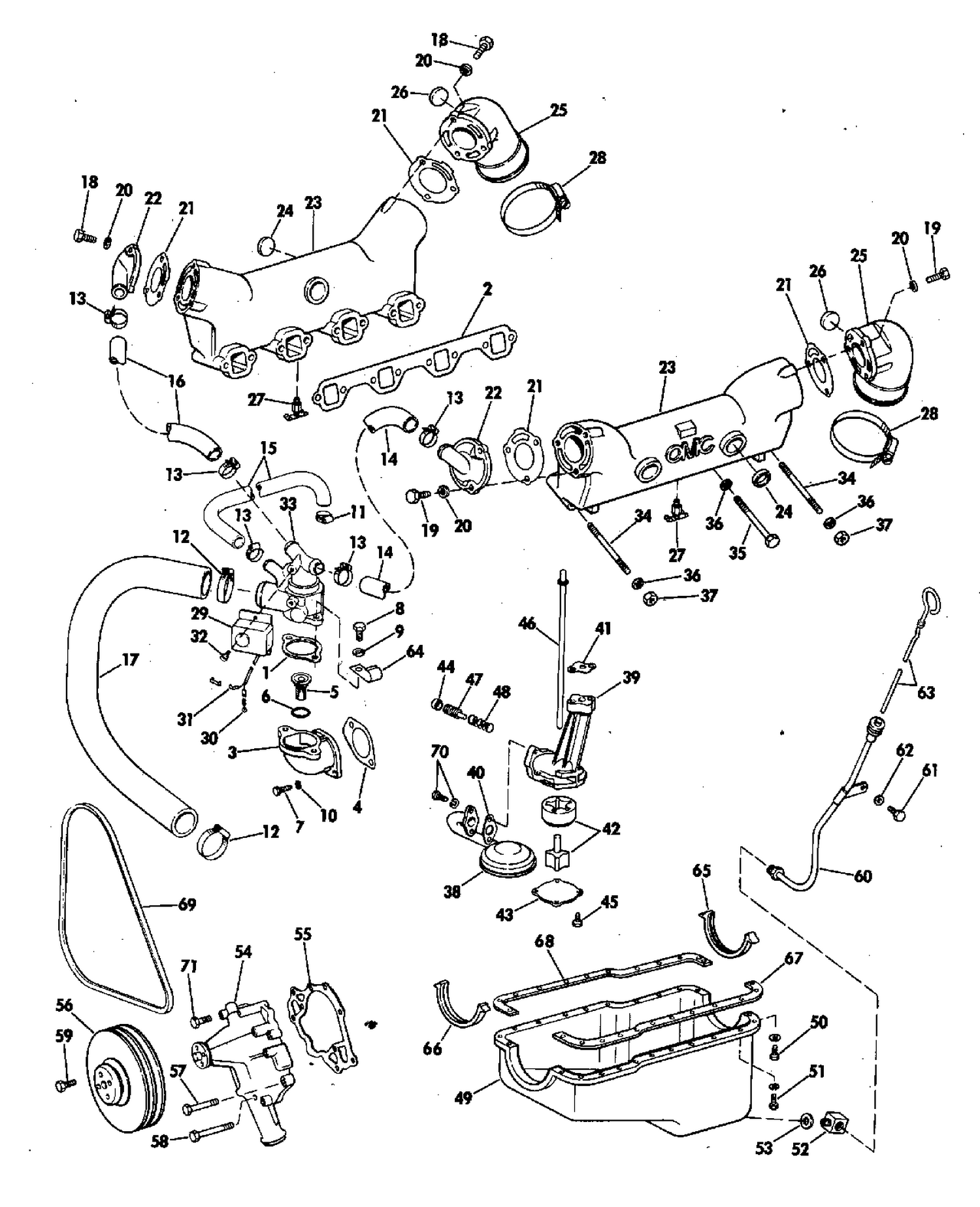

| Ref | Part Number | Description |
|---|
| 1 |
3701777 |
GASKET, Nipple to hsg |
| 2 |
3852455 |
GASKET, Manifold to engine This part replaces 0908717. |
| 3 |
3853245 |
ADAPTER, Thermostat housing This part replaces 0908728. |
| 4 |
3852456 |
GASKET, Adapter to intake This part replaces 0908729. |
| 5 |
0383307 |
TERMOSTAT ASSEMBLY |
| 7 |
0306322 |
BOLT, Water pump |
| 8 |
0306414 |
SCREW |
| 9 |
0120177 |
L'WASHER, Alternator to brkt |
| 10 |
0311388 |
ORING |
| 11 |
0310903 |
CLAMP HOSE TO INT HSG |
| 13 |
0912627 |
CLAMP This part replaces 0313851. |
| 14 |
0908439 |
HOSE, Thermostat housing to end cap, port |
| 15 |
0908730 |
HOSE, Intermediate housing to thermo |
| 16 |
0909230 |
HOSE, Thermo housing manifold This part replaces 0908731. |
| 17 |
0908746 |
HOE,Thermo hsg to water pump |
| 18 |
0552940 |
SCREW, Stern bracket |
| 21 |
0908935 |
GASKET, Manifold cap |
| 22 |
0908719 |
END CAP |
| 23 |
0980959 |
MANIFOLD ASSY, (includes item #27) This part replaces 0980572. |
| 24 |
0315712 |
CORE PLUG |
| 25 |
0980617 |
ELBOW ASSY |
| 26 |
0315712 |
CORE PLUG |
| 27 |
0379757 |
DRAIN COCK |
| 28 |
0980021 |
CLAMP, Boot to trim motor |
| 29 |
0383440 |
BOLTAGE REG CABLE ASSY |
| 32 |
0307920 |
SCREW |
| 33 |
0909255 |
HOUSING, Thermo This part replaces 0908495. |
| 37 |
0908700 |
NUT |
| 38 |
D1TZ-6622-A |
SCREEN, Tube & cover assy |
| 39 |
C2OZ-6600-A |
PUMP ASSY |
| 40 |
C2OZ-6626-A |
GASKET, Screen cover |
| 41 |
C2OZ-6659-C |
GASKET, Intermediate shaft retainer |
| 42 |
B8A-6608-A |
ROTOR & SHAFT ASSY |
| 43 |
B8A-6616-C |
PLATE, Oil pump body |
| 44 |
C2OZ-6A616-A |
PLUG, Body relief valve |
| 45 |
42911-S |
BOLT, Plate to block |
| 46 |
C2OZ-6A618-A |
SHAFT, Oil pump intermediate |
| 47 |
C2OZ-6674-A |
PLUNGER, Body relief valve |
| 48 |
C2OZ-6670-A |
SPRING, Body relief valve |
| 49 |
D3UZ-6675-B |
OIL PAN |
| 50 |
377825-S |
BOLT, Oil pan, 5/16''-18 x 7/8'' |
| 51 |
377824-S |
BOLT, Oil pan, 1/4''-20 x 9/16'' |
| 52 |
0908484 |
ELBOW OIL DRAIN PAN |
| 54 |
C9JE-8501-A |
WATER PUMP |
| 54 |
D4JE-8501-BA |
WATER PUMP |
| 55 |
C5AZ-8507-B |
GASKET, Water pump |
| 56 |
C6TZ-8509-C |
PULLEY, Water pump |
| 56 |
D2JL-8509-E |
PULLEY, Water pump |
| 57 |
383765-S |
BOLT, Water pump & cover |
| 58 |
300958-S |
BOLT, Water pump & cover |
| 59 |
42908-S36 |
SCREW, Water pump pulley |
| 60 |
0980614 |
TUBE & BRACKET ASSY, Dip stick |
| 61 |
0310336 |
SCREW, Bracket tube oil drain |
| 62 |
0303259 |
WASHER, Screw bracket |
| 63 |
C6TZ-6750-D |
OIL LEVEL INDICATOR |
| 65 |
C9JE-6722-A |
SEAL, Pan, front |
| 66 |
D3OE-6722-AA |
SEAL, Oil pan |
| 67 |
C2OE-6710-B |
GASKET, Pan, starboard |
| 68 |
C2OE-6711-B |
GASKET, Pan, port |
| 69 |
0311606 |
BELT |
| 70 |
358719-S |
SCREW & WASHER PICK UP TUBE |
